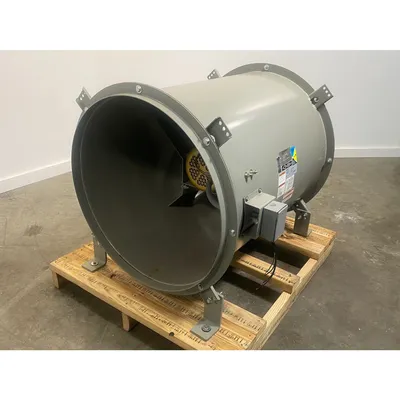

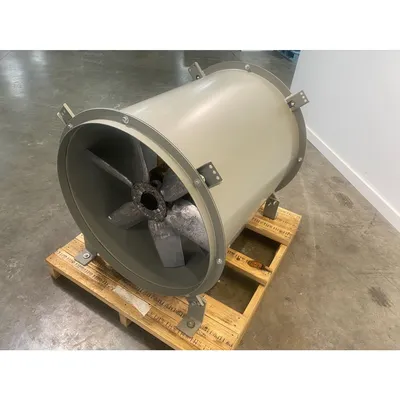

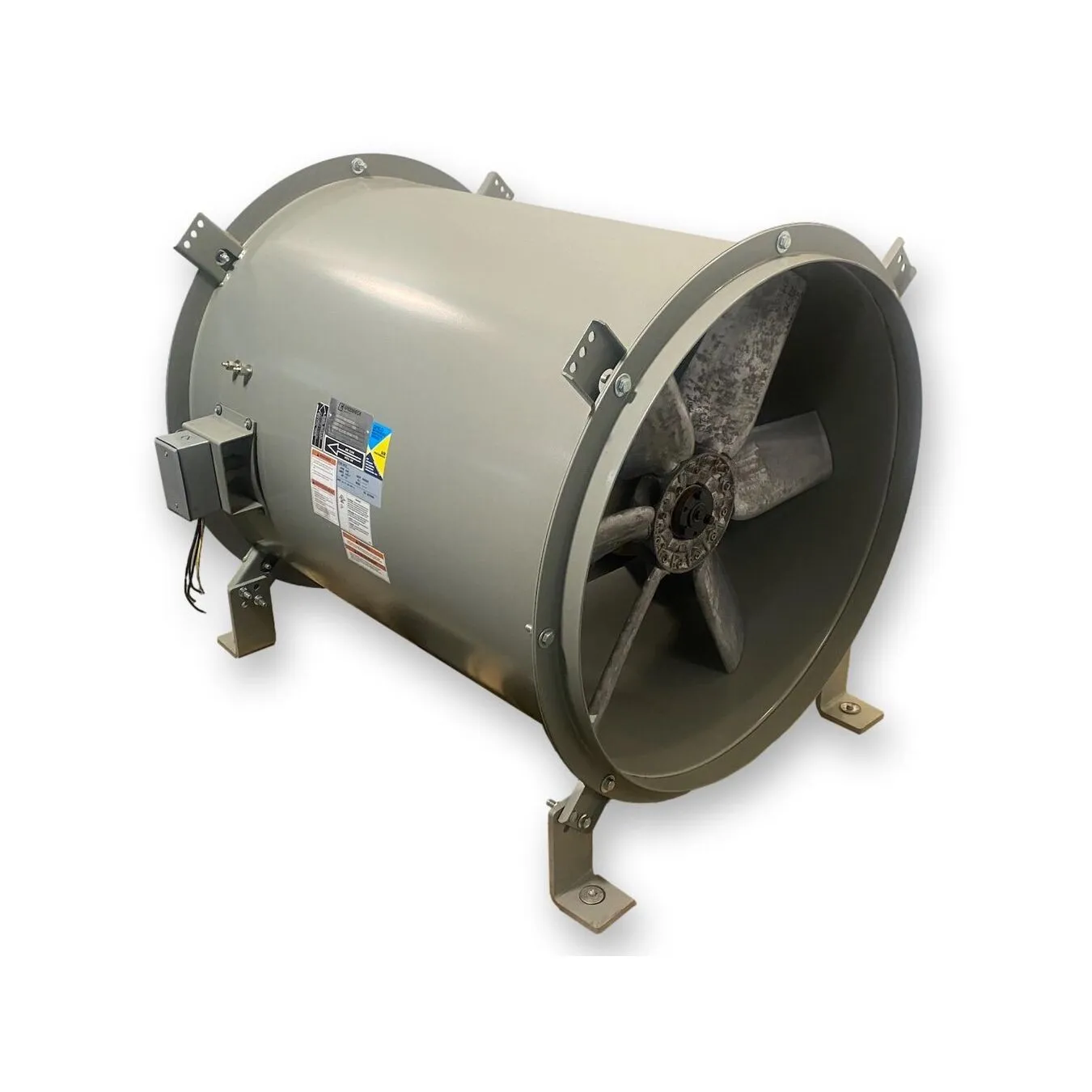

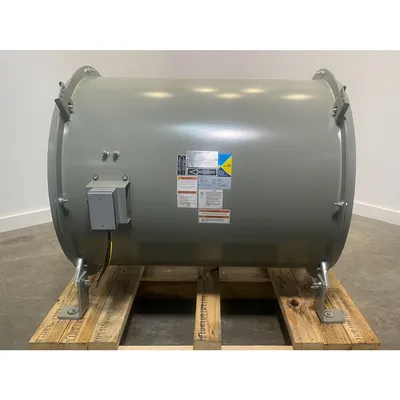

NEW GREENHECK AX-72-190-0621-X GSF-17

S/N 15267787 18A
High performance axial fan; low sound.
Model AX-72-190-0621-X GSF-17
Arrangement 4

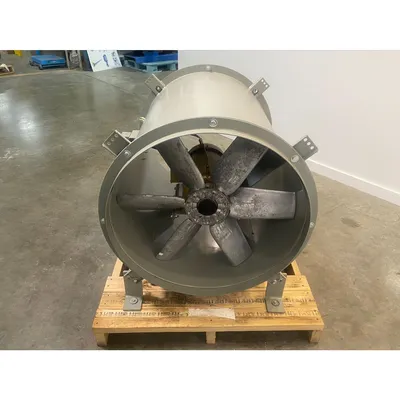

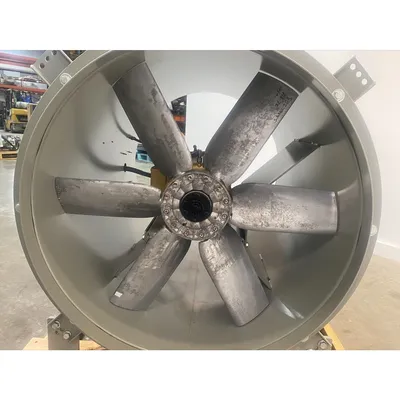

28"Ø Aluminium fan impeller. The fan housing is constructed of rolled steel with a continuous seam weld.
The housing is coated with a minimum of 3 mils of Permatector, an electrostatically applied and baked polyester urethane. Finish color is gray.

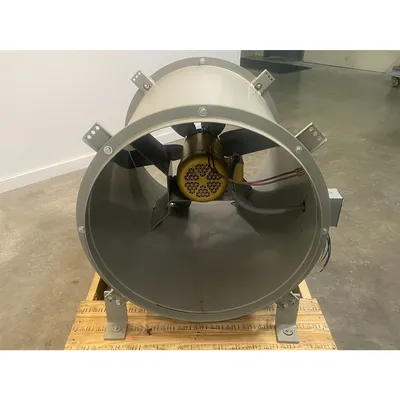

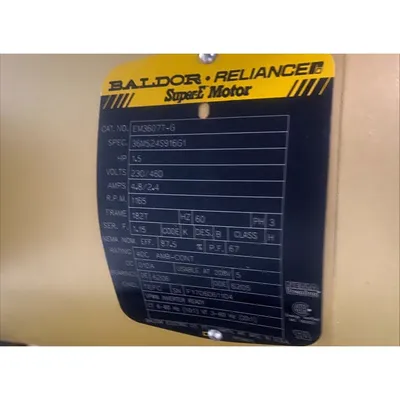

1.5HP Baldor inveter ready motor, 1165 RPM, 208-230/460 Volt, 182T frame.
Greenheck's high performance axial fan, Model AX, are
direct driven axials designed for inline air ventilation in
commercial or industrial buildings. The casing design and
construction are well suited to indoor or outdoor applications
and can be easily installed in ducted or non-ducted systems.
The AX is designed to reduce operating costs with improved
efficiency. Additionally, the AX blade design offers inherently
lower sound levels than other axial fans
Shipping info: One crate, 45x45x45"
Weight = 364 LBS.

FOB: Millwood, WV 25262

Item: 19384      Model :   AX-72-190-0621-X GSF-17
 MFG: Greenheck
 CFM: 8823
  Static Pressure: .38
