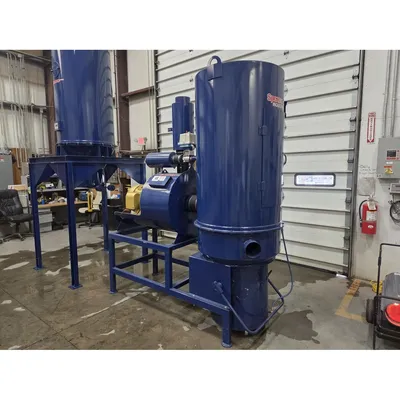

USED SPENCER SD-540B-MOD

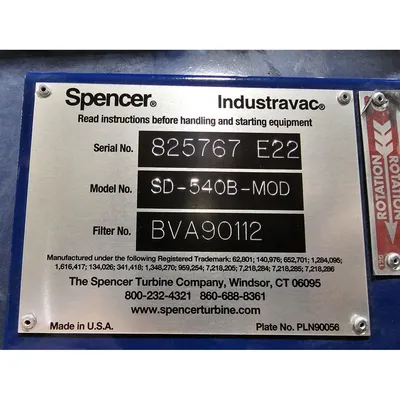

Serial No. 825767

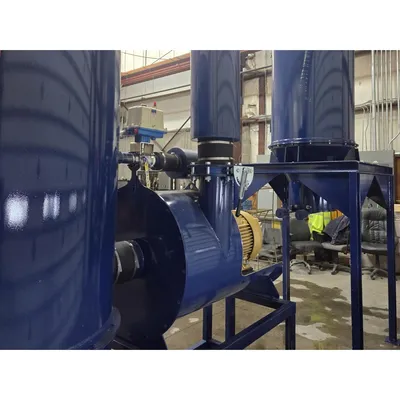

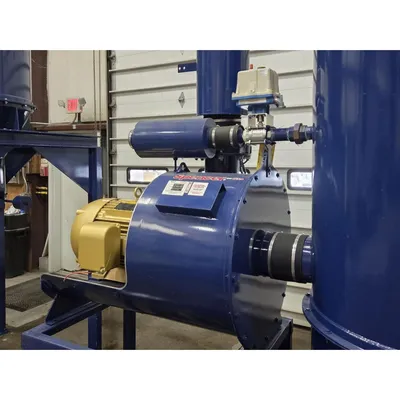

Vacuum Producer: 40HP Multi-stage centrifugal with bleed assembly, 8"Ø manual blast gate & outlet silencer
Volume: 820 SCFM @ 8.9" HG vacuum (70°F Inlet Temperature)
Vacuum Connections: 6"Ø sleeve (primary) & 1½"Ø hose connection (secondary)

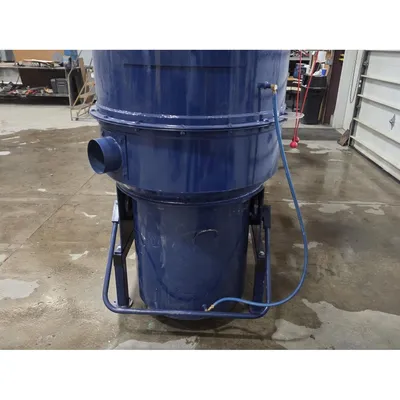

Bag Separator: 36"Ø manual shaker type with 7.5 cu/ft. capacity dirt can.
Filter Bags: 5"Ø X 48", qty. of 24, area of 129 sq/ft

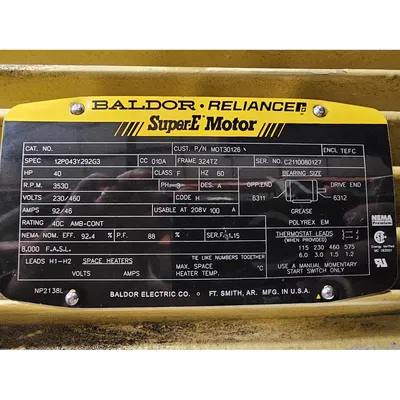

Supply: 460VAC, 60Hz, 3ph, 3,530RPM, 92/46Amps

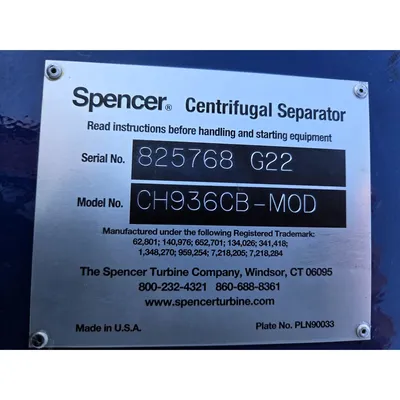

System includes a 36"Ø twin inlet centrifugal pre-filter:
Air Inlets: 3.5"O.D.
Air Outlet: 6"O.D
Solids Discharge: 18"Ø bottom dump valve with counter-weight.
*Includes system control panel, vacuum wands w/hoses, and tool cage*

FOB: Millwood, WV 25262

Item: 21478      Model :   SD-540B-MOD
 MFG: Spencer
 HP: 40
