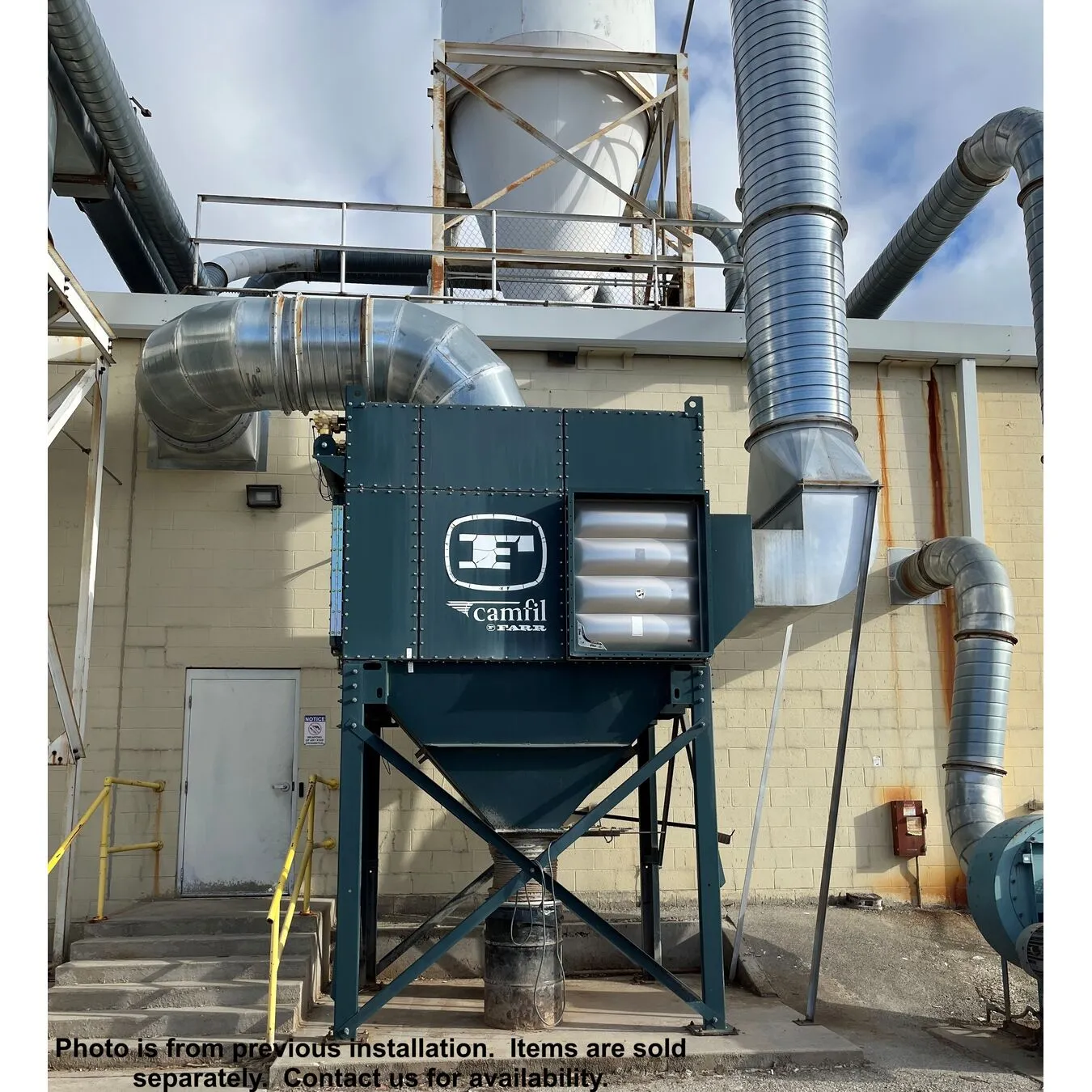

USED CAMFIL FARR GS-20
Overview
Description

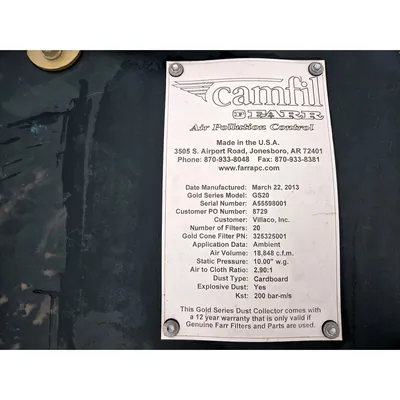

Serial No: A55598001
The Gold Series modular collector features vertical cartridge filters with cross-flow technology.
Constructed of mild steel with Farr green powder-coat finish.
Rated Flow: 18,848CFM @ 10.0 In. HG
Pilot solenoid valve enclosure, 12VDC.
Housing contains a quantity of 20 gold cone cartridge filters (bottom change-out).
Filter Cartridge Size: Ø15.1" X 39"L
Air Inlet: Plenum, side-mounted, 60"W X 24"H opening
38"Ø top-mounted clean air outlet flange (centrifugal fan not included).
Solids Discharge: Tandem dust discharge hoppers with slide gates, drum covers and flex hose.

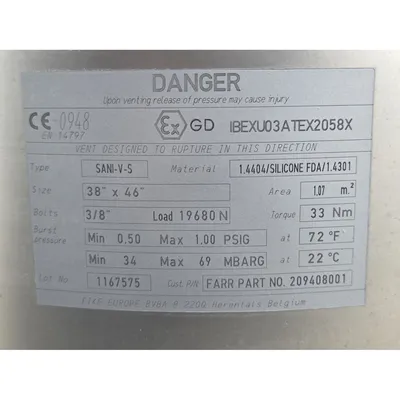

Side-mounted explosion vent, 38" X 46", 1.0PSIG @ 72°F burst rating.
Housing measures 85"W X 105"L X 182.5" total height.

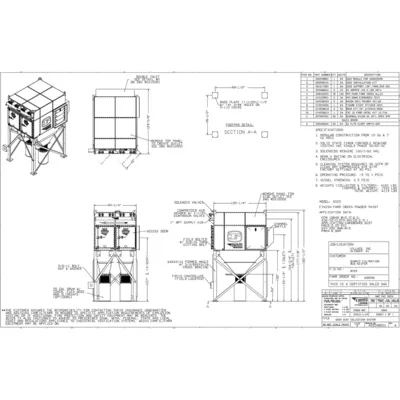

General arrangement drawing on file (DWG and PDF).
FOB: Millwood, WV 25262
Specifications
Item: 21338 Model : GS-20
MFG: Camfil Farr
CFM: 18848
Capacity (sqft): 7,000
