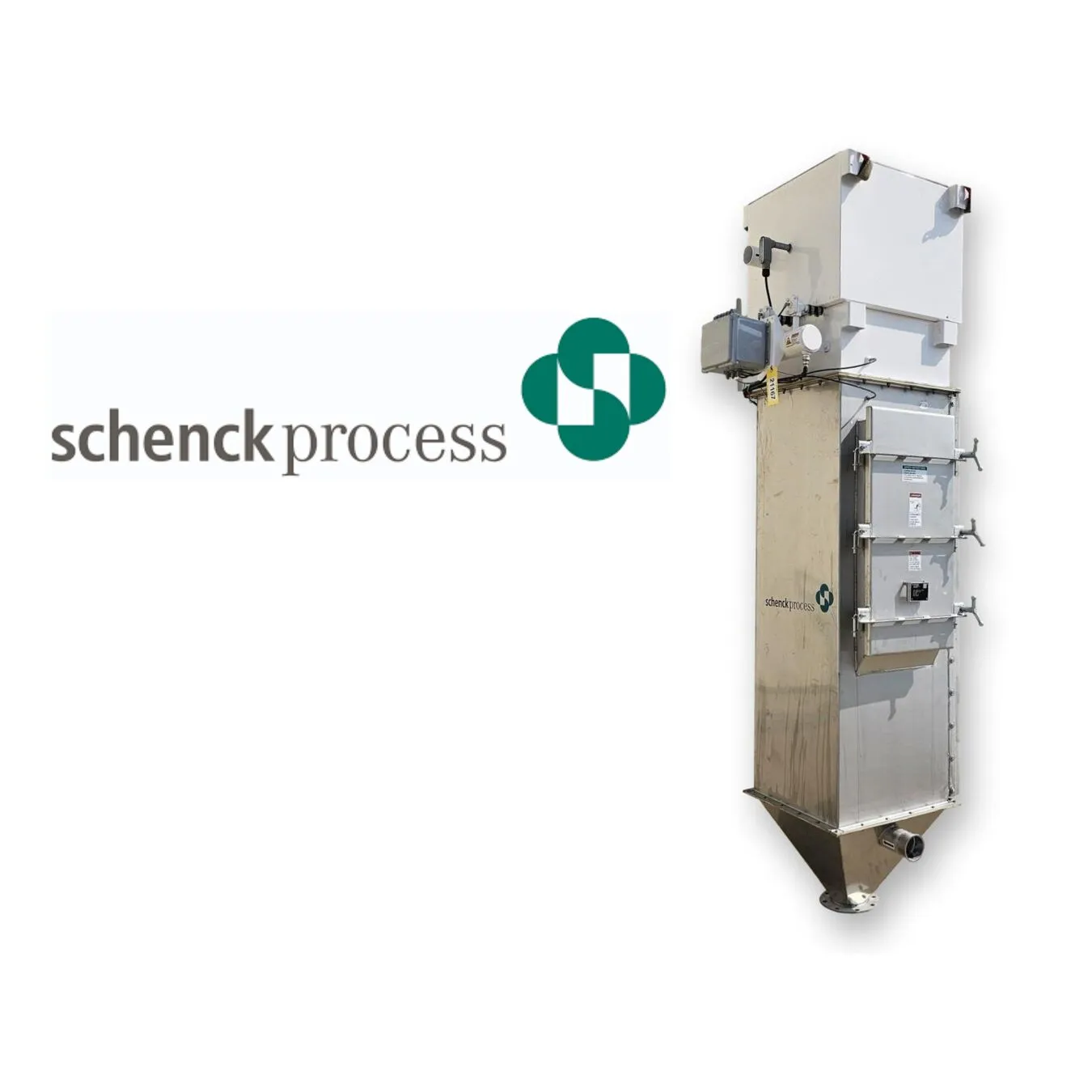

USED SCHENCK PROCESS 72AVS9

Style II. Stainless Steel Material contact parts.

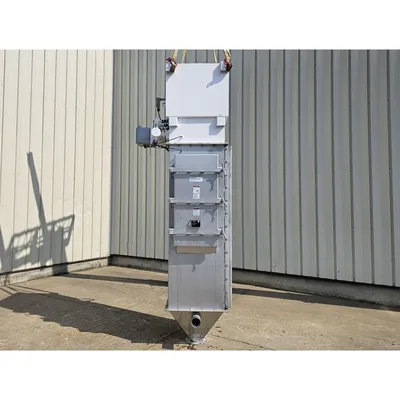

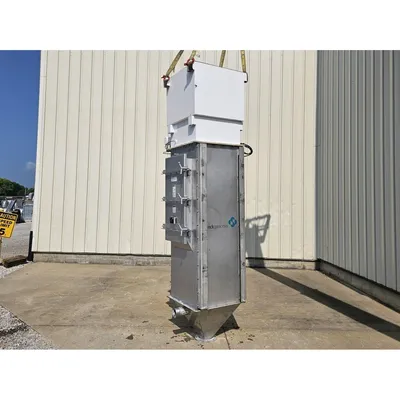

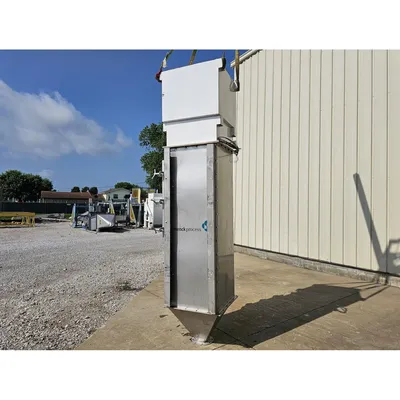

AVS square body pulse-jet cleaning bag filter with 60° bottom hopper.
Unit is rated for 17" WC (1.25"HG) vacuum
Housing is 304 stainless steel 26" square with a mild steel clean air plenum.

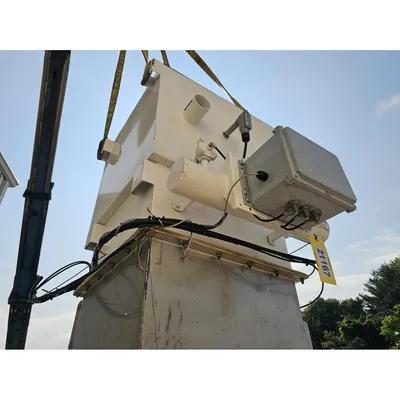

The acoustical clean air plenum houses a 2HP, 3450RPM, SB12 blower (865CFM @ 6"S.P.).

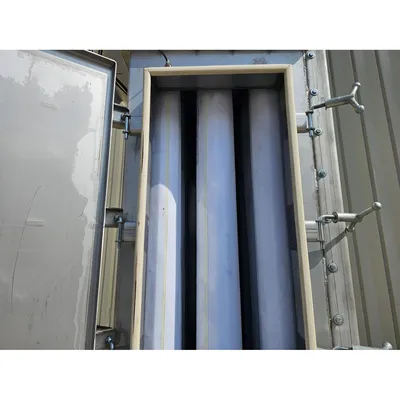

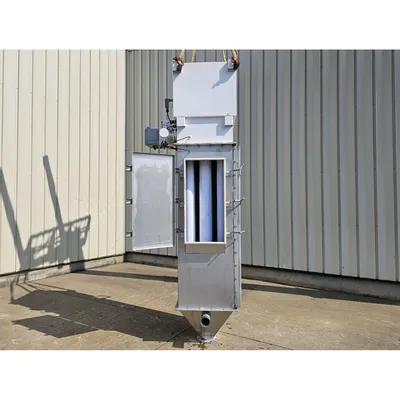

Houses nine bag filters (9.1 sq/ft each), bottom load, side door access.
Dirty Air Inlet: Ø4" Jacob flange
Clean Air Out: Ø3.5" sleeve
The filter unit is installed with side mounting brackets.

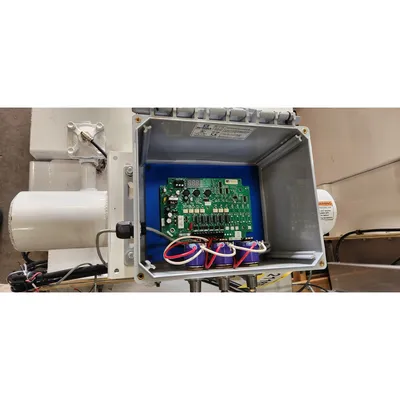

Electrical Service: 460V, 60Hz, 3ph (Blower); 120VAC (Pulse Timer)
Total Height: 132"

FOB: Millwood, WV 25262

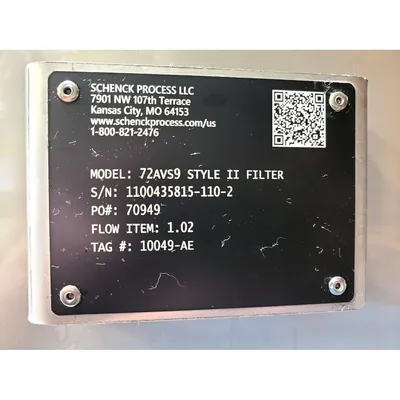

Item: 21167      Model :   72AVS9
 MFG: Schenck Process
 CFM: 865
  Capacity (sqft): 81.9
