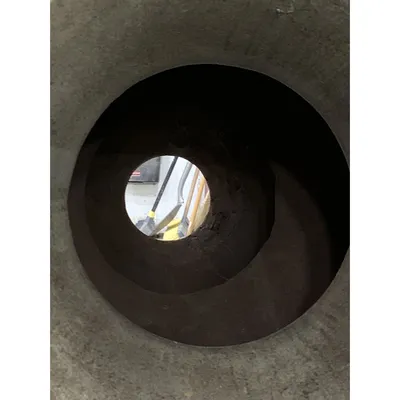

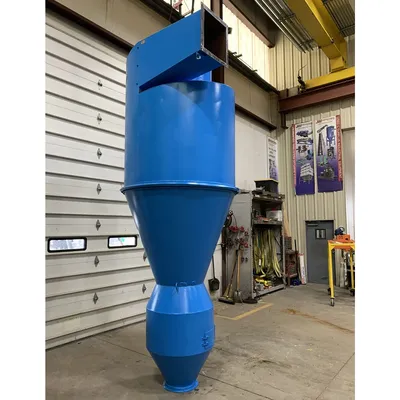

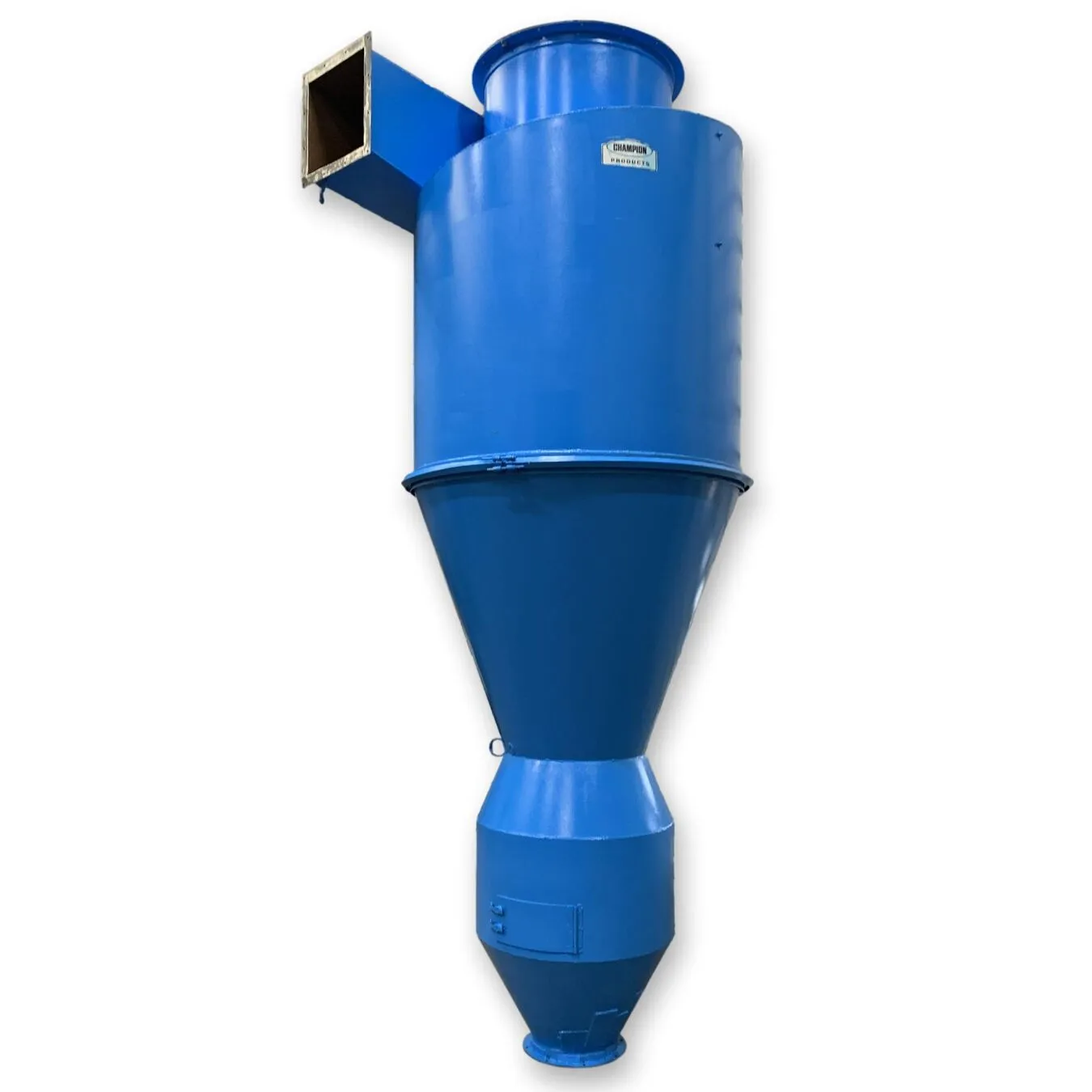

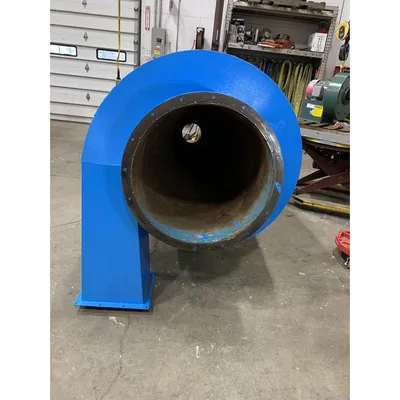

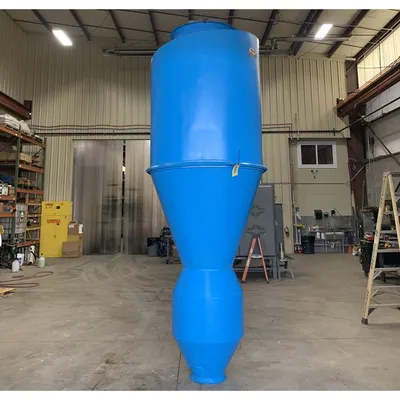

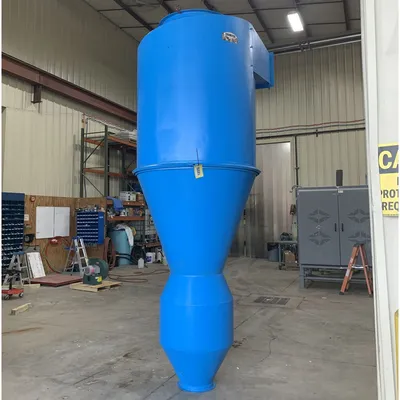

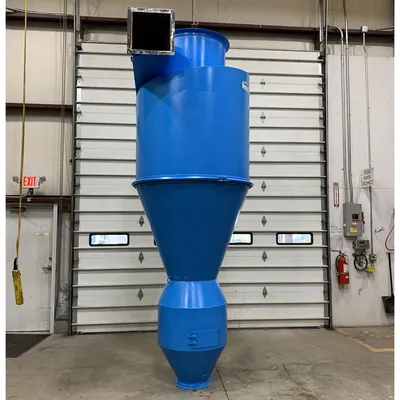

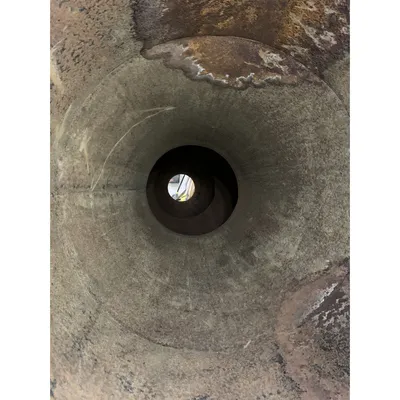

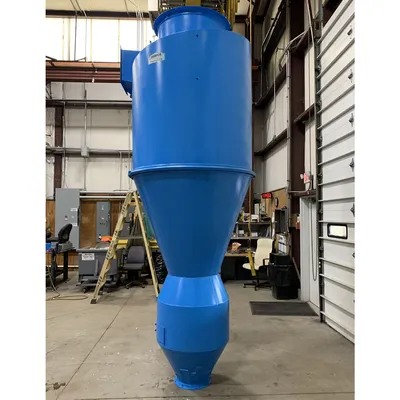

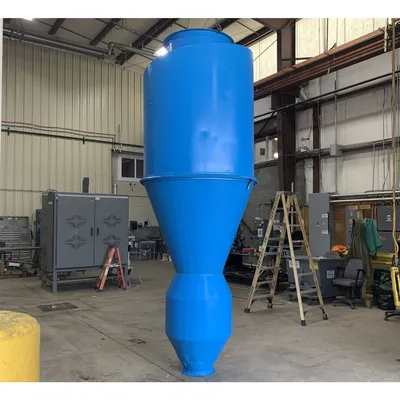

Used 52" diameter Cyclone Separator Collector L.H.

All mild steel construction, welded 14Ga. sheet

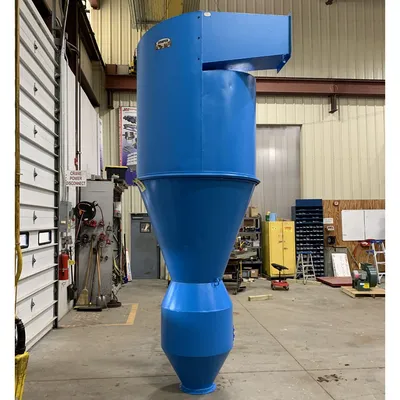

Airflow entry is clockwise direction - left-hand entry, 14" square flange connection
52" diameter cyclone body with removable 70° conical section with vortex break
Cone section detaches from body with a ring band clamp
Bottom solids outlet: Ø13.25" flange
Separated gas outlet: Ø30" flange
Total height of assembled unit: 153"
Weight = 950 LBS.

FOB: Millwood, WV 25262

Item: 18956

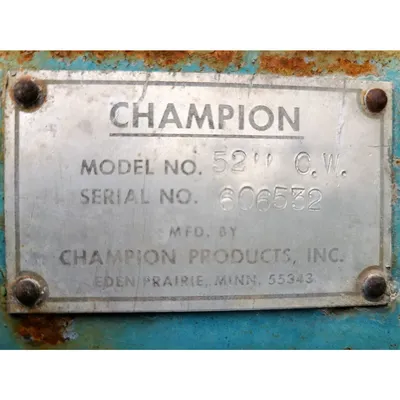

 MFG: Champion Products Inc
 Diameter (inches): 52
