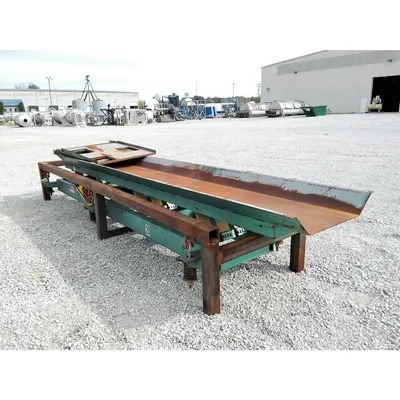

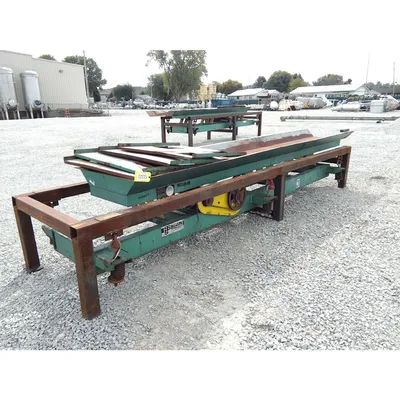

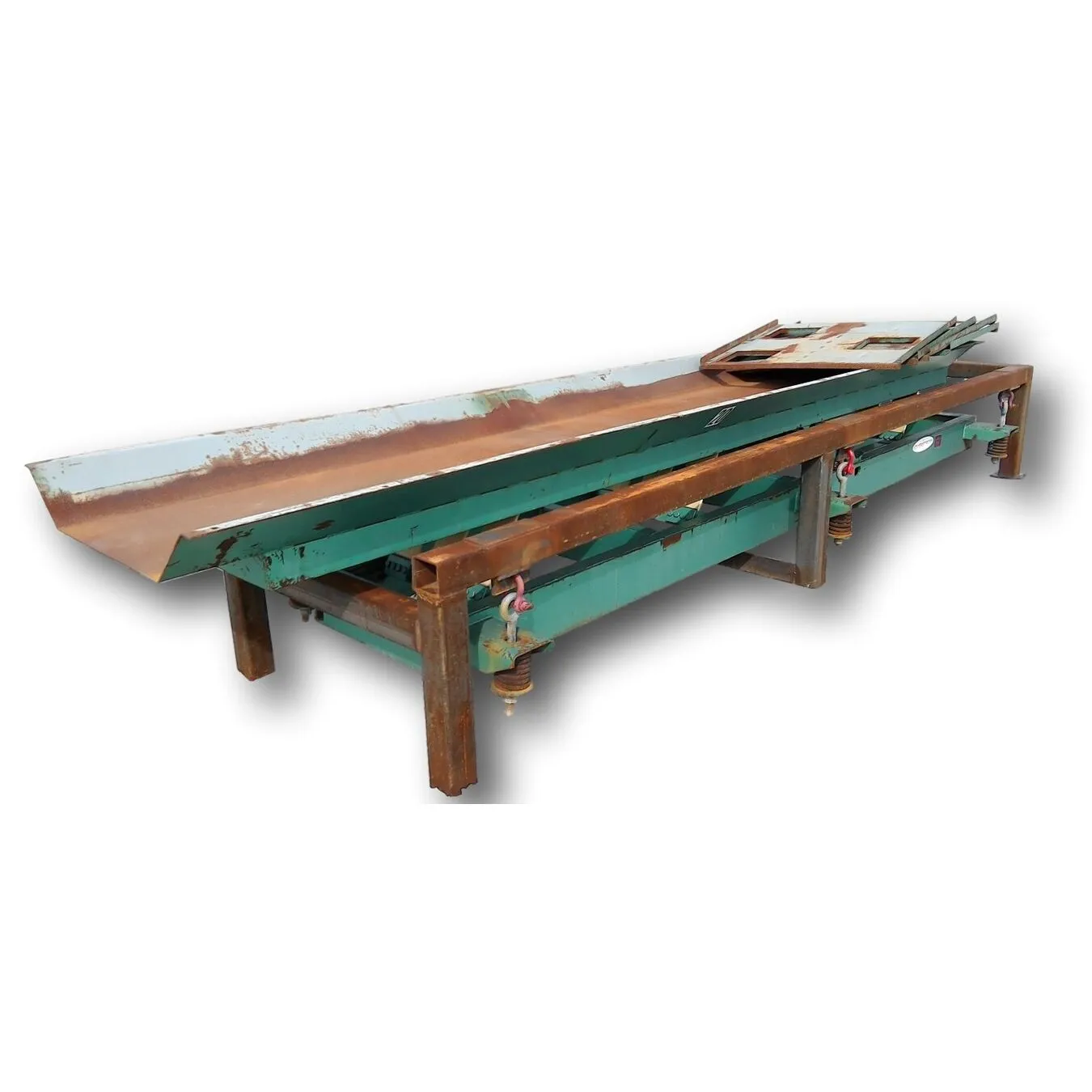

USED TRIPLE/S DYNAMICS INC. TBL-24

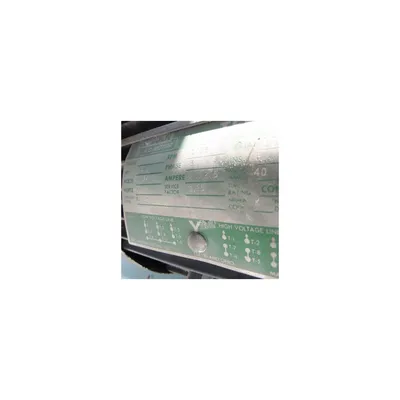

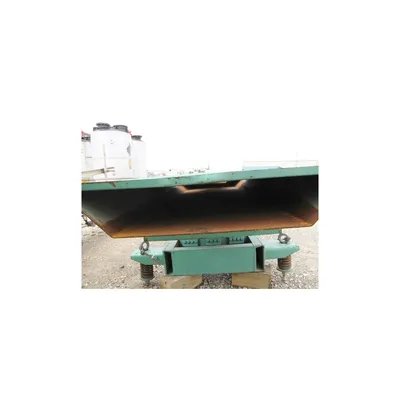

SERIAL NUMBER: C-7628. ALL CARBON STEEL CONSTRUCTION, ABOVE FRAME FLARED TRAY WITH MULTIPLE 10" SQ. INLETS AND OPEN-ENDED DISCHARGE. POWERED BY A LINCOLN AC MOTOR: 1.5 HP, 230/460 V, 1735 RPM, 5.0./2.5 AMP, 60 HZ, 3-PHASE. BASE FRAME DIMENSIONS: 50"W X 176"L. THIS IS A BALANCED NATURAL FREQUENCY CONVEYOR DESIGNED FOR SUSPENSION ABOVE 5' FROM FLOOR ELEVATION. GENERAL ARRANGEMENT DRAWINGS, INSTALLATION & OPERATION MANUAL AVAILABLE. Overall height = 38".
Video Available.

FOB: Millwood, WV 25262

Item: 12323      Model :   TBL-24

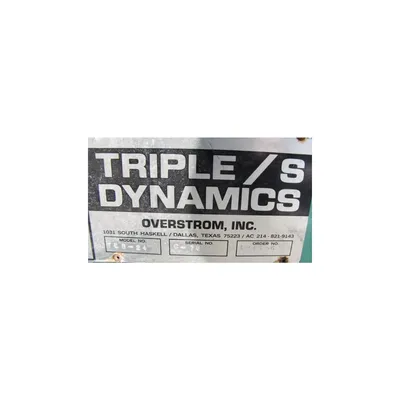

 MFG: Triple/S Dynamics Inc.
 Width (inches): 24
