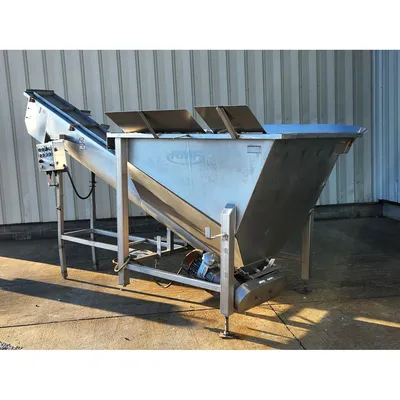

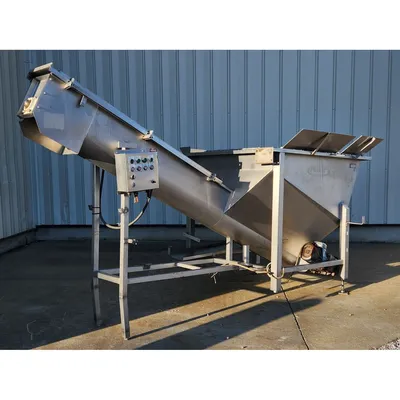

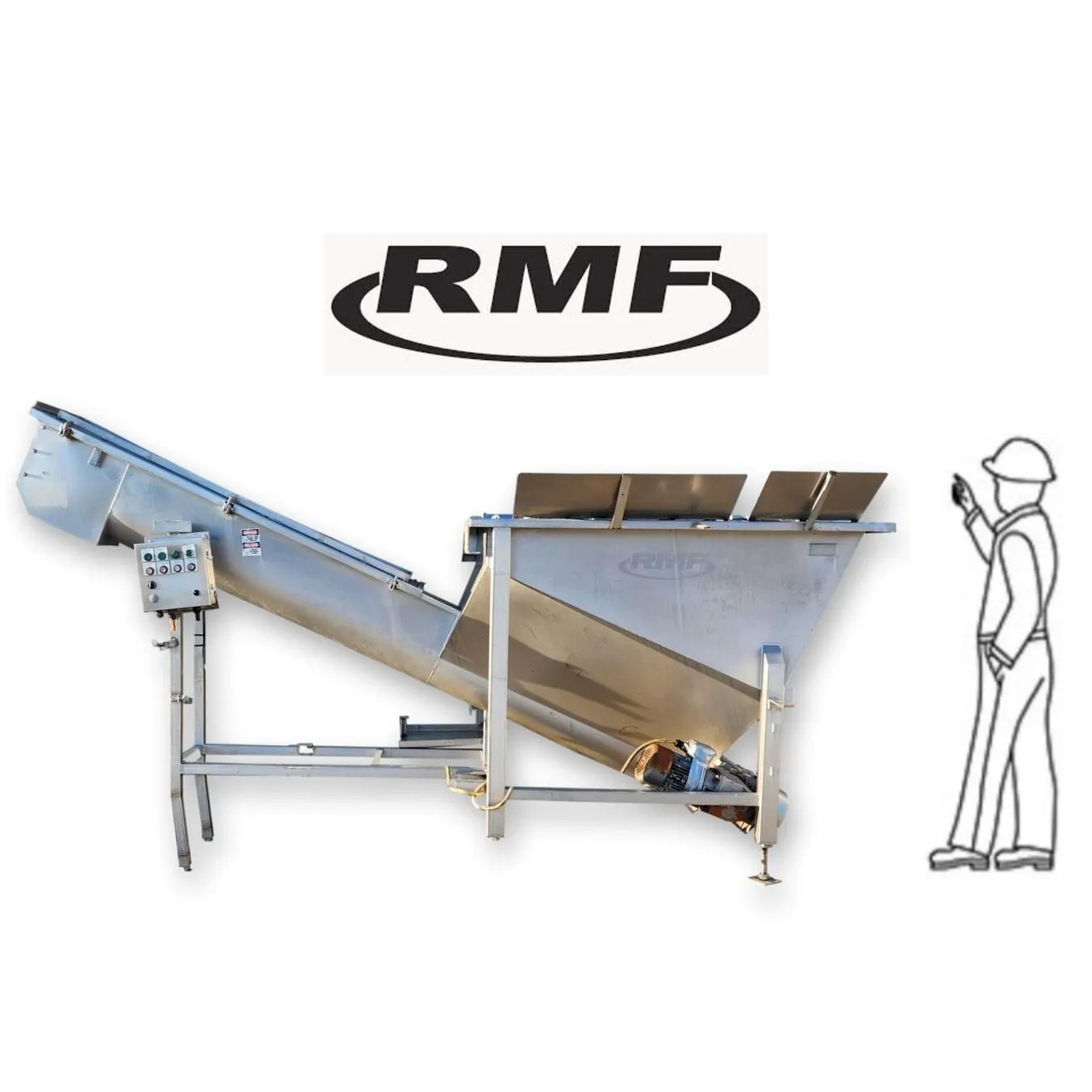

USED RMF STEEL PRODUCTS CO. SCA1210

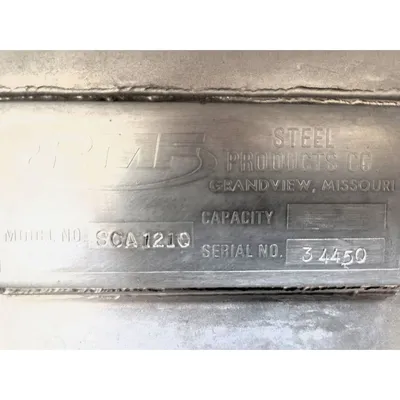

Serial No: 34450
Stainless steel construction.
Flanged U-trough with 48"W X 64" infeed hopper with drop-out chute discharge.

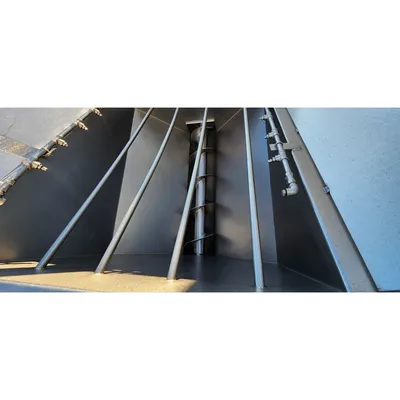

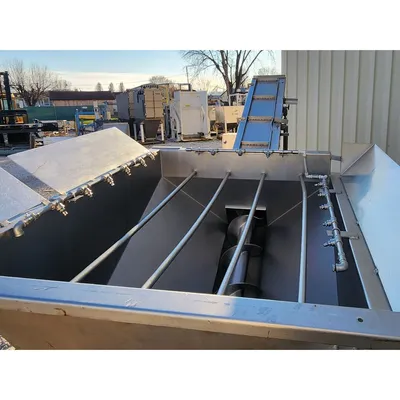

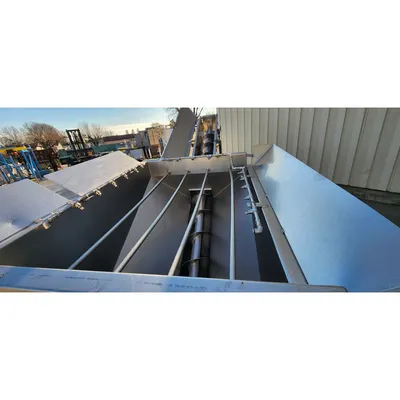

The hopper is installed with safety bars and spray nozzles.
Full length auger with end bushings, standard pitch flighting and hinged cover.

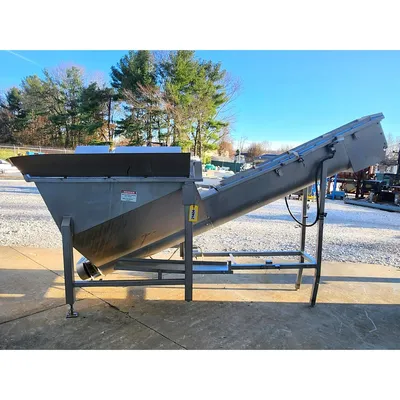

Fixed 25° incline, loading height of 54", height at discharge is 62.5".
Welded stainless steel frame.
Gearmotor and chain drive. For the demo video we used 460V, 3ph, 60Hz. (No nameplate on motor)
Overall Height: 88" (additional clearance req'd. for panel swing)

FOB: Millwood, WV 25262

Item: 21424      Model :   SCA1210
 MFG: RMF Steel Products Co.
 Screw Dia. (inches): 12
  Length (feet): 8
