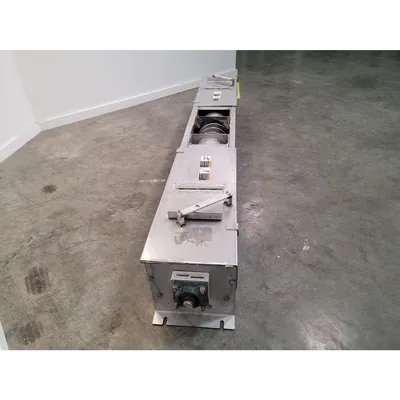

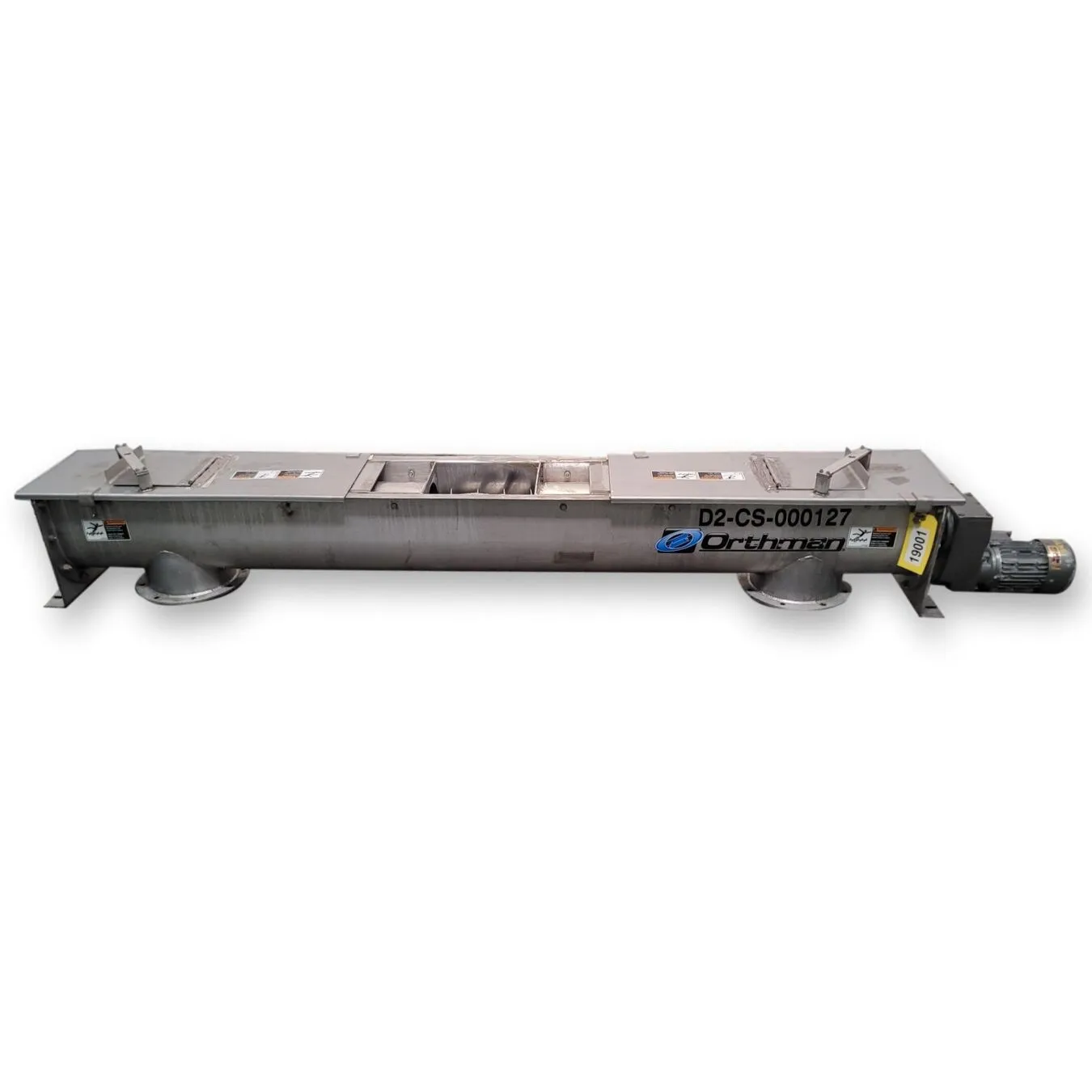

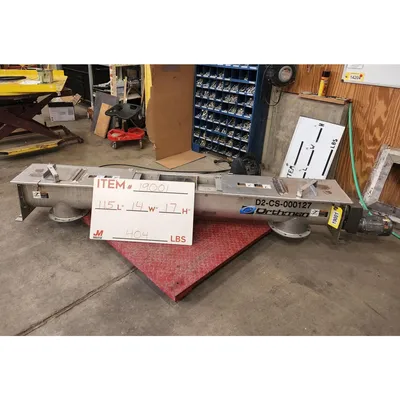

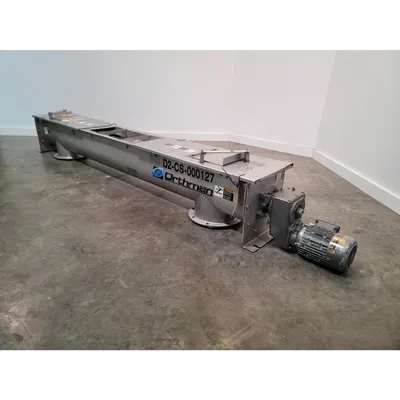

Used 9" dia. Orthman Stainless Steel Screw Feeder Conveyor - Center Feed

Stainless steel U-trough with foot-mounted end plates
Trough length is 72" between the discharge centers, 96" length between end plates with
Two sections of trough covering with inspection doors and 18" long shrouds

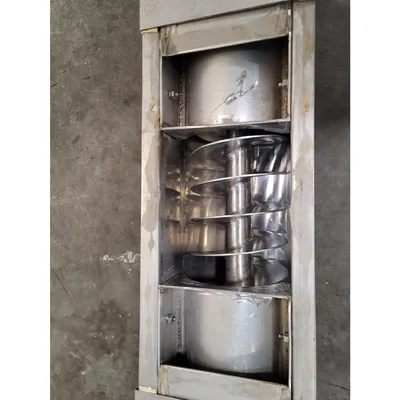

Auger flighting is constructed in a single direction and has a shorter pitch at inlet (will require a polarity reversing switch)
Product inlet is positioned at the trough center, measures 10" X 12"
The discharges are 10"Ø flanged
Driven with a 0.75HP helical gearmotor (inverter-duty)
Supply: 230/460V, 60Hz, 3ph
Demonstration video on file.
Auger speed = 40 RPM.

FOB: Millwood, WV 25262

Item: 19001
 MFG: Orthman
 Screw Dia. (inches): 9
  Length (feet): 8
