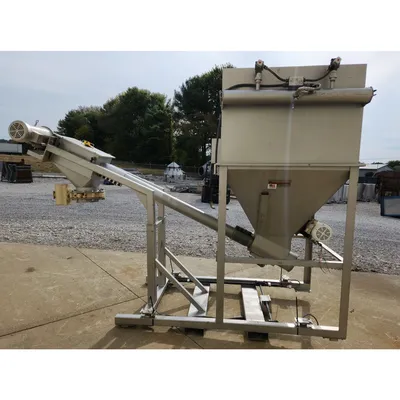

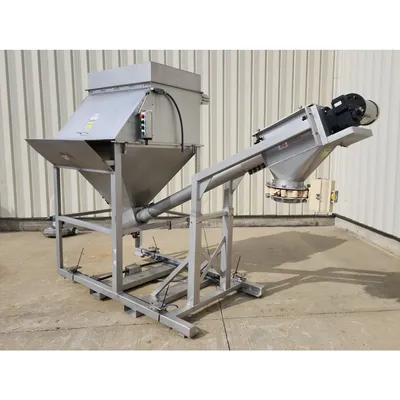

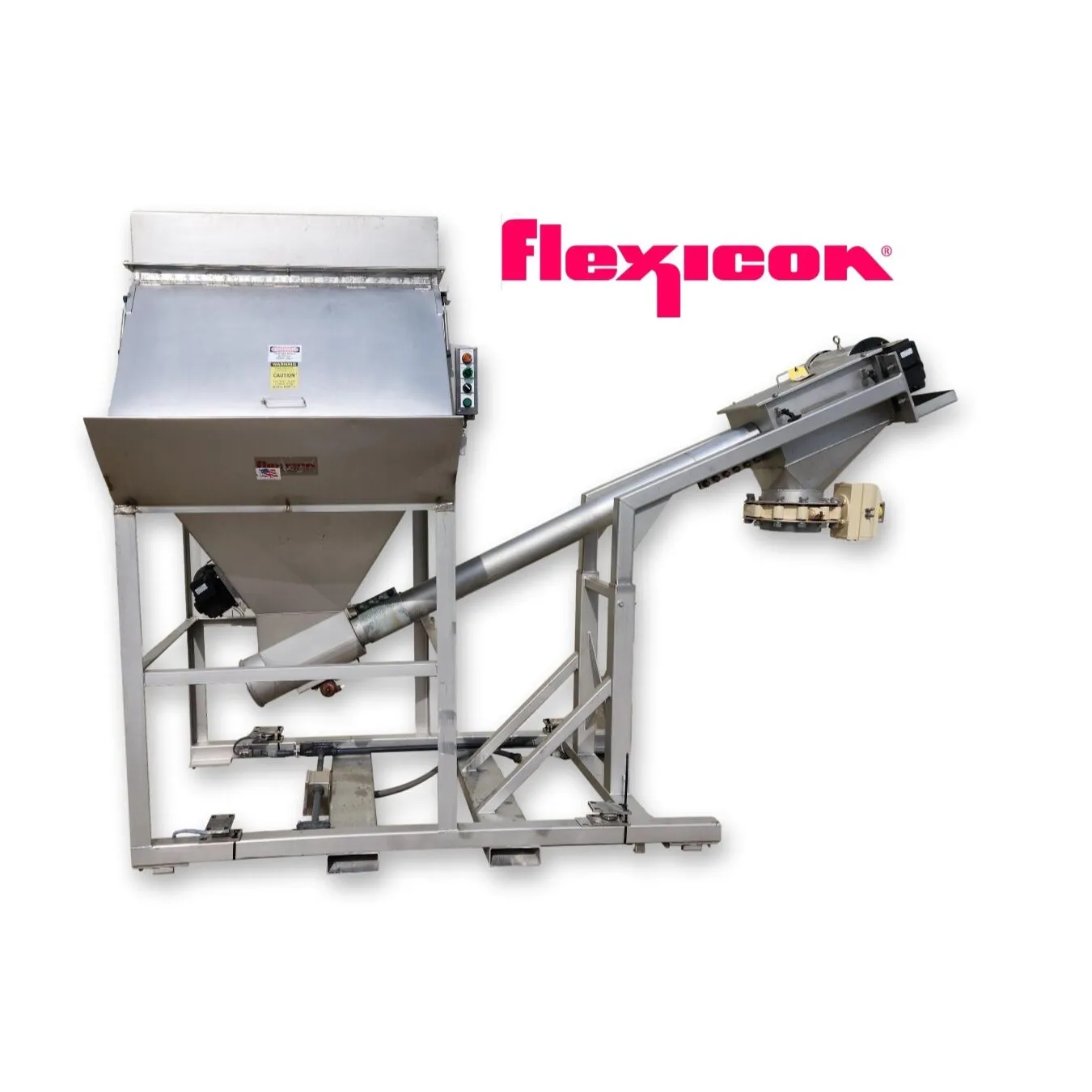

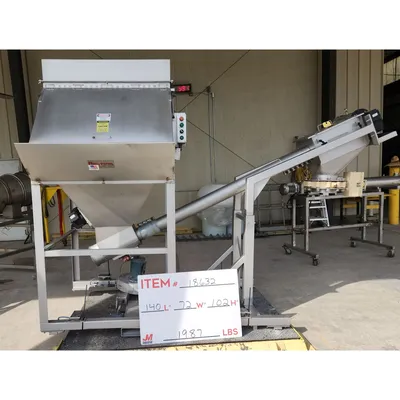

Used Flexicon Combo Bag Dump Weigh Batching and 5" Discharge Conveyor
Overview
Description
All stainless steel construction

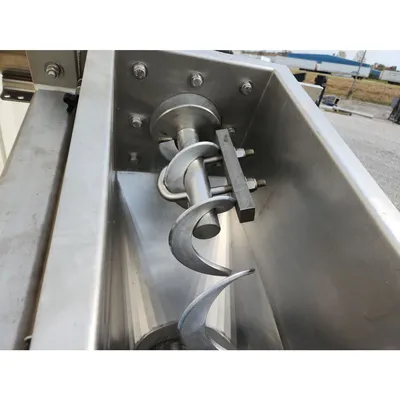

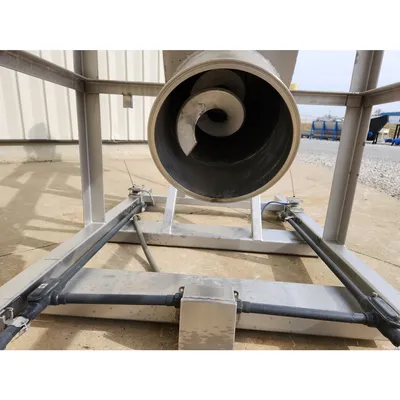

Configured for manual dumping of bulk materials from bags, boxes, drums and other containers, then discharges bulk material with an integrated 5"Ø shaftless helical auger conveyor

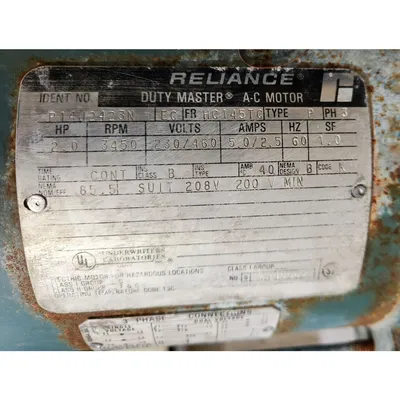

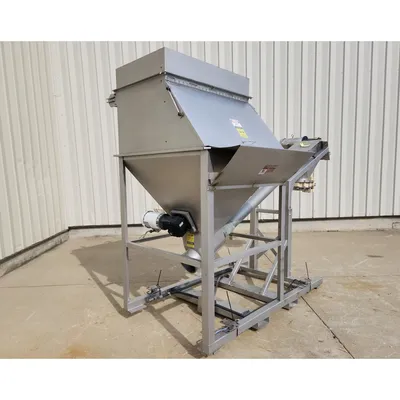

Elevated dump hopper is installed with safety grate, dust curtain, and 2HP high velocity vacuum fan

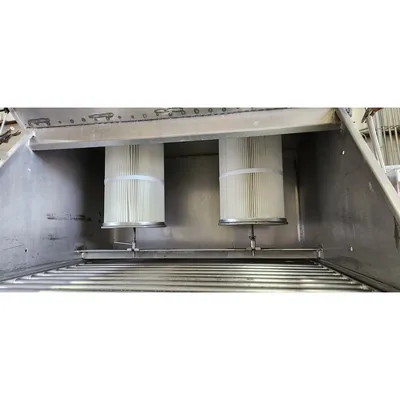

Airborne dust from the operator's atmosphere is drawn into two, upper cartridge filters (filters not included)

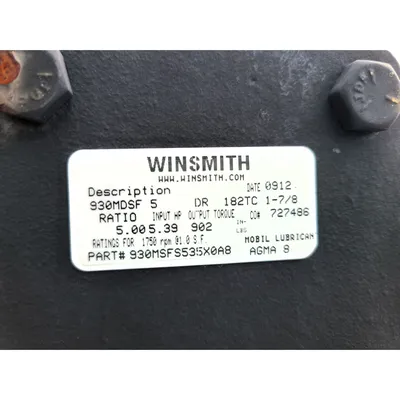

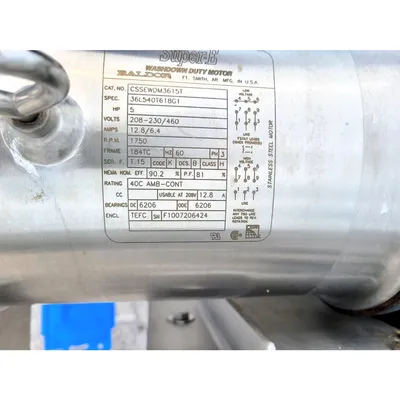

Auger Drive: 5HP gearmotor

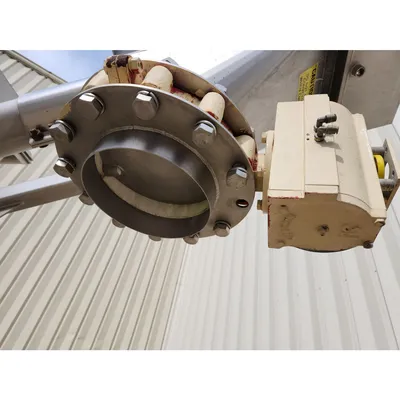

Product is discharged thru a 10"Ø pneumatic butterfly valve shut-off
Support frame area: 48.5" X 90"
Total Height: 99"
Discharge Height: 50" approx.
General Arrangement Drawing on file
Overall dimensions: 138" L x 61" W x 96' H.
Weight = 1,688 LBS.
FOB: Millwood, WV 25262
Specifications
Item: 18632
MFG: Flexicon
Screw Dia. (inches): 5
Length (feet): 8
