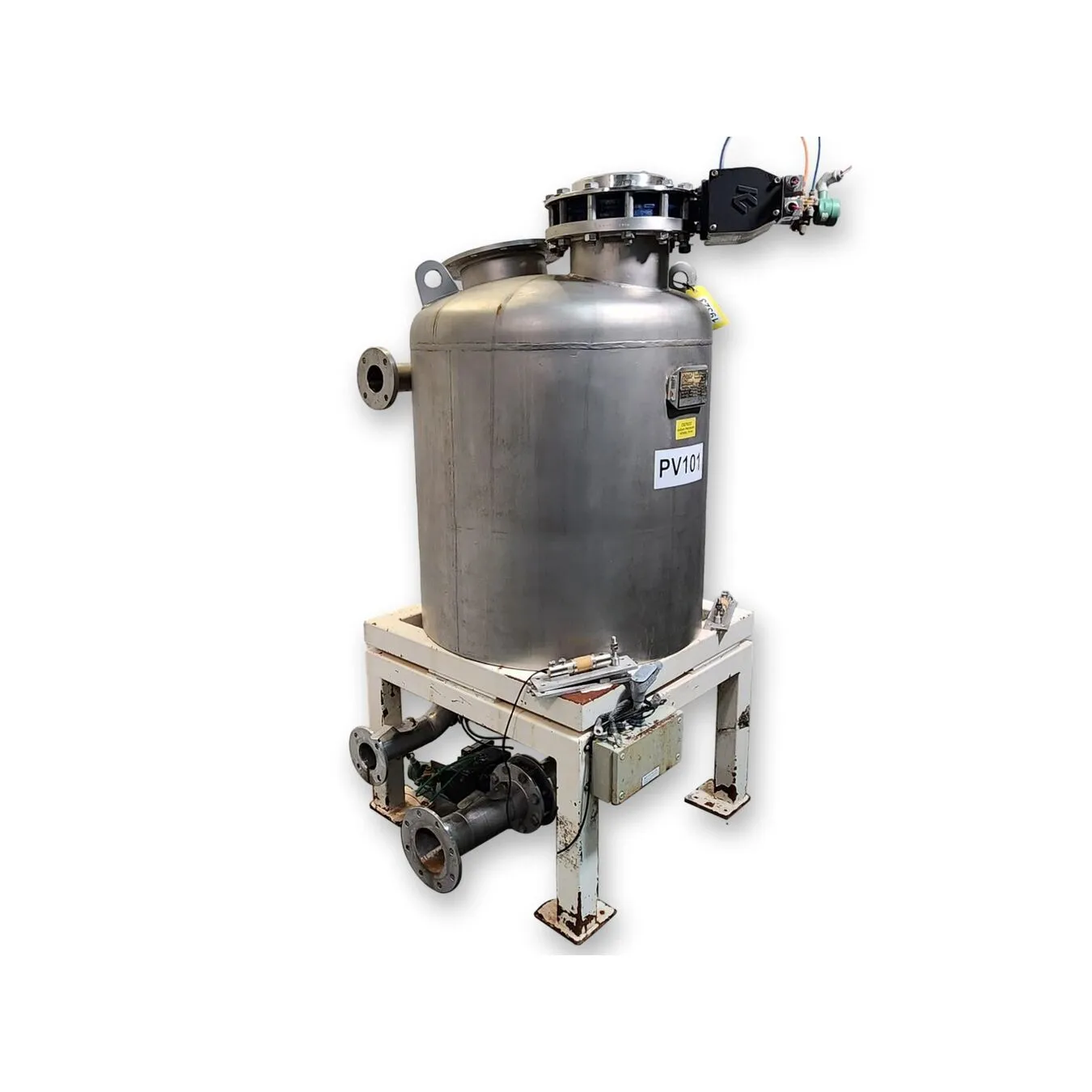

Used Dietrich Remelt Stainless Steel Pneumatic Conveying Dense Phase Transporter

USD $9,000.00
1 available
Overview
Manufacturer:
DIETRICH REIMELT
Stock #:
19323
Description

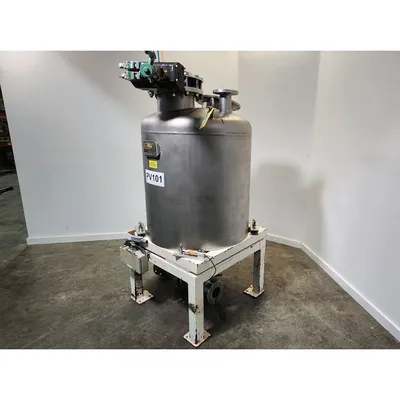

Vessel is constructed of all stainless steel- 3" diameter with 19" straight vertical side (skirted) & dished head top

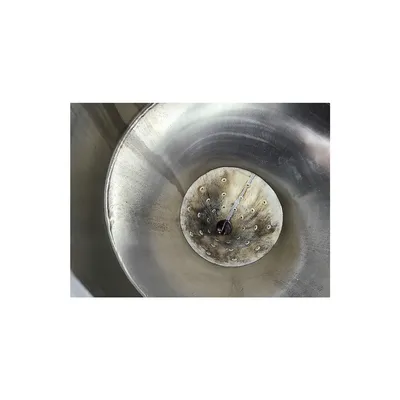

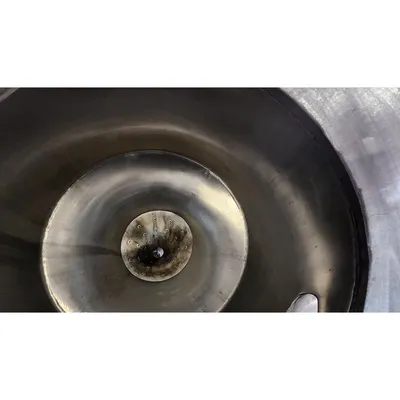

Product is gravity fed into a 60° (from horiz.) pneumatic fluidized bed hopper
Vessel Wall: 0.150"
Working Capacity: 17.6 cubic foot
Max. Pressure: 29PSI
Max. Temperature: 122°F

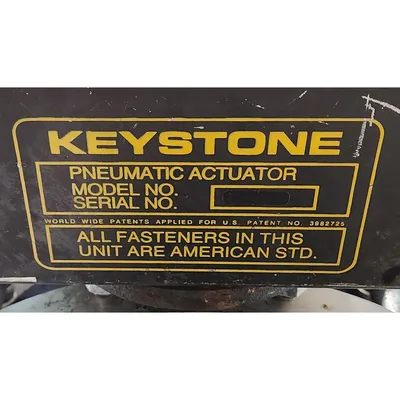

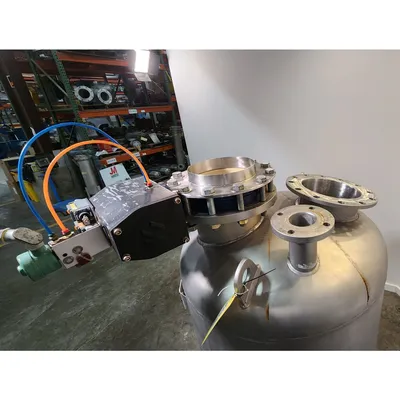

Product Inlet: 10"Ø flanged with pneumatic butterfly valve

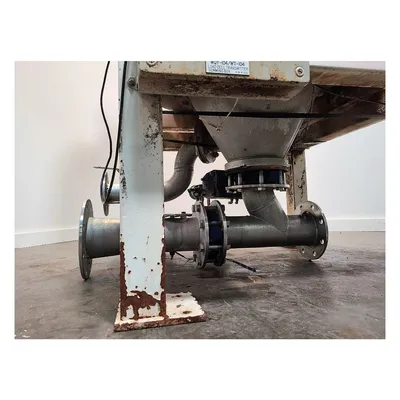

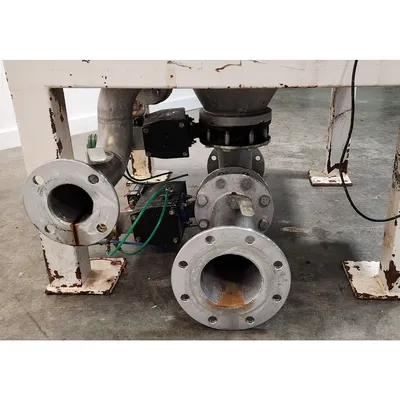

Conveying Line Connections- Inlet: 5"Ø flanged; Outlet: 4"Ø flanged

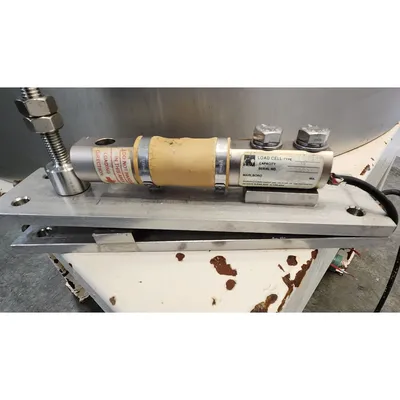

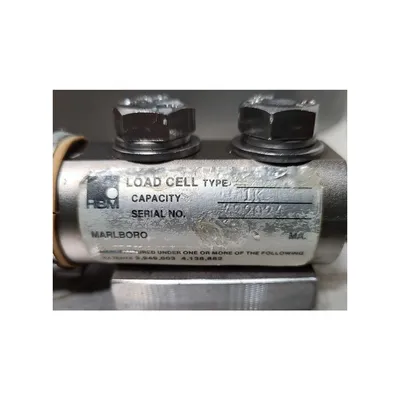

Supported on a 36" square frame with 2,200LB bending beam load cells (3- point)

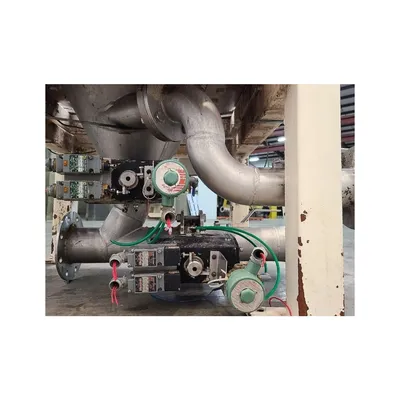

Controls required for valves, load cells, and fluidized-bed hopper
Overall dimensions: 48" W x 38" D x 78" H
Weight = 1,042 LBS

FOB: Millwood, WV 25262

Specifications

Item: 19323
 MFG: Dietrich Reimelt
 Capacity (cuft): 17.6
