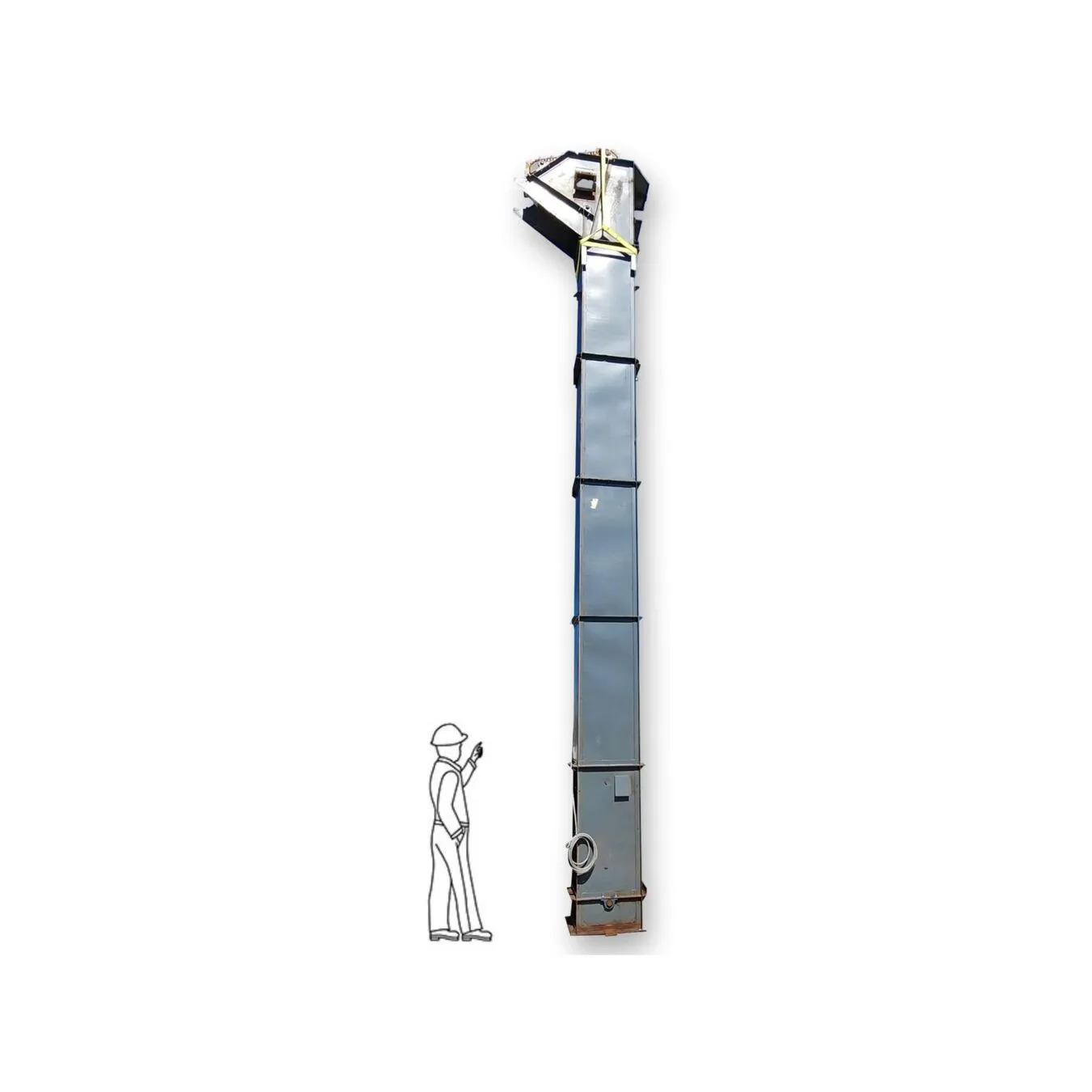

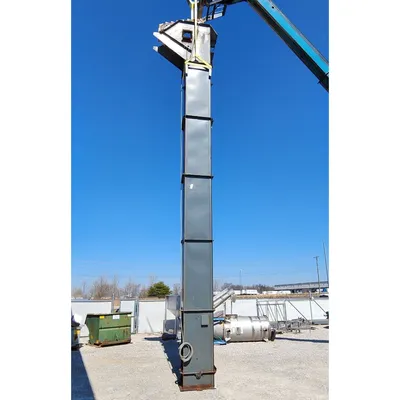

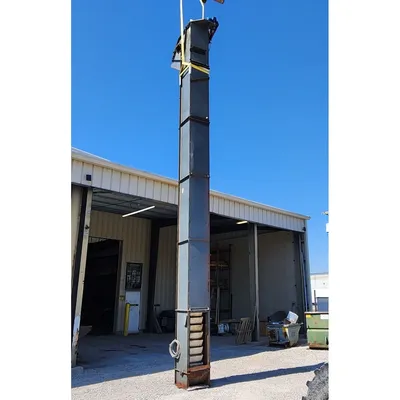

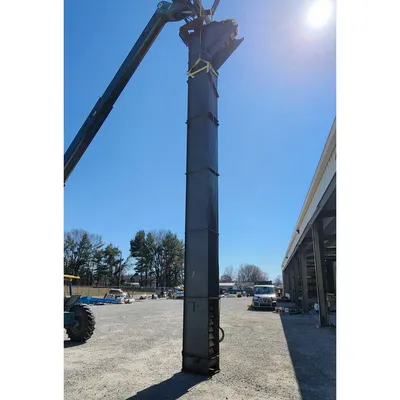

Used Carter Mfg. Co. Bucket Elevator 27'-3" Discharge Ht.

Carbon steel construction, single trunk design for elevating grains and feeds, 5' flanged sections
Buckets: 12" X 7" white polyethylene (241Cu/In capacity each, full), spaced at 6"
Product Inlet Height: 35" from base

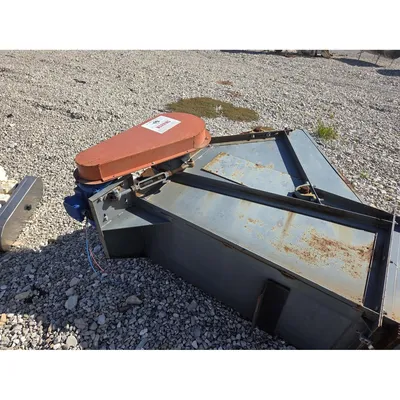

Elevator has a side discharge (long side).
Elevator is missing the top cover and bottom side panel (rear).
Area for base mounting: 21"W X 29"L

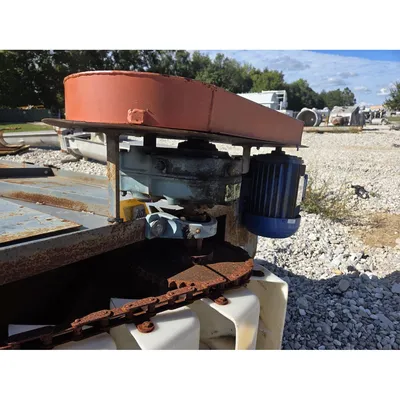

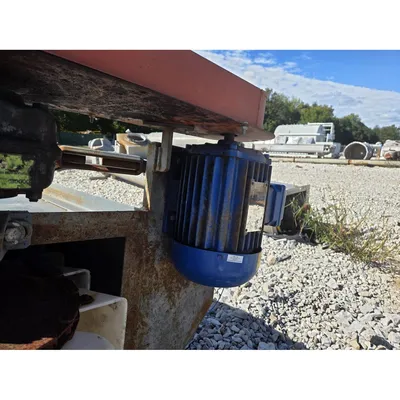

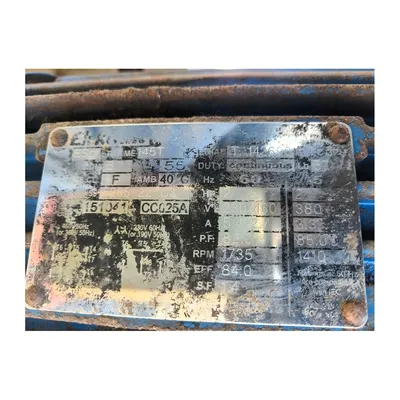

Drive: 2HP V-belt & gear reducer drive (230/460V, 60Hz, 3ph)
Overall Height: 30'-2"

FOB: Millwood, WV 25262

Item: 20967

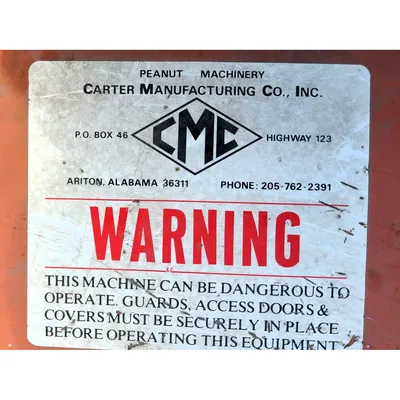

 MFG: Carter Manufacturing Co., Inc.
 Discharge Height (feet): 27.25
