USED NEW ENGLAND MACHINERY INC. H/E-3

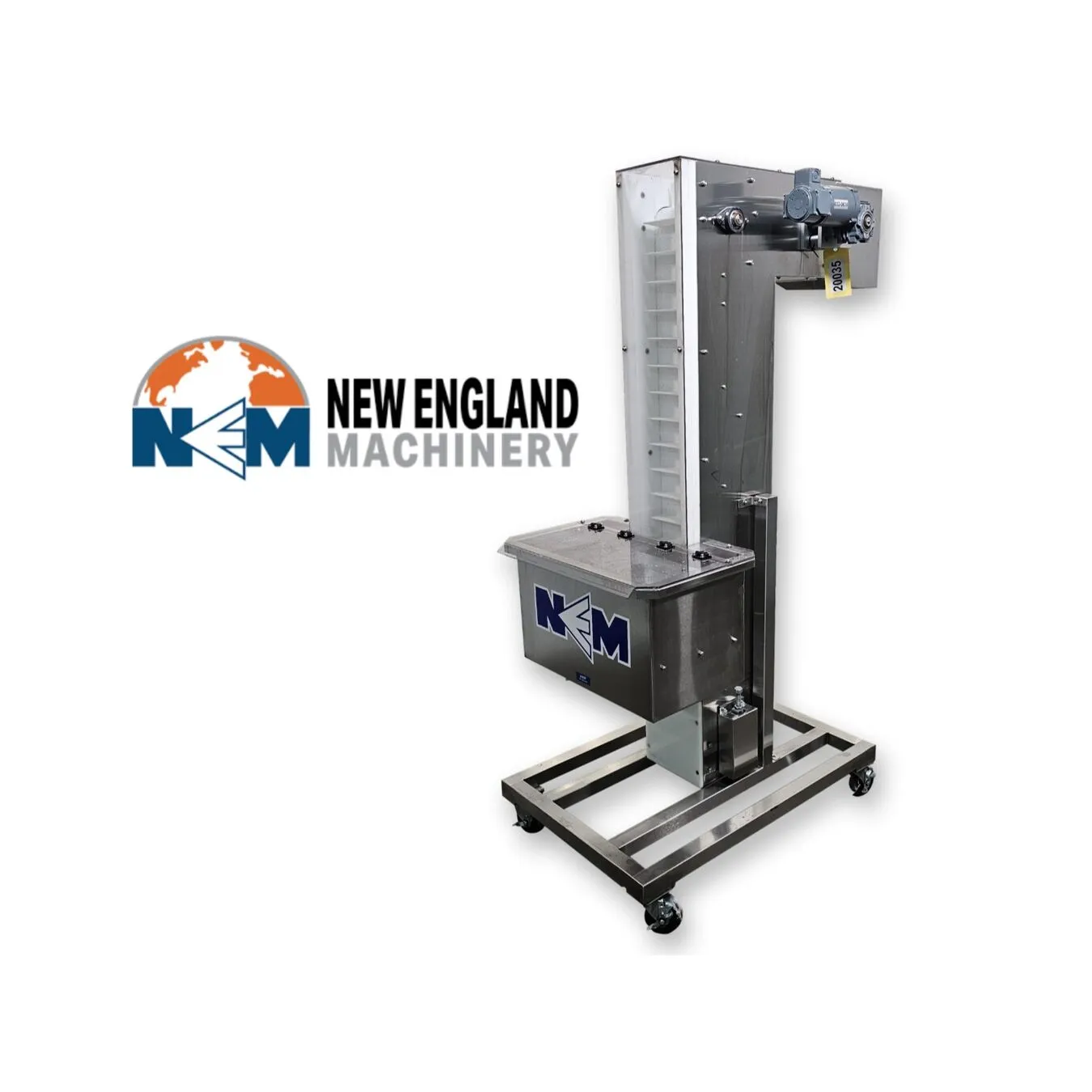

Sanitary elevating conveyor for caps, bottles, containers, etc.

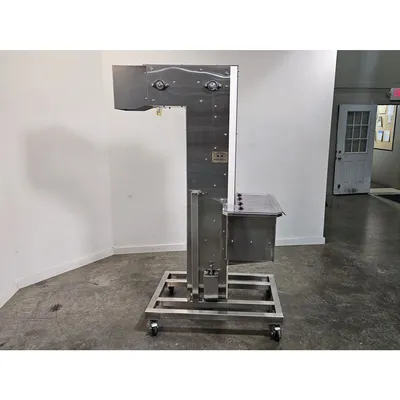

Vertical to horizontal configuration with a discharge height of 68" from unit base.
Side cladded with stainless steel sheet, plexan conveyor cover.

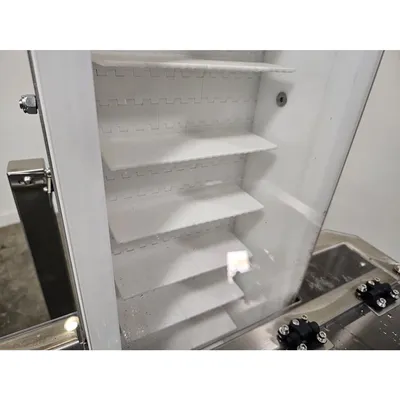

Flat-top style Intralox white polyethylene belt, 8" wide with 2.5" cleats on 3" spacing.

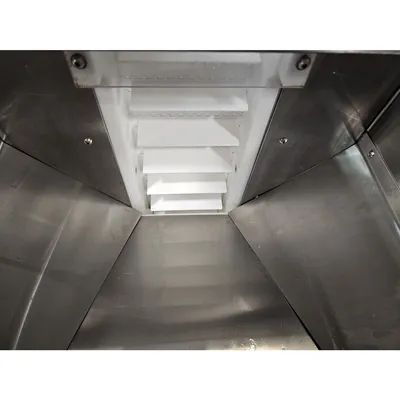

3.5 cubic foot loading hopper with hinged cover, 39" above base elevation.
Portable base frame is 28" X 42".

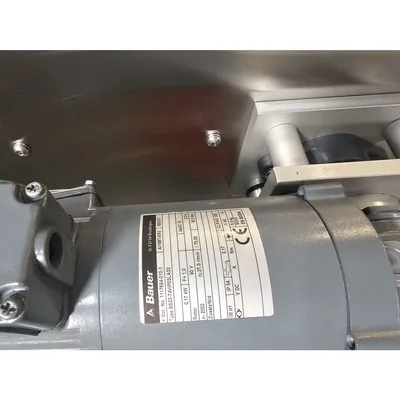

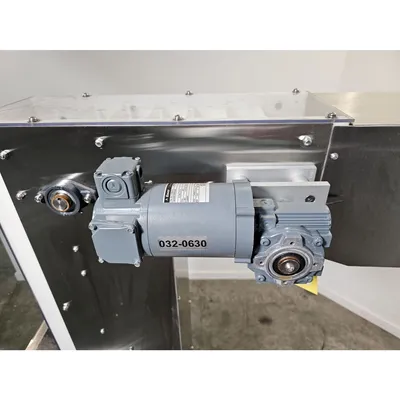

Top-mounted 0.22HP geared motor drive .
Power required: 90V

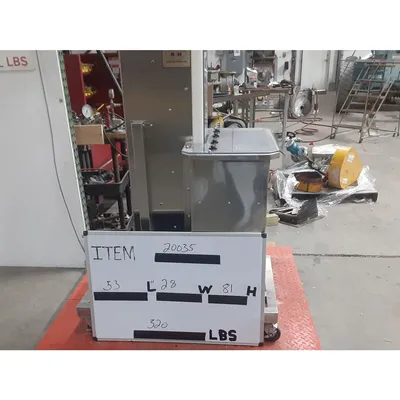

Overall dimensions: 53" L x 28" W x 81" H.
Weight = 320 LBS.

FOB: Millwood, WV 25262

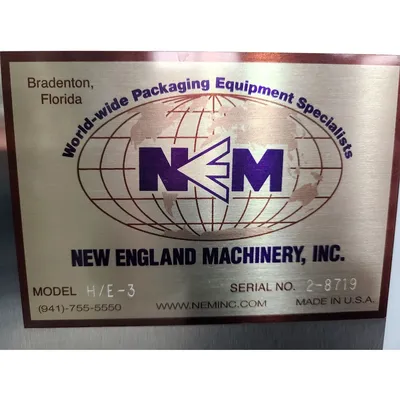

Item: 20035      Model :   H/E-3
 MFG: New England Machinery Inc.
 Discharge Height (feet): 5.66
