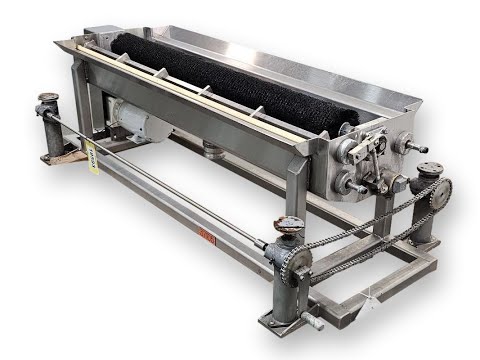

Used 1/2HP Motorized Sanitary Conveyor Belt Washing System - 54"W
Overview
Description

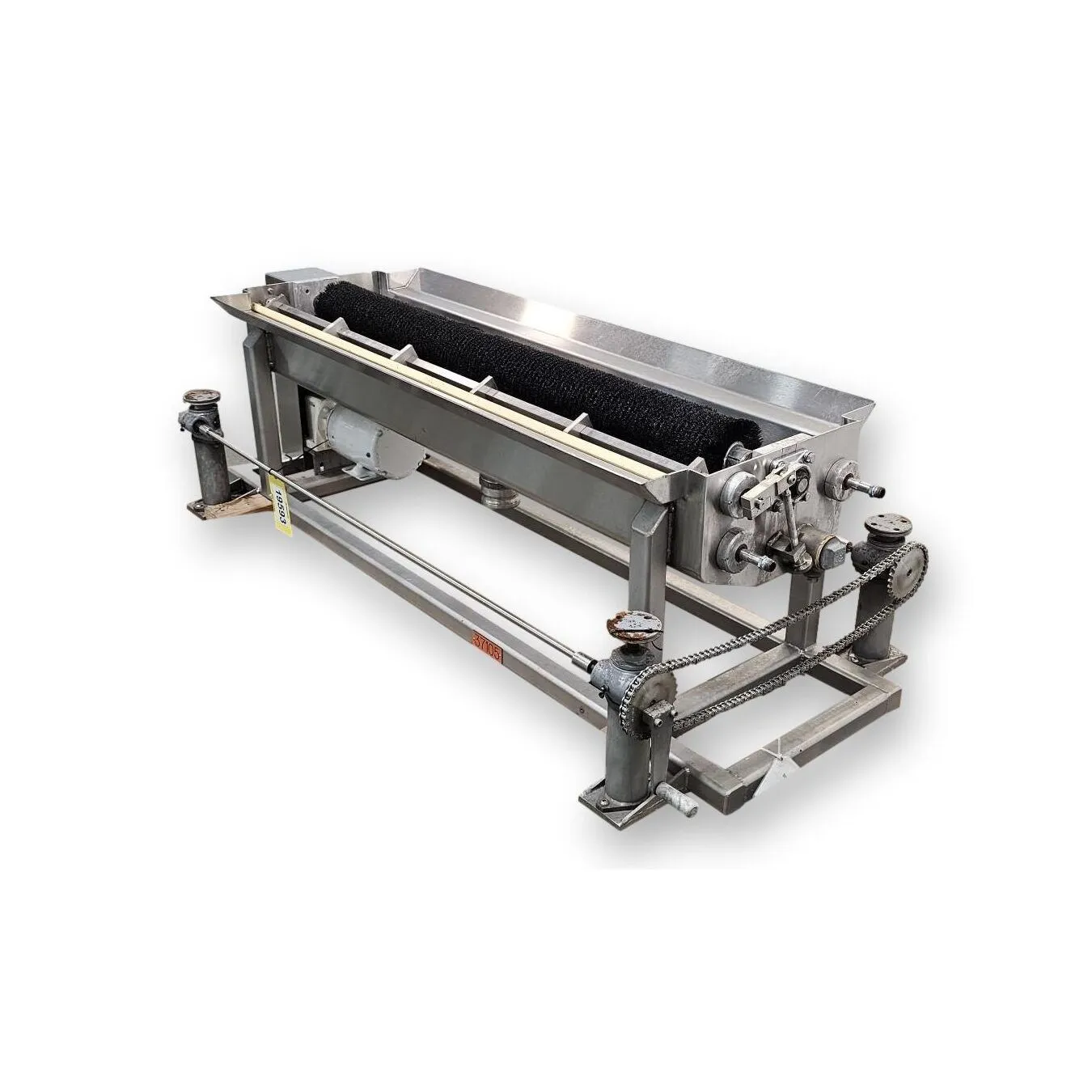

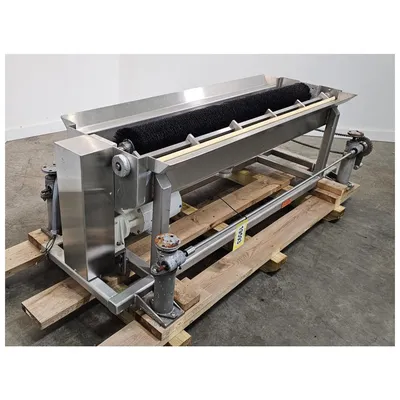

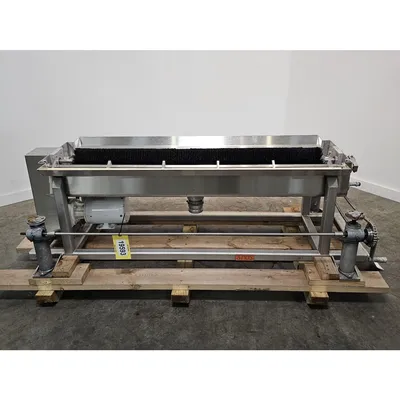

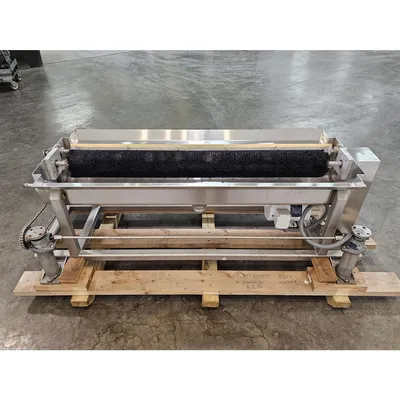

Conveyor belt washing and scraping system for installation under the belt return (while conveyor operating)
Formed stainless steel wash-down trough measuring 62" across, and 24" in direction of belt travel with 10" depth
Welded stainless steel square tube support frame with base mount area of 74"W X 33"L

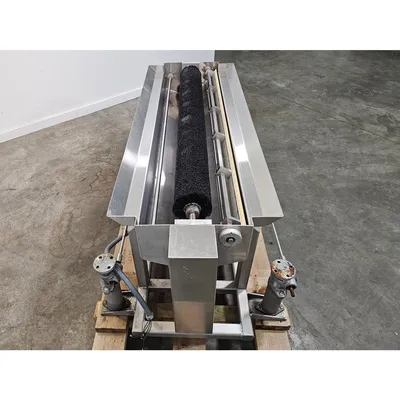

Coil type rotary brush is 5.75" diameter X 54"W black nylon bristle material (55RPM working speed)
Installed fore & aft spray bars for the brush 5.5" spaced, flat spray nozzles, with rotatable bars
Full-width neoprene rubber belt wiper with adjustable height
The entire assembly shall be base mounted under conveyor frame, can be connected to frame if applicable

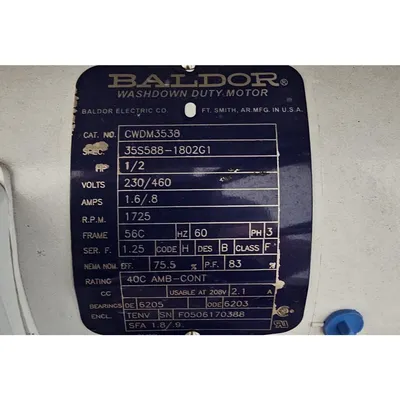

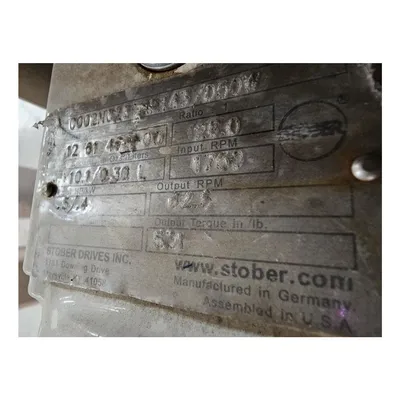

1/2HP washdown gearmotor with chain drive (230/460V, 60Hz, 3ph)
Unit is raised and lowered with manual jack screw actuators (8" travel)
Belt wash drain is installed with a 3" cam-lock fitting with cap, on center
Total Height of the unit is 22.5"
Video Available.
FOB: Millwood, WV 25262
Specifications
Item: 19593
Width (inches): 54
