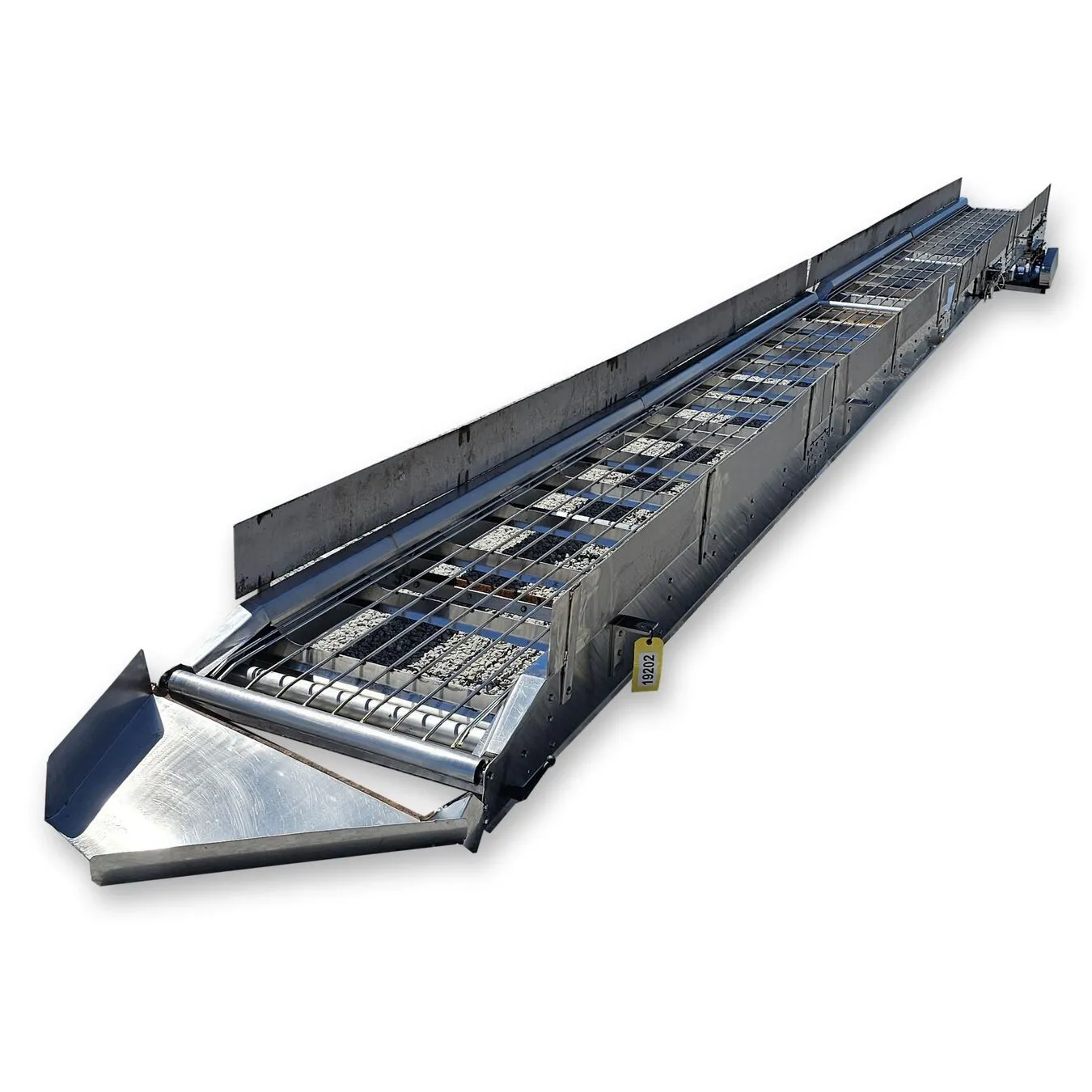

Used Woods Fabrication Stainless Steel Troughing Conveyor - 30"W X 40'

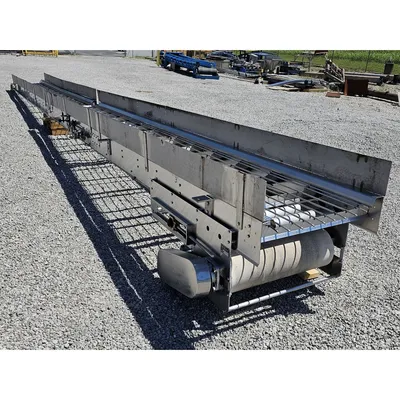

Sanitary construction, four-section conveyor with an under-hung center drive and belt tracking system
Formed and fabricated side support frame with troughing edge (10' long bolt-together sections)

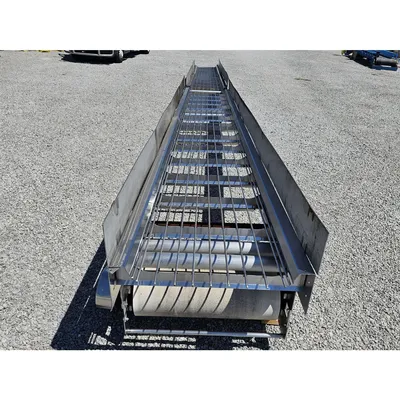

The sliding bed consists of spaced stainless round bars, full-width rollers for belt return
The conveyor assembly will require a base stand or suspended support

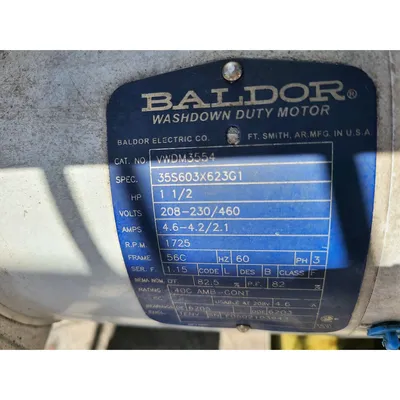

Driven by a 1.5HP inline gearmotor with a chain reduction
AutoCAD® drawing available
Supply Requirements:
Power : 208-230/460V, 60Hz, 3ph AC
Pneumatics: Dry Compressed Air for the Eckels belt tracking system
Previously conveying vanilla wafers in a Kellog plant.

FOB: Millwood, WV 25262

Item: 19202

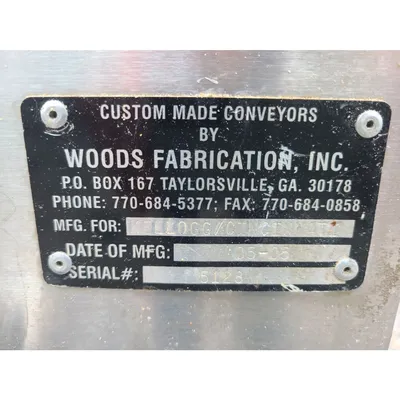

 MFG: Woods Fabrication, Inc.
 Width (inches): 30
