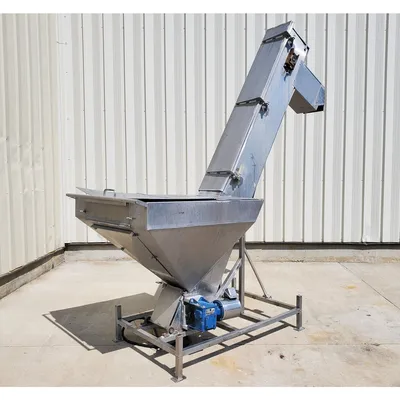

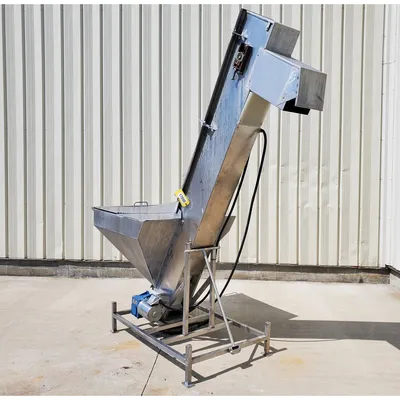

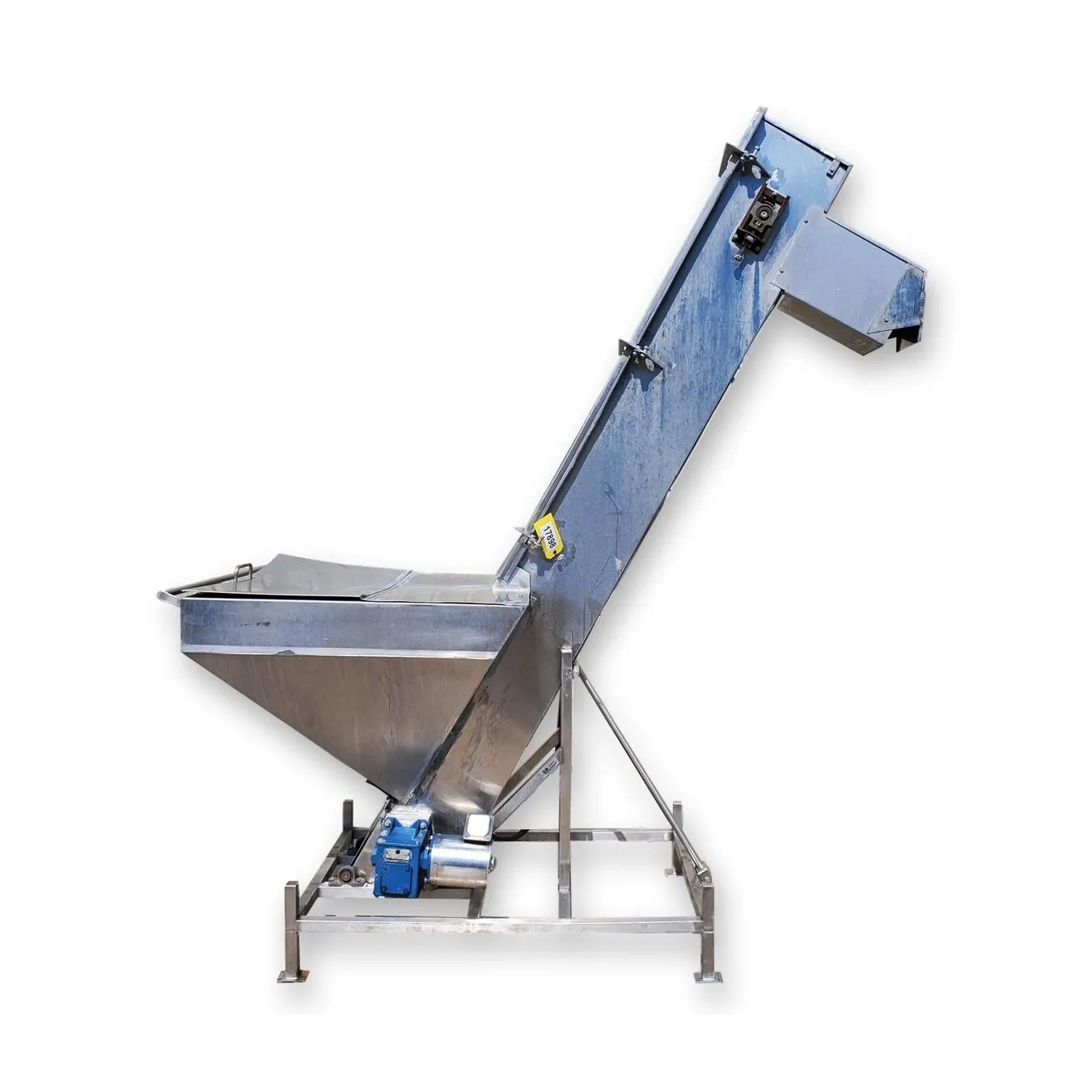

Used 10"W Inclined Cleated Belt Conveyor - Stainless Steel

Sanitary construction with hinged, over-belt cover on a fixed 60° incline
Frame constructed with 14Ga stainless sheet

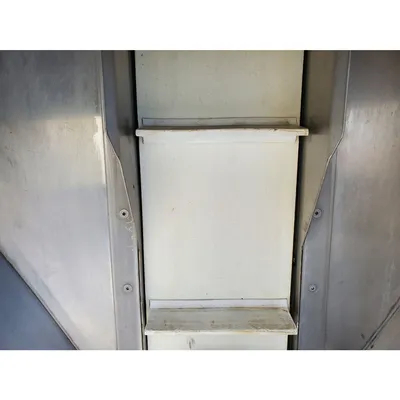

White vinyl belt with 2 1/2" vulcanized T-cleats on 12" spaces (approx. 8'-6" between pulley centers)

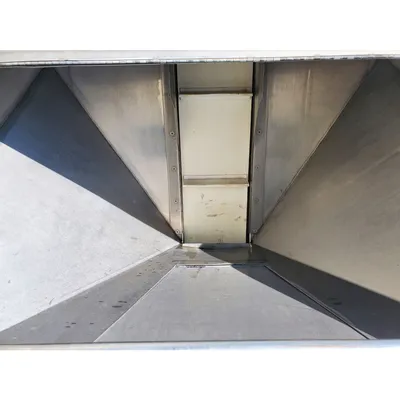

10 Cu/Ft capacity loading hopper measuring 42" square with hinged half-cover
Loading Height: 50"
Discharge Height: 83"
Overall Height: 115"
Base frame is 36"W X 55"L

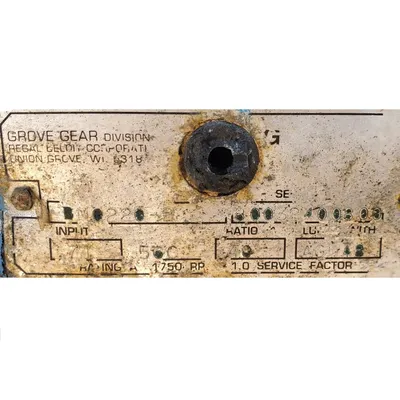

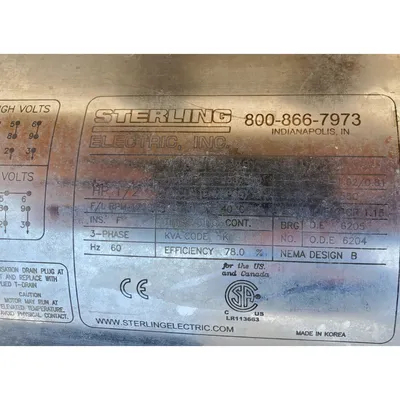

1/2HP gearmotor drive (230/460V, 60Hz, 3ph)
Video Available

FOB: Millwood, WV 25262

Item: 17898
 Width (inches): 10
