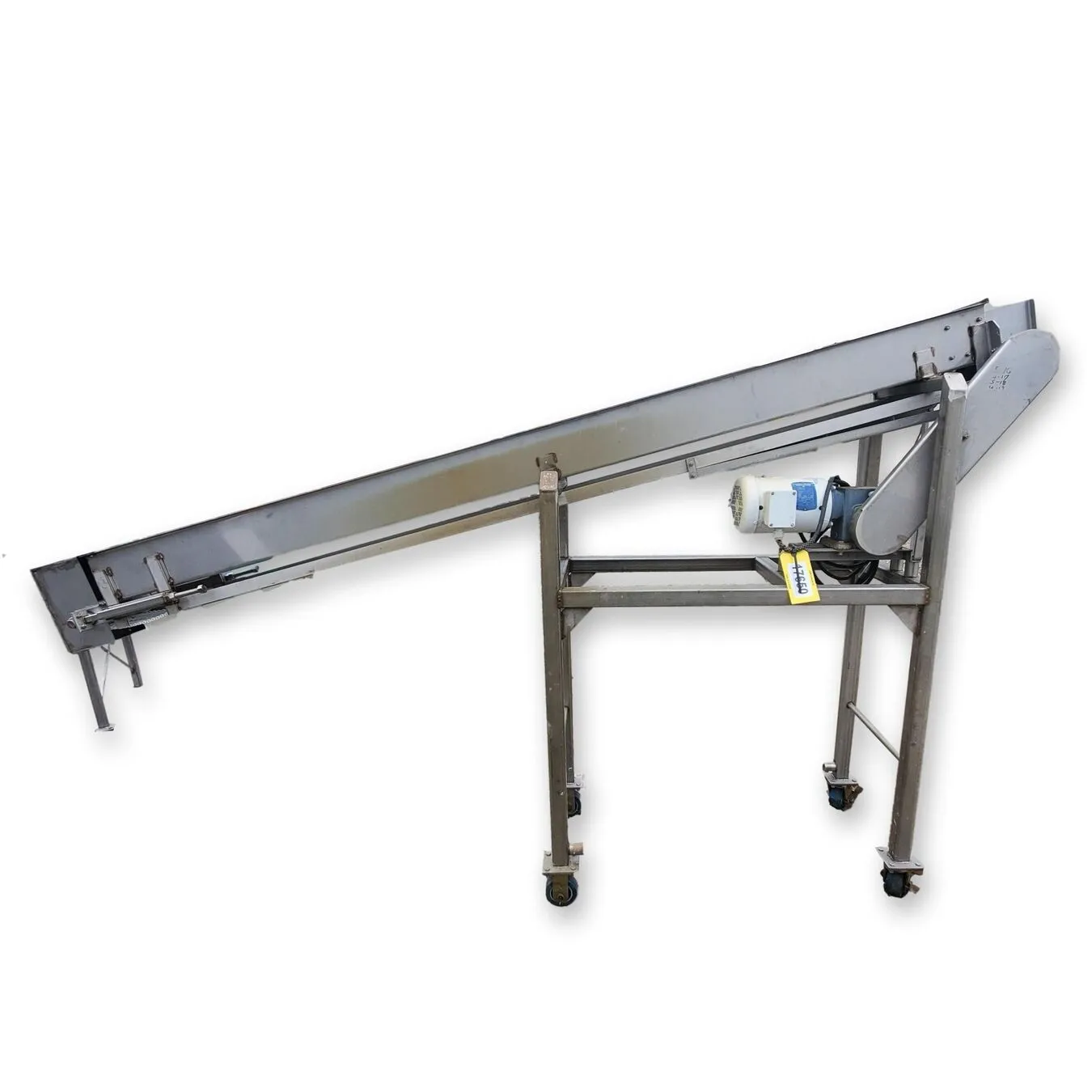

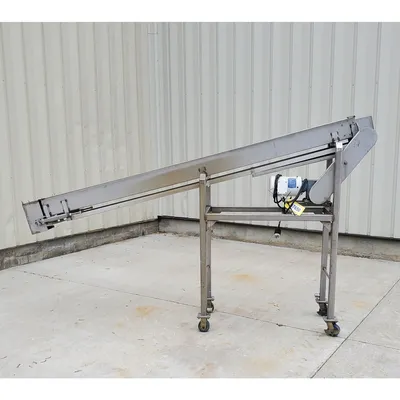

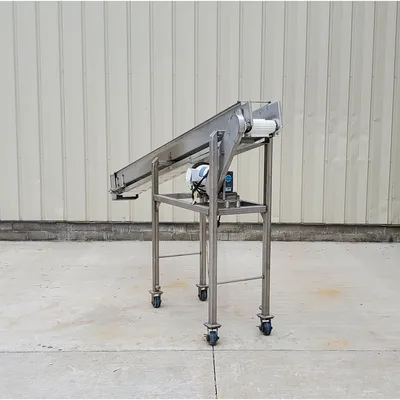

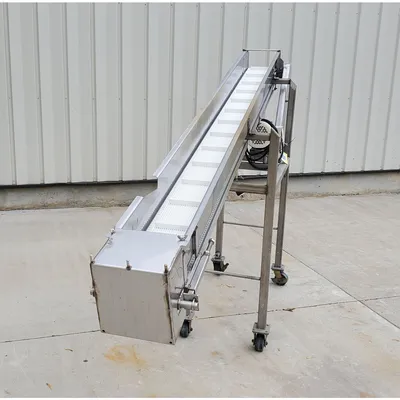

Used 8" Wide x 9' Long Stainless Steel Intralox Inclined Belt Conveyor

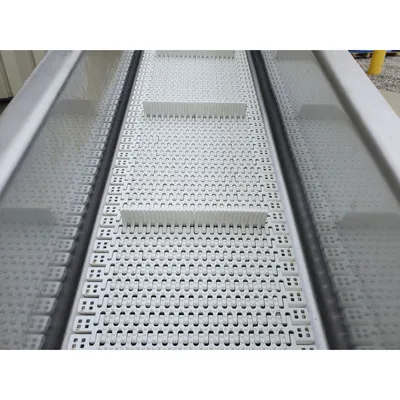

Installed Intralox Flush Grid, Nub Top style plastic straight belt with 0.315" pitch and 1" cleats on 8" spaces (9'-6" distance between belt pulley centers)
Portable stainless steel frame & stand with conveyor fixed on a 15° incline (38" from floor - low end, 66" from floor - high end), 6" high flanged side guides

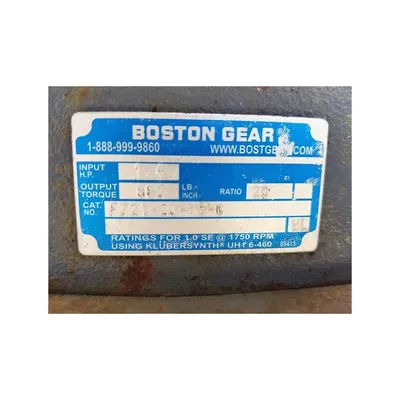

3/4HP washdown duty motor, right angle worm gear reducer & guarded chain drive
Supply power: 230/460V, 60Hz, 3 phase
Demonstration video on file. Current belt speed = 6 revolutions per minute.

FOB: Millwood, WV 25262

Item: 17650
 Width (inches): 8
