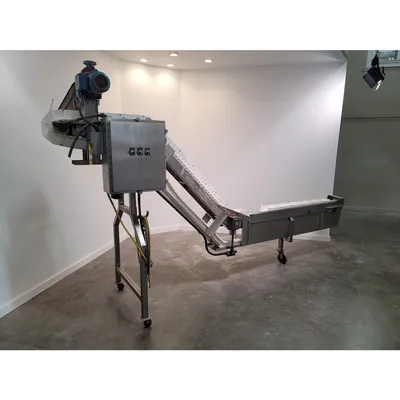

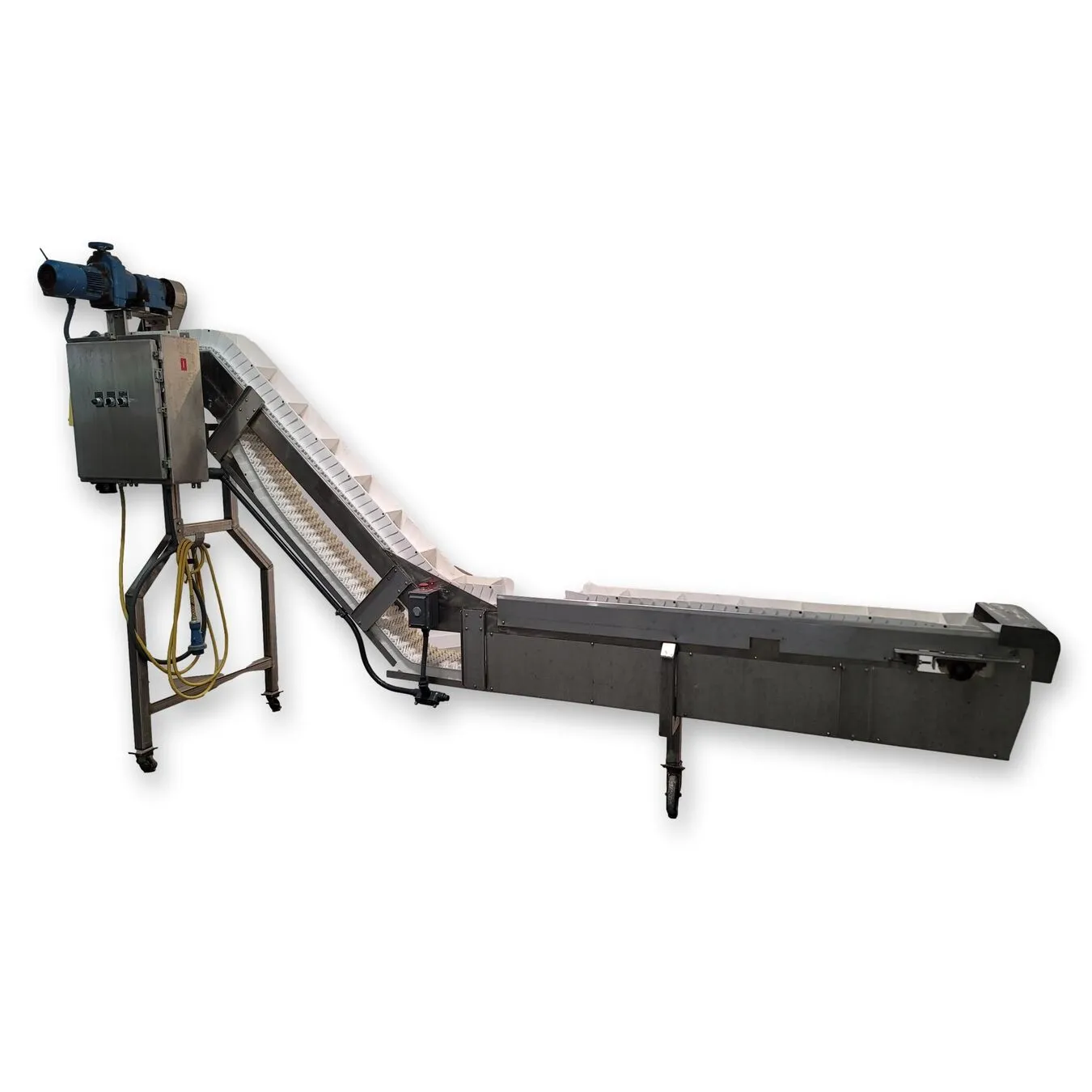

Used 6"w Stainless Steel Z Configuration Conveyor

All stainless steel construction supported on a 2" square tubing portable frame and formed, stainless sheet

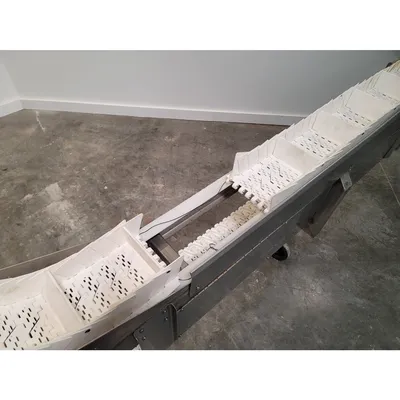

Modular plastic cleated belt on 8.5" spacing with 3" overlapping side guides
Missing 13" length of belt
Installed with drip pan
Loading height for the belt is 32" from floor, discharge is 73"
Stainless NEMA 4, 4X enclosure houses conveyor controls
Powered by a 2HP Sew Varimot manual speed gearmotor with chain drive
Supply: 230/460VAC, 60Hz, 3ph
Overall length: 13'-8"

FOB: Millwood, WV 25262

Item: 18230
 Width (inches): 6
