NEW 2001 FIVES GIDDINGS & LEWIS 84" VTC
Overview
Description
96" GIDDINGS & LEWIS 84VTC Vertical Boring Mill, G & L 8000 CNC Control, 12 ATC Elevating Rail
G&L 8000 CNC Controls, #60 Tooling, Chip Conveyor, 12 Station ATC, Renishaw Probe, Table Jaws, Elevating Rail
Founded in 1859 in Fond du Lac, Wisconsin, as a repair shop for local sawmills, Giddings & Lewis (now Fives Giddings & Lewis) evolved into a leading global manufacturer of high-precision, heavy-duty machine tools. The company specializes in large horizontal boring mills, vertical turning centers, and machining centers for the aerospace, energy, and mining sectors, operating under Fives Group since 2013.
Specifications
| Table Dia | 63" | 1,600.2 mm |
|---|---|---|
| Swing | 78.7" | 1,999 mm |
| Power | 100 hp | 74.6 kW |
| RPM | 4,000 RPM | 4,000 RPM |

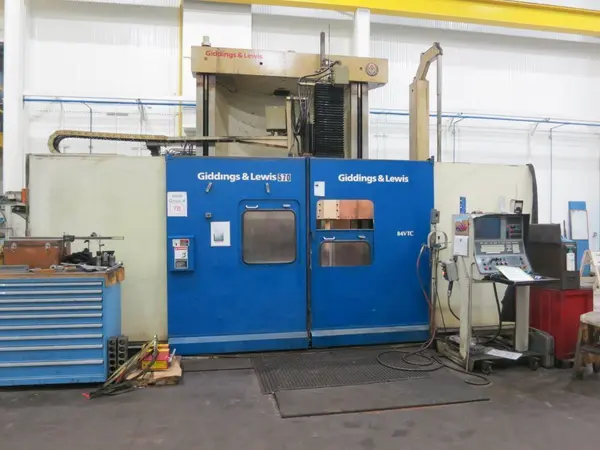

96" Giddings & Lewis 84VTC Vertical Boring Mill
Stock #: 12035 | Year: 2001 | GIDDINGS & LEWIS 84VTC | Used
Description:
G&L 8000 CNC Controls, #60 Tooling, Chip Conveyor, 12 Station ATC, Renishaw Probe, Table Jaws, Elevating Rail
Specifications:
Table Dia 96"
Swing 108"
Work Ht-U/R 90"
RPM 200 RPM
Make: Giddings & Lewis
Model: 84VTC
Table Diameter......................... 96″
Swing.................................. 108″
Table speed............................ 200 RPM
Max under the rail..................... 90″
Ram Stroke............................. 57″
Ram Size............................... 8″ X 8″
Equipped With
Vertical Ram w/12 Station ATC
#60 Tooling
G&L 8000 CNC Controls (4 axis)
Chip Conveyor
Renishaw Probe
Table Jaws
Elevating Rail
