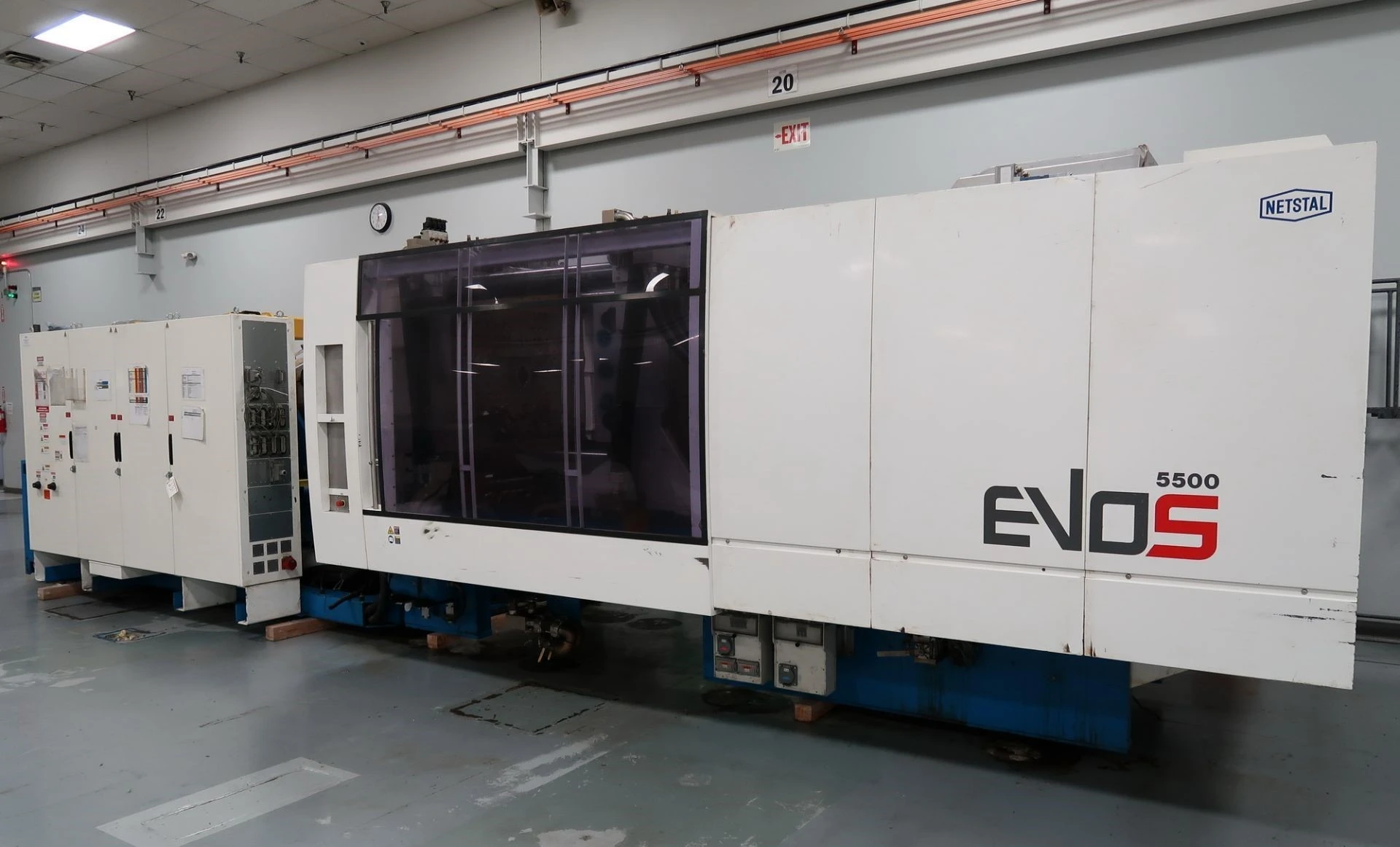

| Type | Hydraulic | Hydraulic |
| Clamping Force Tonnage | 550 t | 606.27 T |
| Shot Volume (PS) | 36.5 oz | 1,034.8 g |
| Screw Diameter | 70" | 1,778 mm |
| Injection Rate STD | 1,000 ft³/min. | 28.3 m³/min. |
| Tie Bar Distance H | 1,020 mm | 40.158" |
| Tie Bar Distance V | 920 mm | 36.221" |
| Platen Dimension H | 1,320 mm | 51.969" |
| Platen Dimension V | 1,330 mm | 52.362" |
| Clamp Stroke | 901 mm | 35.473" |
| Mold Height Min | 0 mm | 0" |
| Mold Height Max | 1,350 mm | 53.15" |
| Injection Orientation | Horz | Horz |
| Machine under power | Under power running with mould | Under power running with mould |
| Control | CNC (DSP5) | CNC (DSP5) |
Injection Speed (mm/sec) 1000mm/sec. w/ Bolster plates, 5500kN Capacity, 24 Tip Heats, 24 Manifold Heats, 4 Programable Hydraulic Functions (2-Stationary, 2-Portable), 12 Programable Air Functions, 2 Programable Hydraulic Cores per Platen. Platen Parallelism & Tie Bar Tensions: Completed this year on both machines.
