USED 2021 JORNS AG JDB-200G

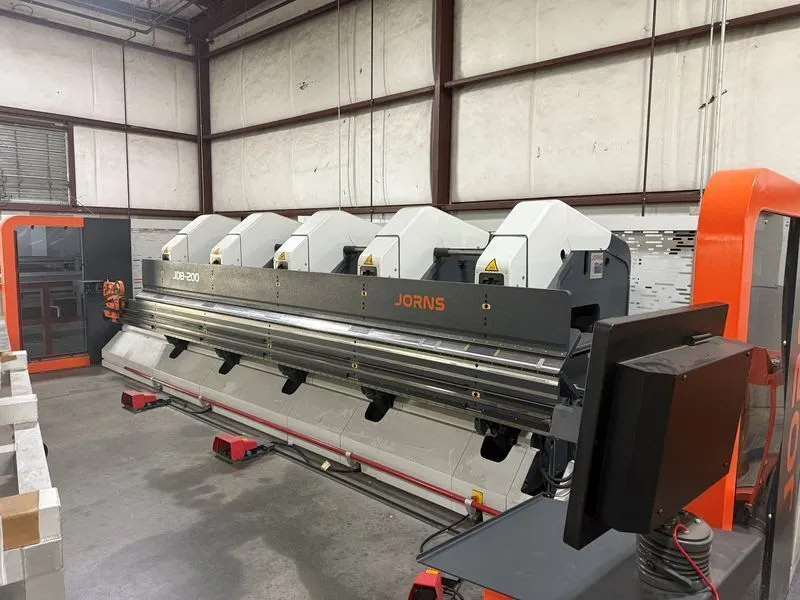

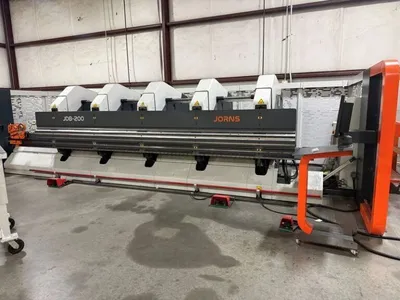

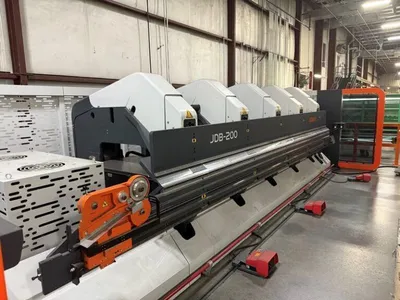

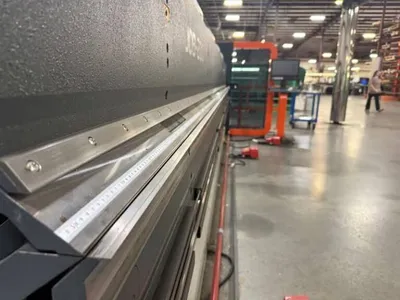

JORNS AG Long Sheet Folder, Double Bending, Model JDB 200G, 3mm x 5.2 Double Bending CNC
Since 1973. Jorns represents Swiss innovation with an unparalleled focus on quality to deliver the best machine, the most durable long metal folding machines in the world. With more than 5500 installed machines the name Jorn is synonymous with quality, high performance, speed, accuracy, and reliability!
Jorns JDB Double Bending machine is offered in lengths of 13, 21, 26, 32, and 40 feet as a standard (other lengs available) and can work with material up to 11g mild steel capacity.
Automation today is a critical part of manufacturing. Jorns has been providing automated solutions since the 1980’s. These years of experience has led to advances in developing automated handling systems, side loading flat sheets, integrated robotic solutions. All of this is capable of being driven through Industry 4.0 standards such as Bendex software.
Capabilities of the Jorns JDB bending machine allow for one complete solution no matter your industry served or future needs. One bending solution provides you the ability to create profiles for the metal roofing and metal building industry.
Examples of possible profiles are corrugated roofing panels, corrugated wall panels, architect designed wall panels, tapered panels, tapered profiles for nesting solutions, as well as your needed C’s and Z’s.

Equipped With:

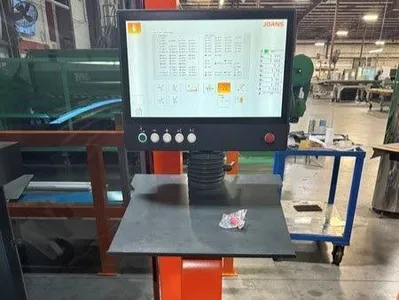

CP300 Control System, Additional SSD Card for Controller, Standard Safety Features, Geometry 'G', RH Hydraulic Material Thickness Adjustment,

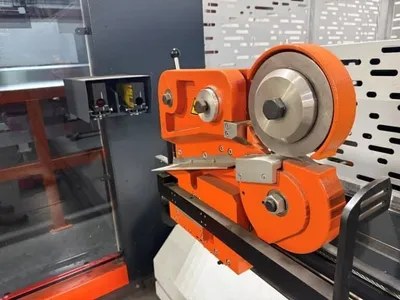

DP Dynamic Positioning, Pretension of Bending Beam, LED Operational Control Lights, Infeed Table- Automated, Electric Clamping Fingers (Qty: 4), Electrical Short Part Clamping Fingers (Qty: 2), Vacuum Gripper- Automated (Qty: 4), Oil Heater for Hydraulic System, Slitter SL3, DSP Double Servo Pump, Hydraulic Cooling System
