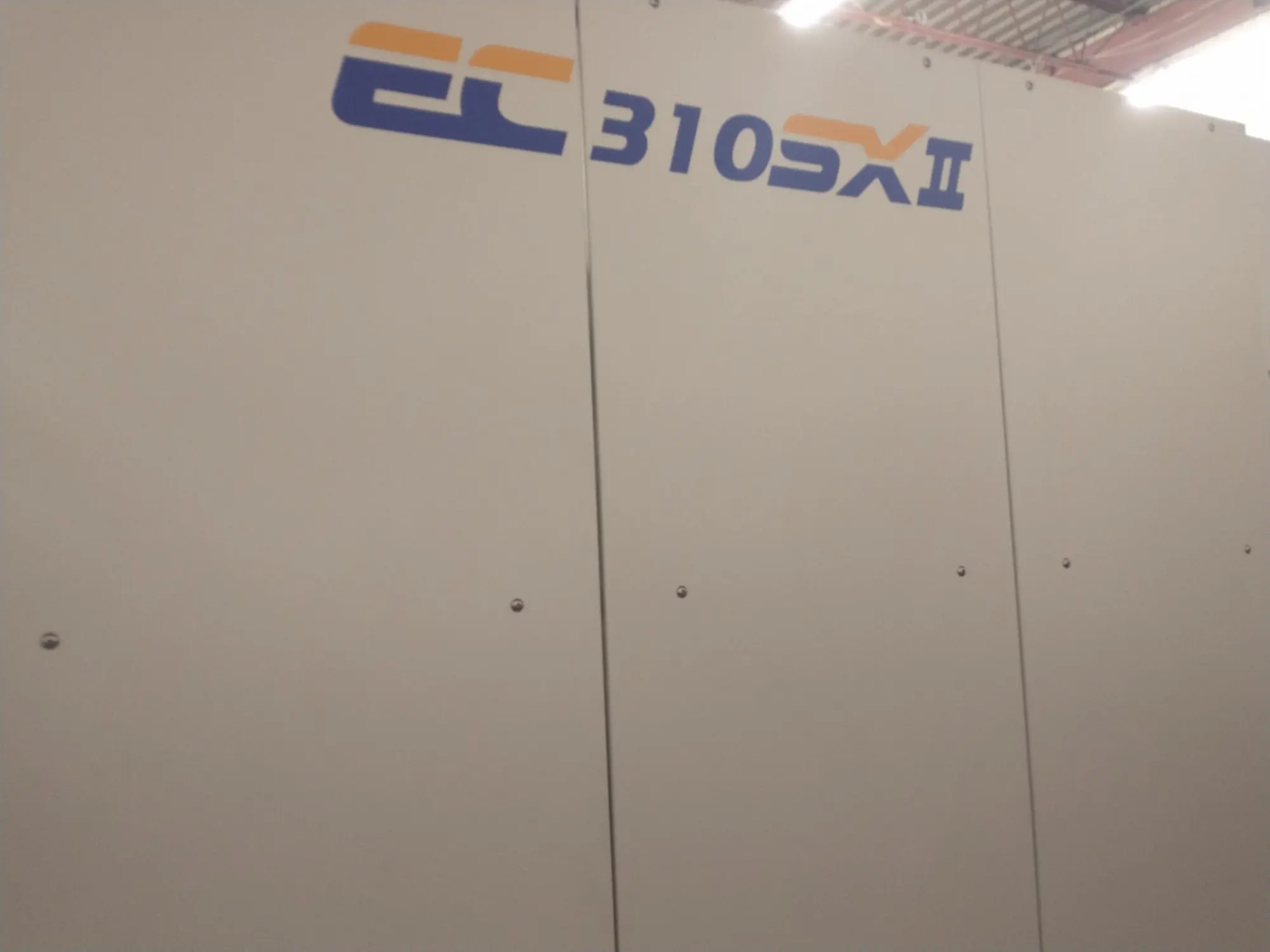

USED 2018 TOSHIBA MACHINE EC310SXIIV50-i17
Overview
Specifications
| Type | All Electric | All Electric |
|---|---|---|
| Clamping Force Tonnage | 310 T | 281.228 t |
| Barrel Code | AT | AT |
| Shot Volume (PS) | 27.5 oz | 779.6 g |
| Screw Diameter | 60 mm | 2.3622" |
| Maximum Injection Pressure | 29000 psi | |
| Maximum Holding Pressure | 29000 psi | |
| Nozzle Touch Force | 6.6 T | 5.987 t |
| Tie Bar Distance H | 28.7" | 728.98 mm |
| Tie Bar Distance V | 26" | 660.4 mm |
| Platen Dimension H | 40.6" | 1,031.2 mm |
| Platen Dimension V | 37.8" | 960.12 mm |
| Clamp Stroke | 23.6" | 599.44 mm |
| Ejector Force | 6.6 T | 5.987 t |
| Ejector Stroke | 5.9" | 149.86 mm |
| Power supply Volts | 230 | 230 |
| Injection Orientation | Horz | Horz |
| Hours | 11,504 hr. | 11,504 hr. |
| Machine under power | Under power running with mould | Under power running with mould |
| Control | CNC (V50) | CNC (V50) |
MACHINE STANDARDS & REQUESTED MACHINE OPTIONS:
CUSTOMER IS SUPPLYING TRANSFORMER SCREW-HIGH PERFORMANCE OLEFIN DUAL AIR BLOW
EJECTOR MOTOR WITH BRAKE
HOPPER THROAT TEMPERATURE CONTROL
MOLD EJECTOR PLATE MONITOR
PROGRAM BARREL CONTROLLER
SPI ROBOT INTERFACE RECEPTACLE (50-PIN/EUROMAP 67) VIBRATION MOUNTING PADS
HYDRAULIC CORE PULL DUAL PROGRAM & ELECTRICAL INTERFACE ALARM LIGHT – 3 STAGE
REJECT SHOT RECEPTACLE
INDUSTRIAL SOLUTIONS MOLD TRIAL
TUNGSTEN CARBIDE BARREL
AUTO PURGE
HEATER BAND FAILURE ALARM SELECTABLE SIGNAL OUTPUT (X6) PNEUMATIC MOLD VALVE GATE (1 ZONE) SIMULTANEOUS EXTRUDE & CLAMP
USB MEMORY PORT
PNEUMATIC CORE PULL-SINGLE (TIMER ONLY)
INSPECTION AND STICKER (INTERTEK)
Equipped With
INJECTVISOR V50 CONTROL
