| X Axis | 30" | 762 mm |
| Y Axis | 16" | 406.4 mm |
| Z Axis | 20" | 508 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 36" | 914.4 mm |
| # Axis | 3 | 3 |
| Control | CNC (Haas CNC Control) | CNC (Haas CNC Control) |
| Dimensions | 101″ x 99″ x 101″ High | 101″ x 99″ x 101″ High |
| Weight | 8380 lbs | 8380 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

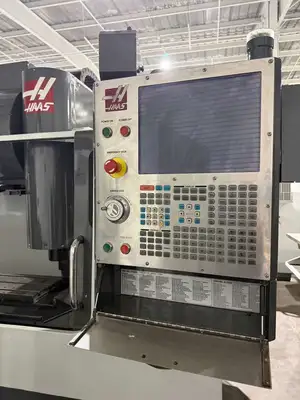

Haas CNC Control
Rigid Tapping

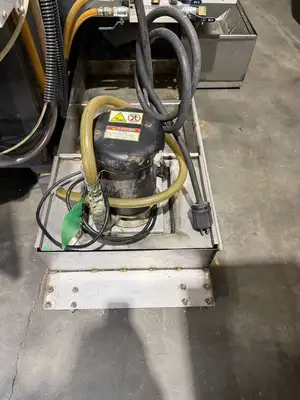

Coolant System
Table:
Length: 36.0″
Width: 14.0″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 1500 lbs
Travel:
X-Axis: 30″
Y-Axis: 16″
Z-Axis: 20″
Rapid Traverse Rates: 1400 Inch Per Minute
Cutting Feed Rates: 883 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 24″
Automatic Tool Changer:
Capacity: 24 Station
Max Tool Weight: 12 lbs
Max Tool Diameter (full): 2.5″
Max Tool Diameter (adjacent empty): 5″
Max Tool Length: 11″
Tool Changing Time: 1.8 Seconds
Spindle:
Taper Size: CAT-40
Speed Range: 12000 RPM
Spindle Power: 40 HP
Vector Drive Max Torque: 90 ft-lb @ 2000 RPM
General:
Air Required: 100 psi, 4 scfm

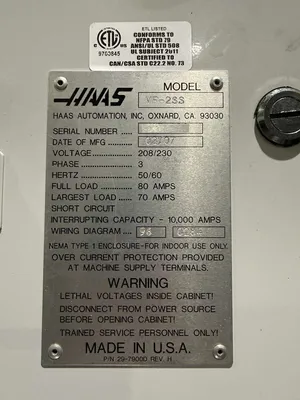

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 101″ x 99″ x 101″ High
Weight: 8380 lbs
12000 RPM High Speed Inline Direct Drive Spindle
Haas Vector 40 HP High Torque Spindle Drive
24 Station Super Speed Side Mount Automatic tool changer
1400 IPM Fast Rapid
Chip Auger
