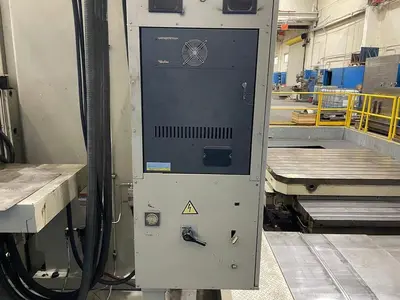

USED 1991 TOSHIBA BF-130A
Description

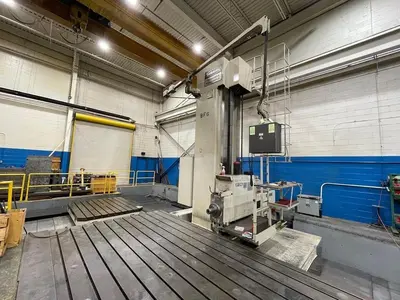

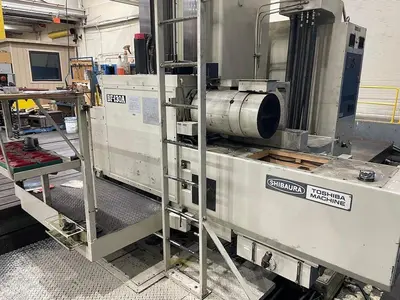

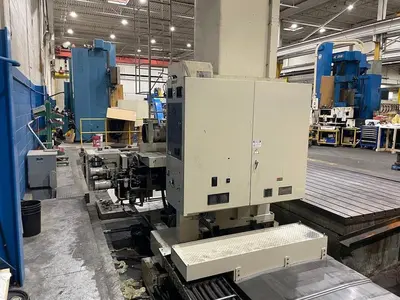

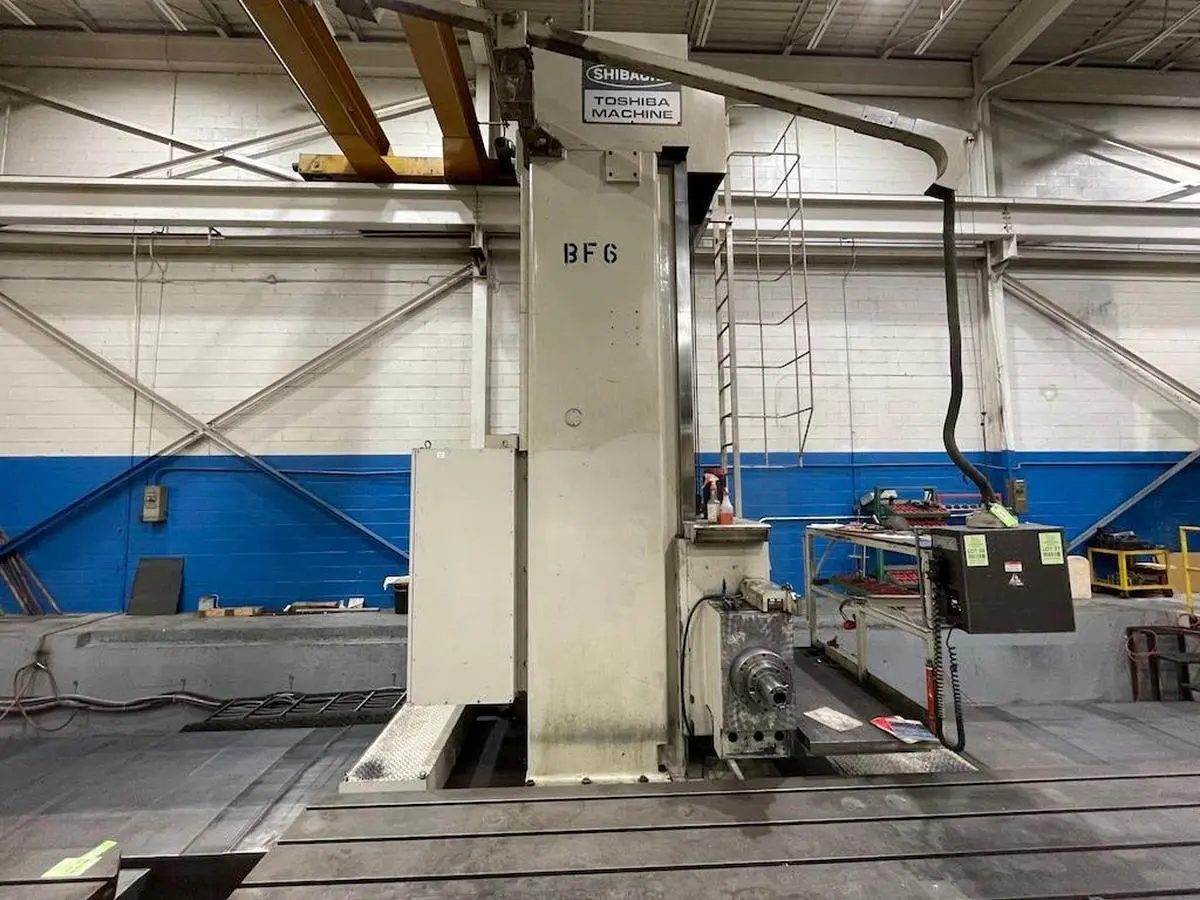

The Toshiba BF-130A is a heavy-duty CNC horizontal boring mill designed for large, precision machining applications. Featuring a 5.12" spindle with #50 taper, 40 HP spindle motor, and wide travels of 354" (X) and 118" (Y), this machine delivers exceptional rigidity and reach. The traveling column design, combined spindle and quill Z-axis, and Fanuc Series 15-M control make the BF-130A ideal for large components, mold work, and heavy fabrication requiring accuracy and power.
Specifications
Spindle Diameter ( IN ): 5.12
Spindle Taper: #50
Spindle Speed ( RPM ): 5 – 800
Spindle Motor ( HP ): 40
X Travel ( IN ): 354
Y Travel ( IN ): 118
Z-1 Travel – Spindle ( IN ): 39.37
Z-2 Travel – Quill ( IN ): 17.7
Total Axial Travel ( IN ): 39.37

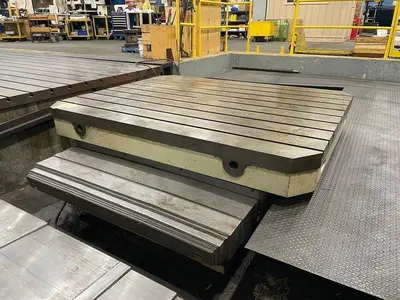

Infeeding Rotary Table Size: 78.74" x 98.42"
Table Infeed: 78.74"
Table Rotation: .001 IPM
Table Weight Capacity: 44,000 lbs
Equipped With

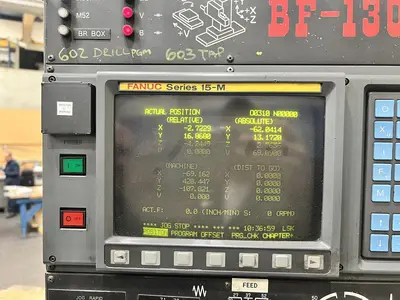

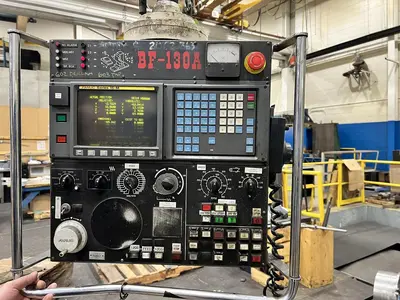

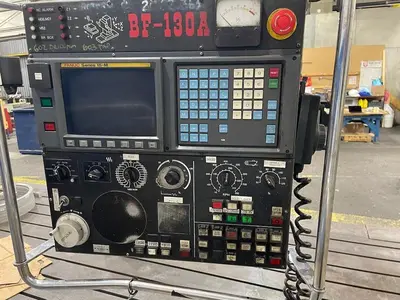

Fanuc 15M CNC Control

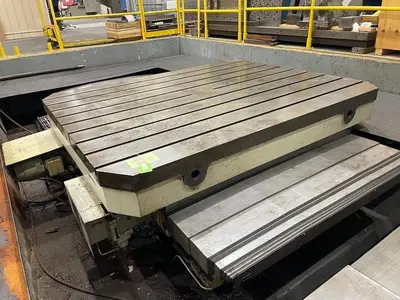

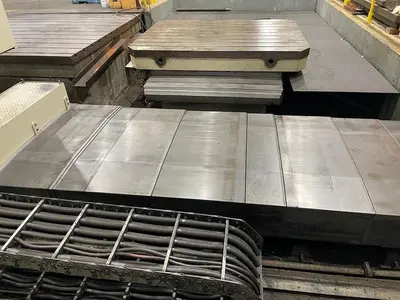

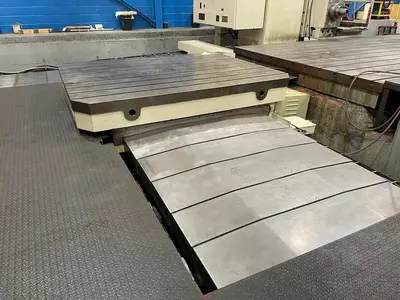

Toshiba BD 20/25 CNC Infeeding Rotary Table

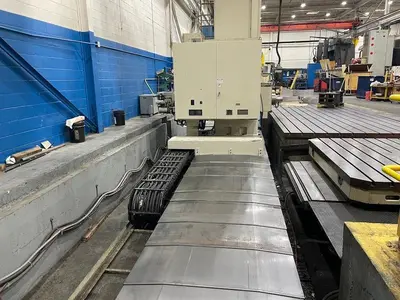

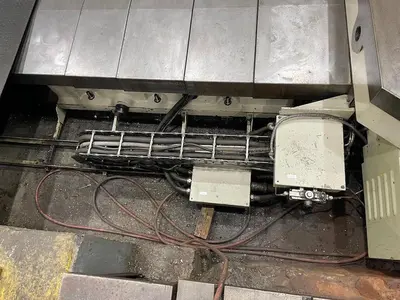

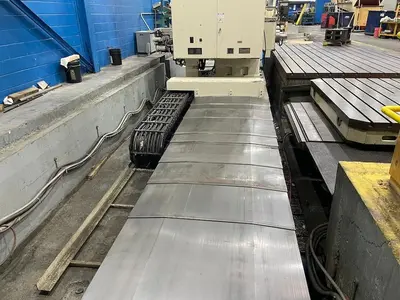

Telescoping Way Covers on Runway
Ball Screws & Independent Drives
40 HP Spindle Drive

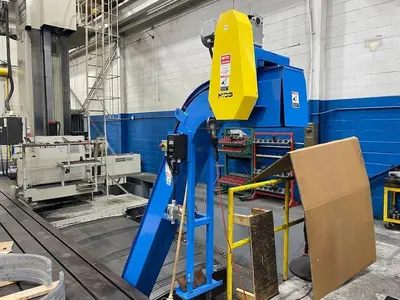

Chip Conveyor
