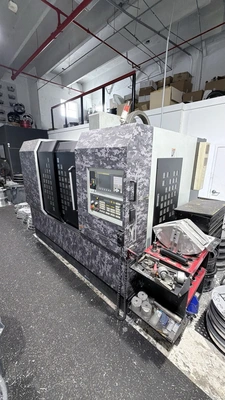

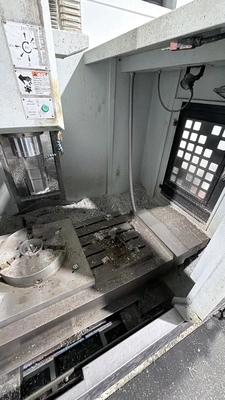

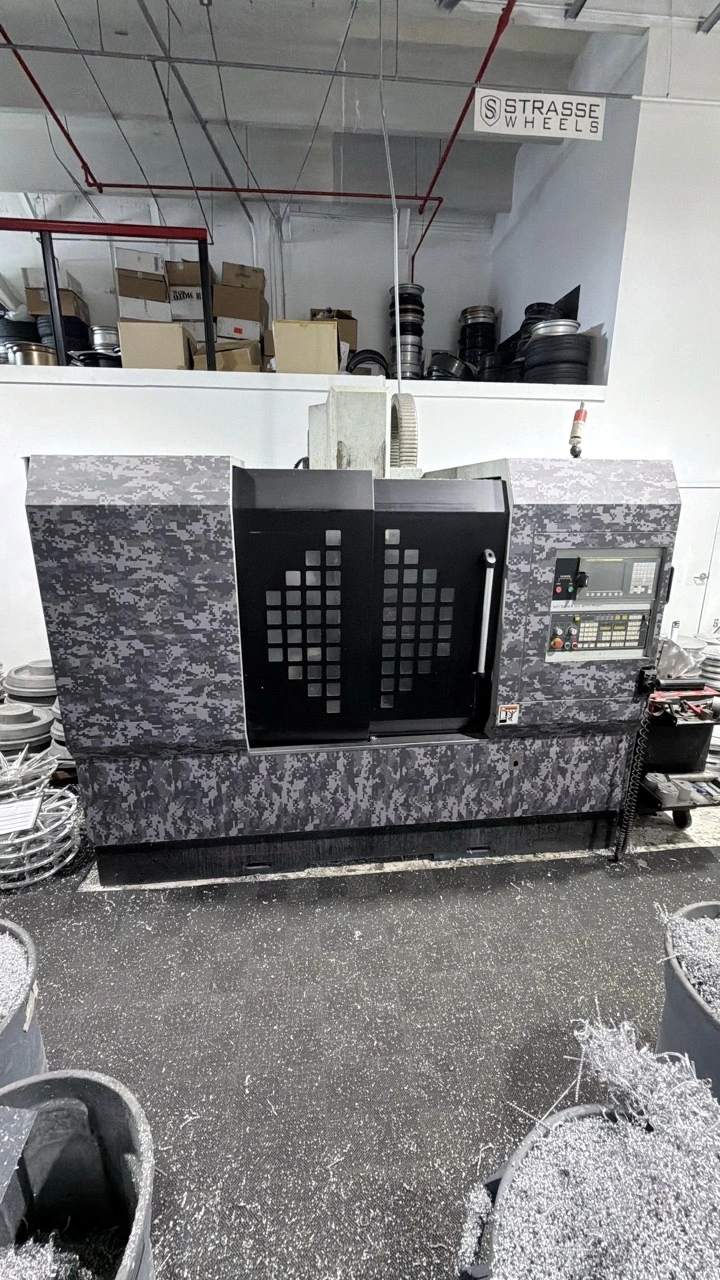

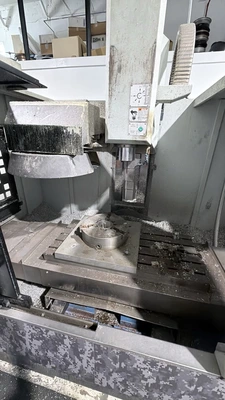

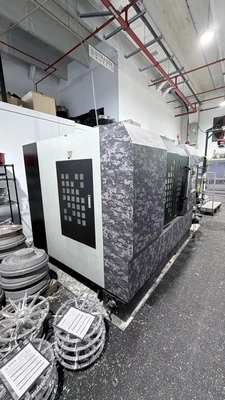

USED 2008 ACRA BMV 1000

Table Size (L × W): 47″ × 21.6″
X Axis: 40″
Y Axis: 24″
Z Axis: 24″
Spindle Taper: BT40
Spindle Speed: 8,000 RPM
Spindle Motor: 20 HP
ATC Capacity: 20 (Umbrella)
Feed Rate (Rapid): ~787 IPM
Cut Feed Rate: ~400 IPM
Max Tool Diameter: 100 mm
Max Tool Length: 300 mm
Max Tool Weight: 15.4 lbs
Coolant Tank Capacity: 66 gallon
Weight: ~15,130 lbs
Power Requirement: 220 V 3-Phase
Equipped With
– Fanuc Oi‑MC CNC Control
– 20 Position ATC (Umbrella)
– Chip Conveyor
– Coolant System
– All Available Manuals
