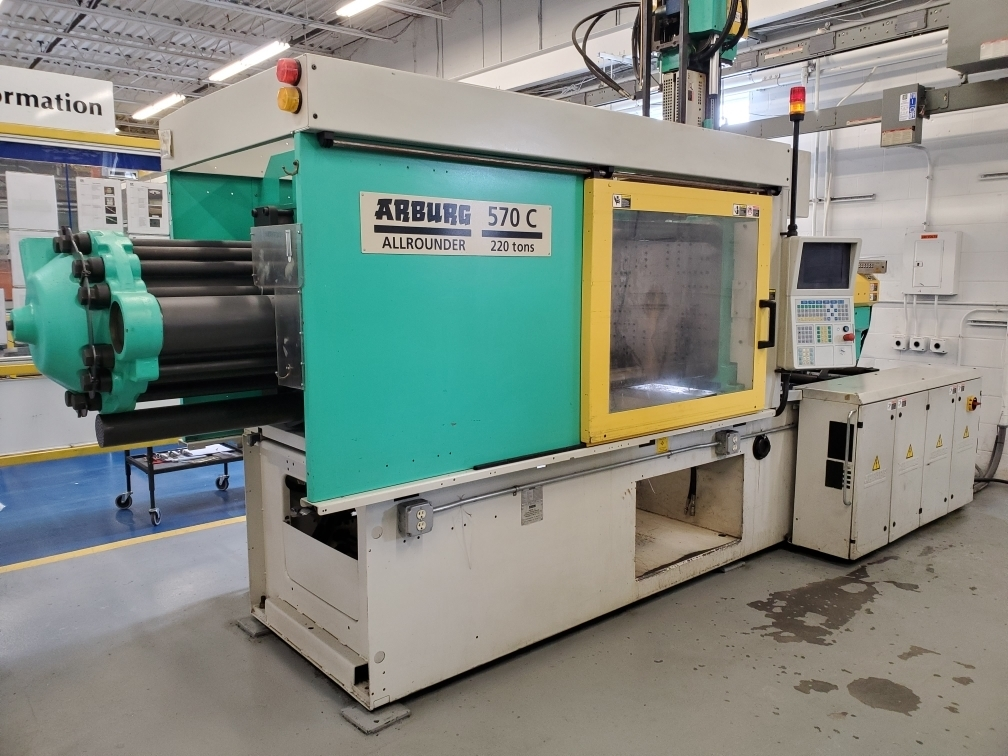

USED 2004 ARBURG 570C 2000 - 350/150
Overview
Description
2 shot "L" Configuration ; Top Mount Second Injection Unit
Rotary Plateb ; included
OPTIONS:
- hi wear screw and barrel
- min mol height increased to 400mm
- 3 core pull
- nozzle heaters in both injection units
- 6 cooling circuits
Specifications
| Type | Hydraulic | Hydraulic |
|---|---|---|
| Clamping Force Tonnage | 242 T | 219.539 t |
| Shot Volume (PS) | 11.4 oz | 323.2 g |
| Secondary Shot Size PS | 2.3 oz | 65.2 g |
| Tie Bar Distance H | 22.4" | 568.96 mm |
| Tie Bar Distance V | 22.4" | 568.96 mm |
| Platen Dimension H | 31.2" | 792.48 mm |
| Platen Dimension V | 31.2" | 792.48 mm |
| Maximum Daylight | 37.4" | 949.96 mm |
| Mold Height Min | 15.74" | 399.8 mm |
| Mold Height Max | 400" | 10,160 mm |
| Power supply Volts | 460 | 460 |
| Injection Orientation | Horz | Horz |
| IMM Type | Multi Shot | Multi Shot |
