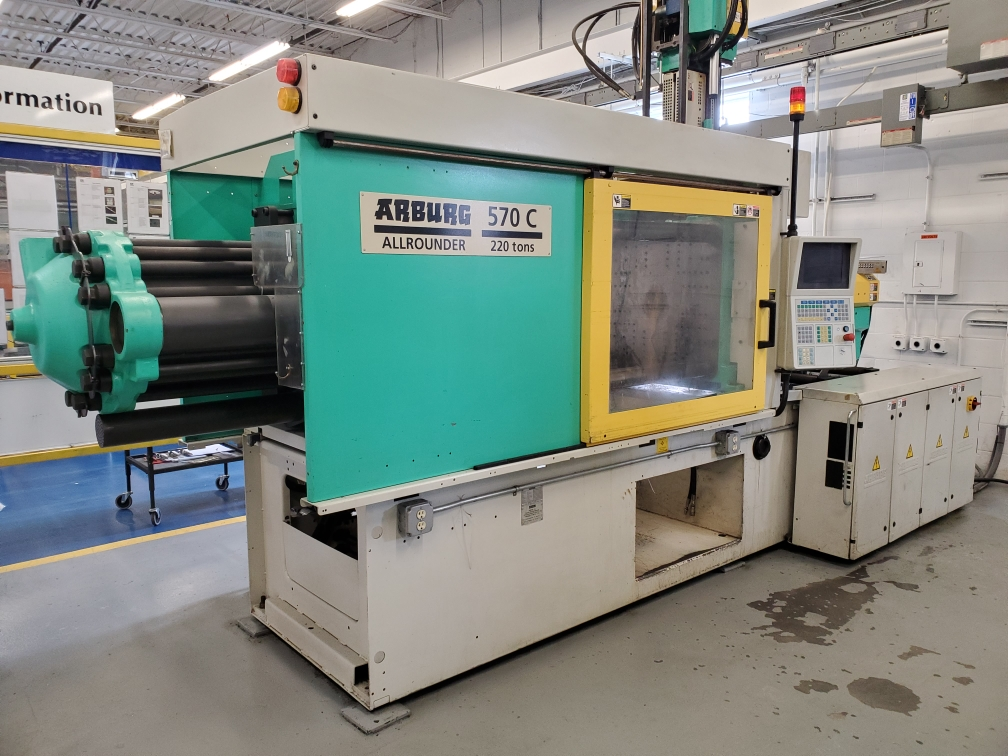

USED 2004 ARBURG 570C 2000-350/150
Overview
Specifications
| Type | Servo Hydraulic | Servo Hydraulic |
|---|---|---|
| Clamping Force Tonnage | 242 T | 219.539 t |
| Shot Volume (PS) | 11.4 oz | 323.2 g |
| Tie Bar Distance H | 22.4" | 568.96 mm |
| Tie Bar Distance V | 22.4" | 568.96 mm |
| Platen Dimension H | 31.2" | 792.48 mm |
| Platen Dimension V | 31.2" | 792.48 mm |
| Maximum Daylight | 37.4" | 949.96 mm |
| Mold Height Min | 15.74" | 399.8 mm |
| IMM Type | Multi Shot | Multi Shot |
Equipped With
2 Shot "L" Configuration Top Mount Second Injection Unit
Rotary Platen Included
OPTIONS:
Hi Wear Screw and Barrel
Min Mold Height Increased to 400mm
3 Core Pull
Nozzle Heaters in Both Injection Units.
6 Cooling Circuits
