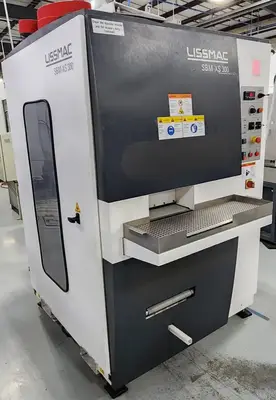

USED 2023 LISSMAC SBM-XS 300

Material Feed (Automatic)

Working Width: 12"
Material Thickness (Min-Max)
Conveyor Speed: 0 - 6.5 FPM
Min. Part Size: 1" x 1"
-
Double Sided Deburring
Max. Part Size: 7.8" x 7.8"
-
Single Sided Deburring
Length of Part: 7.8"
-
G Grinding Unit
Main Drive Motor: 2x 0.75 kW
Current Load Motor: 2x 2.6A
-
Grinding Belt
Width: 2.75"
Length: 39.37"
Length Tolerance: +/- 0.118"
-
E Edge Rounding Unit
Main Drive Motor: 2x 1.5 kW
Current Load Motor: 2x 4.6A
-
General Information & Dust Collector
Voltage: 4809 V / 60 HZ
Rated Load Current: 20A
Total Power Consumption: 15 kWInsulation Class: IP 42
Noise Pressure Level: 78 dB
-
Total Weight: 3500 Lbs
Dimensions: 52" W x 91" D x 75" H
-
Equipped With

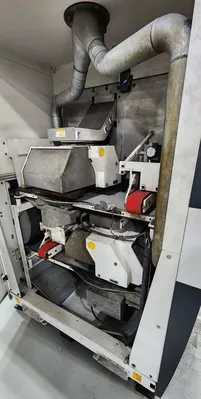

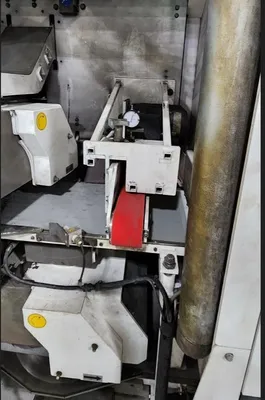

Two Grinding Belts - One on Top and One on Bottom

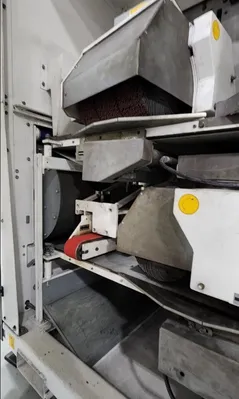

Two Rotating Abrasive Flap Wheels (E-Units) - One on Top and One on Bottom
Magnetic Table
Flip Station for Part in Length up 7.8" (Double Sided Process)

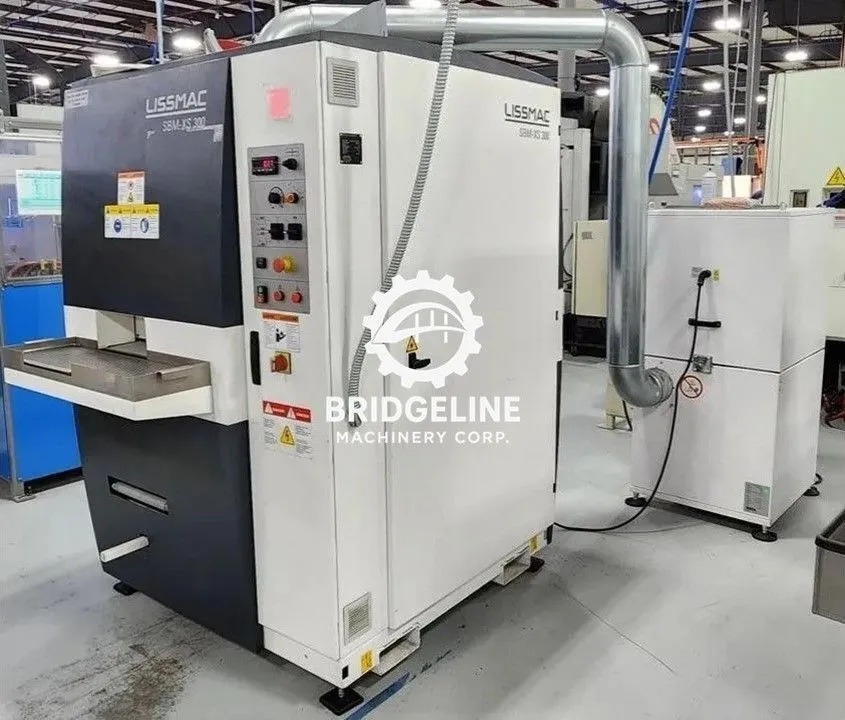

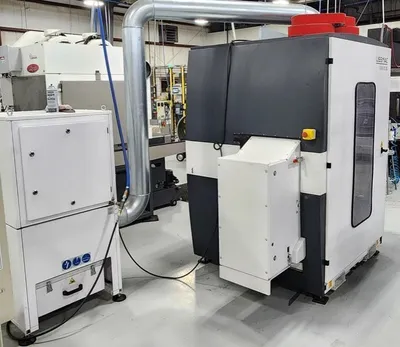

DDE 1500 Dust Collection System
-
As Taken From Service
-
