| Type | All Electric | All Electric |
| Clamping Force Tonnage | 65 T | 58.967 t |
| Shot Volume (PS) | 2.9 oz | 82.2 g |
| Maximum Injection Pressure | 21800 psi | |
| Maximum Holding Pressure | 21800 psi | |
| Tie Bar Distance H | 13.8" | 350.52 mm |
| Tie Bar Distance V | 13.8" | 350.52 mm |
| Platen Dimension H | 21.2" | 538.48 mm |
| Platen Dimension V | 21.2" | 538.48 mm |
| Clamp Stroke | 11.4" | 289.56 mm |
| Maximum Daylight | 26" | 660.4 mm |
| Mold Height Min | 5.9" | 149.86 mm |
| Mold Height Max | 14.5" | 368.3 mm |
| Injection Orientation | Horz | Horz |
| Hours | 57,446 hr. | 57,446 hr. |
| Machine under power | Under Power no Mould in Machine | Under Power no Mould in Machine |
| Control | CNC (Injectvisor V21) | CNC (Injectvisor V21) |
| Dimensions | 12.5 x 3.9 x 5.3 | 12.5 x 3.9 x 5.3 |
| Weight | 6700 | 6700 |

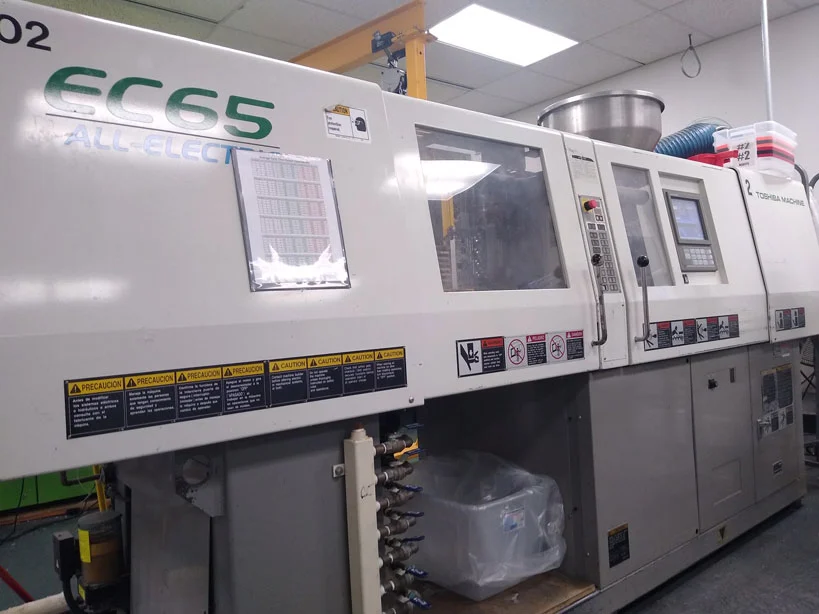

2002 Toshiba EC65 ,65 Ton 2.9 oz
Clamp tonnage…………………………………………………………65
Distance between tie bars………………………...…………….13.8 x 13.8”
Platen size…………………………………………….…………………21.2 x 21.2”
Clamp stroke…………………………………………….……………11.4”
Mold thickness – Min/Max…………….………..………….. .5.9/14.5”
Max. daylight…………………………………………………………….26.0”
Shot size………………………………………………………………… 2.9 oz.
Max. injection pressure……………………………………………21,800 psi
Max. holding pressure…………………….………………………..21,800 psi
Weight……………………………………………………………………..6,700 lbs.
Dimensions……………………………………………………….12.5 x 3.9 x 5.3’H
Equipped with:
Injectvisor V21 enhanced Touch Screen control
Motion/No Motion Circuit
Dual Airblow
Hopper
57,446 Hours Under power
