The printer is in operable condition. It is due for maintenance but will print.

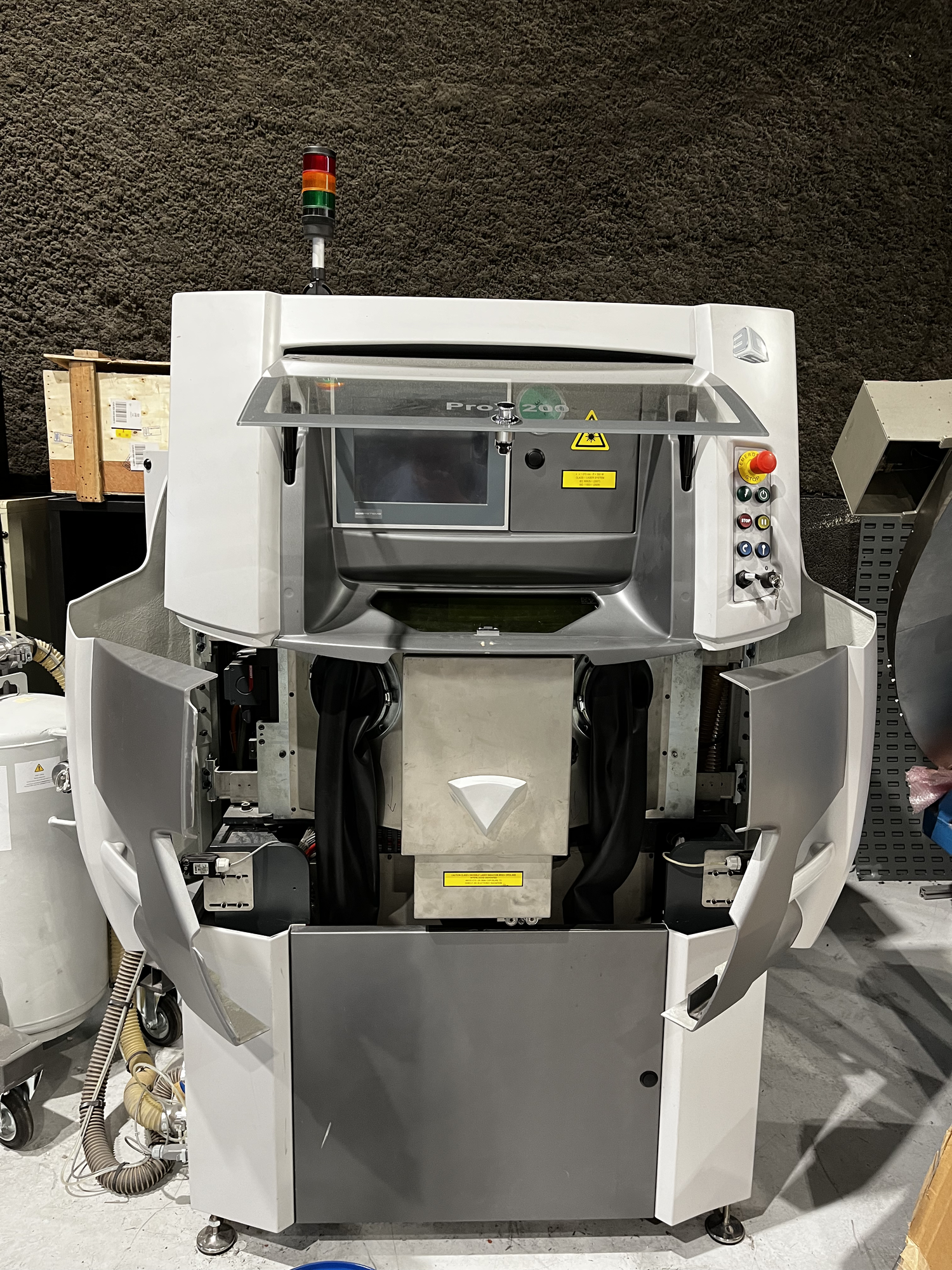

The ProX DMP 200 is a high-performance, high-quality 3D printing alternative to traditional manufacturing processes, offering reduced waste, greater speeds for production, short set up times, very dense metal parts, and the ability to produce very complex assemblies as a single part. This entry level Direct Metal 3D Printer (DMP) uses a broad choice of materials. Manufacture small, complex metal parts in a build volume of 140 x 140 x 125 mm (5.51 x 5.51 x 4.92 in) along with semi-automated material loading and an optional external recycling station.
Specifications
Build volume: (5.51" x 5.51" x 3.94") (140mm x 14mm x 100mm)
Layer thickness: 100 – 50 micron
• Very dense, non-porous parts
• Typical accuracy is +/- 50 μm (+/- 0.002 in) on small parts, +/- 0.2% on large parts
• Repeatability of approximately 20 μm (0.0008 inches)
• Surface finish quality of up to 5 Ra μm (200 Ra micro inches)
• 3DXpert software for fast and easy part preparation, localized print strategies
• Materials with predeveloped parameters
Type:
Direct Metal Laser Sintering
Manufacturer:
3D Systems
Model:
PROX DMP 200
Year:
2016
Serial Number:
1584203
Supported Materials:
Cobalt-Chrome (CoCr), Stainless Steel 17-4 PH, Aluminum Alloy AlSi12, Stainless Steel 420 Bronze Infused, Aluminum AlSi10Mg
Metals Included:
PAC 316L Stainless Steel
