| Type | All Electric | All Electric |
| Clamping Force Tonnage | 310 T | 281.228 t |
| Shot Volume (PS) | 15.4 oz | 436.6 g |
| Tie Bar Distance H | 28.7" | 728.98 mm |
| Tie Bar Distance V | 28.7" | 728.98 mm |
| Platen Dimension H | 40.5" | 1,028.7 mm |
| Platen Dimension V | 40.5" | 1,028.7 mm |
| Clamp Stroke | 25.6" | 650.24 mm |
| Maximum Daylight | 12.6" | 320.04 mm |
| Mold Height Min | 5.9" | 149.86 mm |
| Mold Height Max | 5.9" | 149.86 mm |
| Ejector Stroke | 5.9" | 149.86 mm |
| Injection Orientation | Horz | Horz |
| Control | CNC (Injectvisor V21) | CNC (Injectvisor V21) |
| Dimensions | 24L x 6.2W x 6.7H | 24L x 6.2W x 6.7H |
| Weight | 36600 lbs | 36600 lbs |
SPEC INFORMATION:

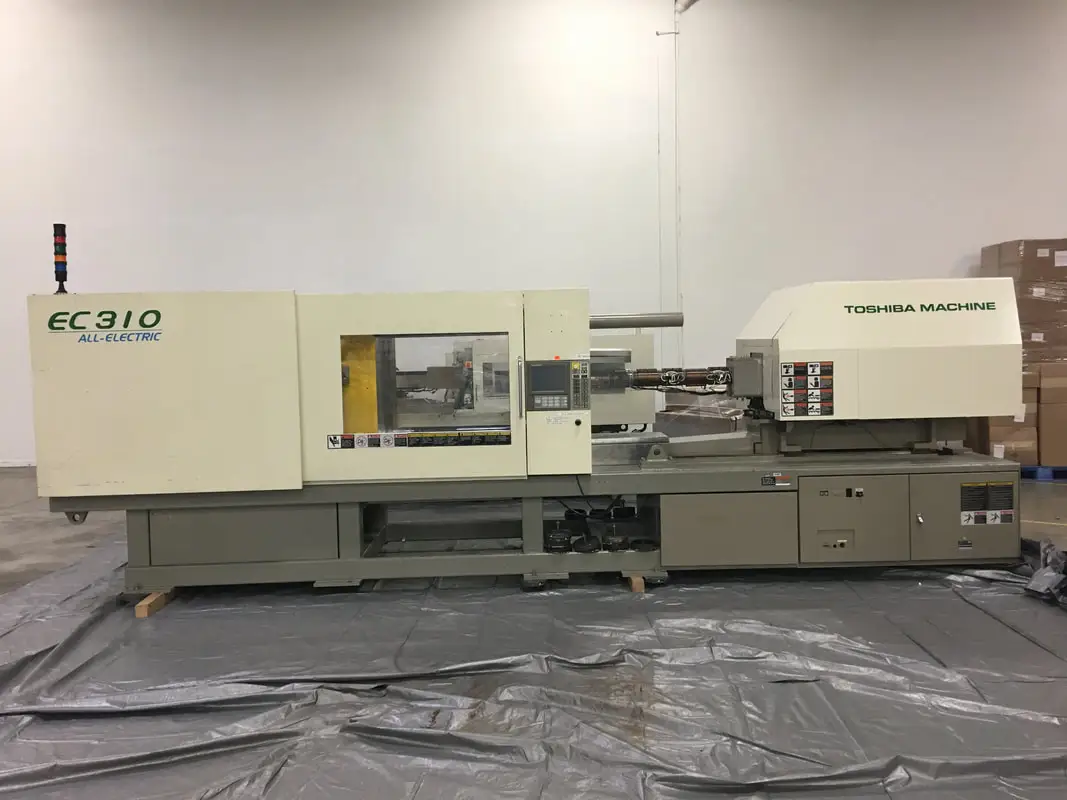

MODEL: EC310V21-8B
TONNAGE: 310 TON
SHOT SIZE: 15.4 OZ
PLATEN DIMENSIONS: 40.5." x 40.5"
TIE BAR SPACING: 28.7" x 28.7"
CLAMP FORCE: 308"
CLAMP STROKE: 25.6"
EJECTOR FORCE: 6.6"
EJECTOR STROKE: 5.9"
MIN/MAX DAYLIGHT: 5.9"/12.6"
MACHINE DIMENSIONS : 24 L x 6.2 W X 6.7H
MACHINE WEIGHT: 36,600 LBS
EQUIPPED WITH:
INJECTVISOR V21 CONTROL
