| Type | All Electric | All Electric |
| Clamping Force Tonnage | 45 T | 40.823 t |
| Barrel Code | 1.5Y | 1.5Y |
| Shot Volume (PS) | 1.8 oz | 51 g |
| Tie Bar Distance H | 12.6" | 320.04 mm |
| Tie Bar Distance V | 12.6" | 320.04 mm |
| Platen Dimension H | 18.1" | 459.74 mm |
| Platen Dimension V | 18.1" | 459.74 mm |
| Clamp Stroke | 9.8" | 248.92 mm |
| Maximum Daylight | 12.6" | 320.04 mm |
| Mold Height Min | 5.9" | 149.86 mm |
| Ejector Stroke | 2.4" | 60.96 mm |
| Injection Orientation | Horz | Horz |
| Control | CNC (INJECTVISOR V30) | CNC (INJECTVISOR V30) |
| Dimensions | 12.1L x 3.6W x 5.2H | 12.1L x 3.6W x 5.2H |
| Weight | 22000 LBS | 22000 LBS |
SPEC INFORMATION:

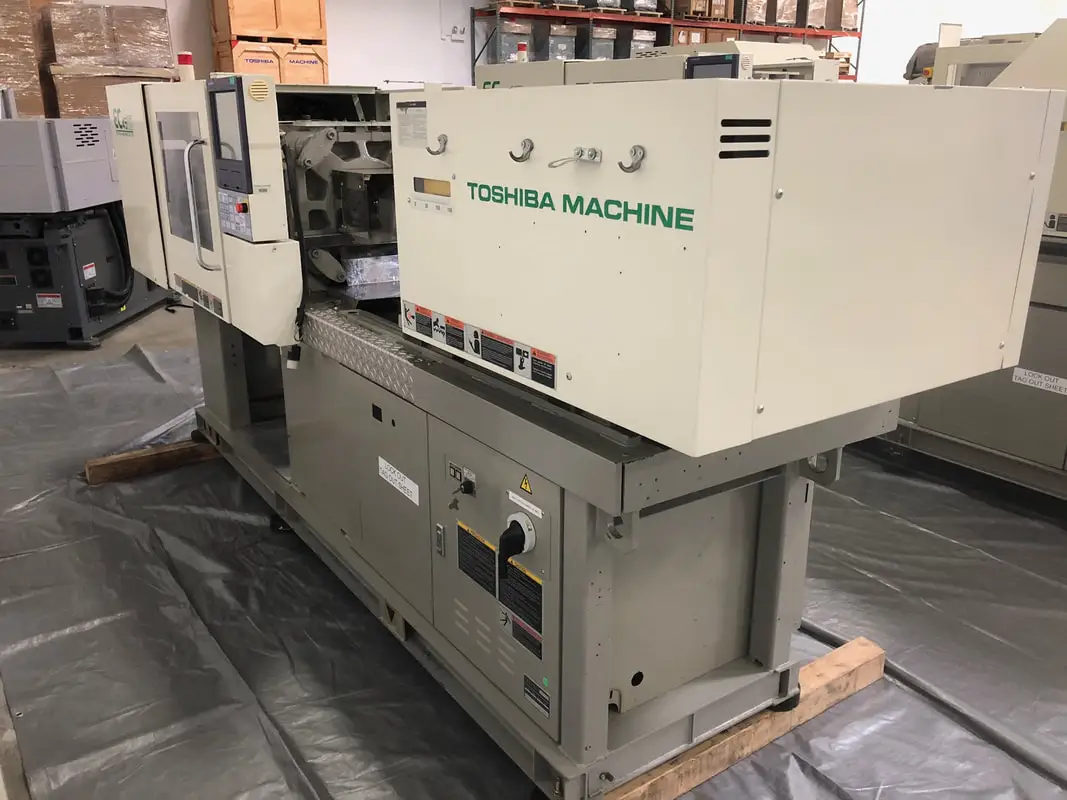

MODEL: EC45NIIV30 1.5Y
TONNAGE: 45 TON
SHOT SIZE: 1.8 OZ/PS
PLATEN DIMENSIONS: 18.1." x 18.1"
TIE BAR SPACING: 12.6" x 12.6"
CLAMP STROKE: 9.8"
EJECTOR STROKE: 2.4"
MIN/MAX DAYLIGHT: 5.9"/12.6"
Machine DIMENSIONS/Weight : 12.1 L x 3.6 W 5.2 H/22,000LBS
EQUIPPED WITH:
INJECTVISOR V30 CONTROL
SPI Robot 32
Air Blow – Dual
Valve Gate Signal
