| Type | All Electric | All Electric |
| Clamping Force Tonnage | 610 T | 553.383 t |
| Barrel Code | AT | AT |
| Shot Volume (PS) | 61 oz | 1,729.3 g |
| Tie Bar Distance H | 37.8" | 960.12 mm |
| Tie Bar Distance V | 35.4" | 899.16 mm |
| Platen Dimension H | 53.7" | 1,364 mm |
| Platen Dimension V | 51.2" | 1,300.5 mm |
| Clamp Stroke | 35.4" | 899.16 mm |
| Maximum Daylight | 66.9" | 1,699.3 mm |
| Mold Height Min | 15.7" | 398.78 mm |
| Mold Height Max | 31.5" | 800.1 mm |
| Injection Orientation | Horz | Horz |
| Control | CNC (V50) | CNC (V50) |

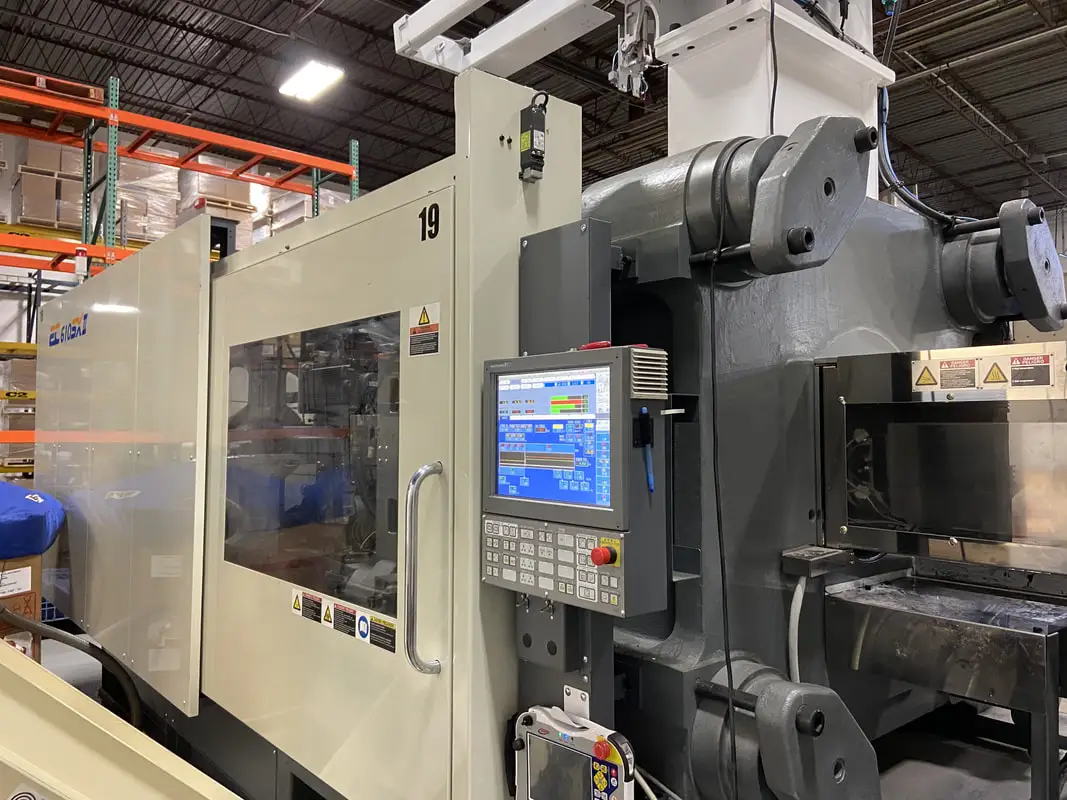

2018 EC610SXV50-36AT
MODEL: EC610SXV50-36AT
TONNAGE: 610 TON
SHOT SIZE: 61 OZ
PLATEN SIZE: 53.7" x 51.2"
TIE BAR SPACING: 37.8" x 35.4"
CLAMP STROKE: 35.4"
MIN/MAX MOLD HEIGHT: 15.7"/31.5"
MAX DAYLIGHT: 66.9"
CONTROL: V50
EQUIPPED WITH:
DUAL AIR BLOW
ROBOT INTERFACE
2018 Star SAII-1400-3 Servo Robot Included
