| Clamping Force Tonnage | 610 T | 553.383 t |
| Shot Volume (PS) | 105 oz | 2,976.7 g |
| Tie Bar Distance H | 36" | 914.4 mm |
| Tie Bar Distance V | 33.9" | 861.06 mm |
| Platen Dimension H | 53" | 1,346.2 mm |
| Platen Dimension V | 50.4" | 1,280.2 mm |
| Maximum Daylight | 65" | 1,651 mm |
| Mold Height Max | 31.5" | 800.1 mm |
| Ejector Stroke | 9.8" | 248.92 mm |
| Control | CNC (CC100A03) | CNC (CC100A03) |
| Dimensions | 15'5'' x 6'6'' x 8', 15'3'' x 8'2'' x 8'8'' | 15'5'' x 6'6'' x 8', 15'3'' x 8'2'' x 8'8'' |
| Weight | 22000 lbs, 44000 lbs | 22000 lbs, 44000 lbs |
SPECIFICATIONS:

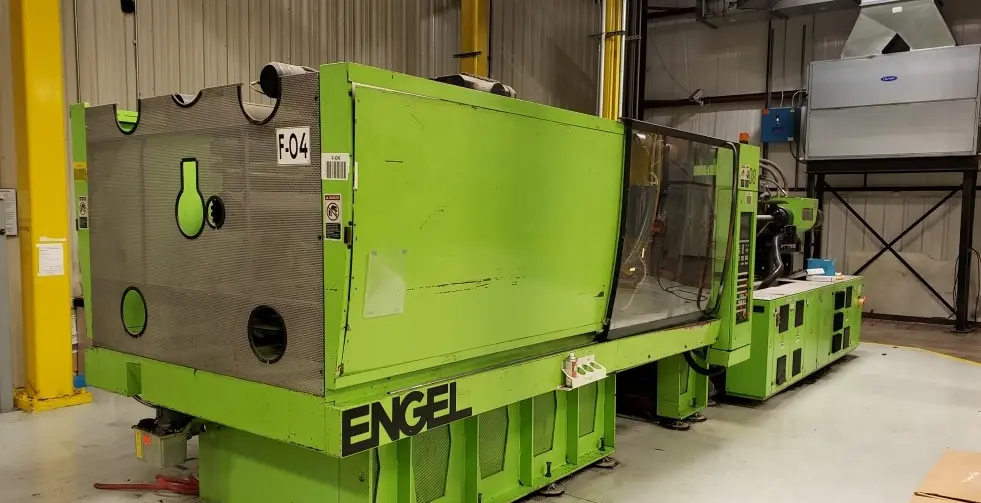

MODEL: CL 4550/610US
YEAR: 2005
MAKE: ENGEL
TONNAGE: 610 Ton
MOLD HEIGHT: 31.5”
DAYLIGHT (MIN-MAX): 65”
PLATEN SIZE: 53” x 50.4”
TIE BAR SPACING: 36” x 33.9”
HYDRAULIC EJECTOR STROKE: 9.8”
SHOT SIZE: 105 oz
CAPACITY: 610 Ton
CONTROL: CC100A03
INJECTION UNIT DIMENSIONS: 15’5” x 6’6” x 8’
INJECTION UNIT WEIGHT: 22,000 lbs
CLAMP UNIT DIMENSIONS: 15’3” x 8’2” x 8’8”
CLAMP UNIT WEIGHT: 44,000 lbs
EQUIPPED WITH:
Hydraulic knockout
