| Clamping Force Tonnage | 500 T | 453.593 t |
| Shot Volume (PS) | 50.6 oz | 1,434.5 g |
| Tie Bar Distance H | 34.62" | 879.35 mm |
| Tie Bar Distance V | 33.4" | 848.36 mm |
| Platen Dimension H | 47.8" | 1,214.1 mm |
| Platen Dimension V | 47.24" | 1,199.9 mm |
| Clamp Stroke | 27.56" | 700.02 mm |
| Maximum Daylight | 61.5" | 1,562.1 mm |
| Mold Height Min | 11.8" | 299.72 mm |
| Ejector Stroke | 9.45" | 240.03 mm |
| Power supply Volts | 460 | 460 |
| Injection Orientation | Horz | Horz |
| Control | CNC | CNC |
| Dimensions | 385 x 88 x 101 | 385 x 88 x 101 |
| Weight | 57300 | 57300 |

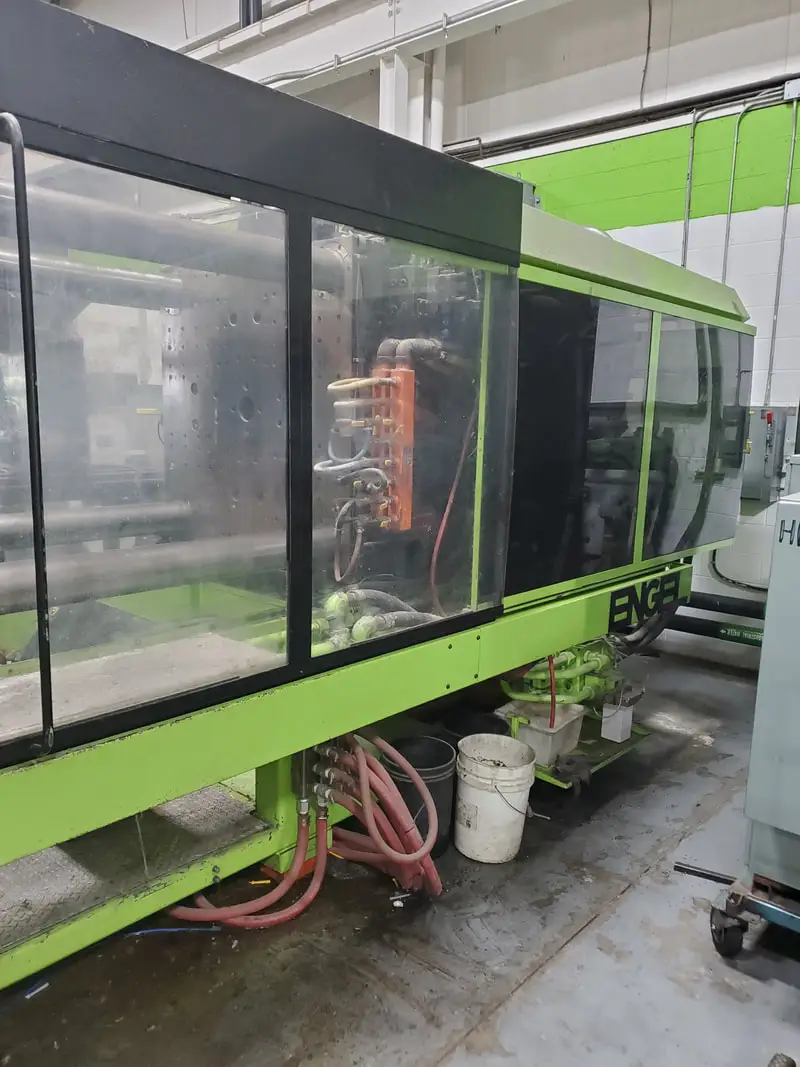

2000 ENGEL ES2750/500AH
MODEL: ES2750/500AH
TONNAGE: 500 TON
SHOT SIZE: 50.6 OZ
PLATEN DIMENSIONS: 47.8" x 47.24"
TIE BAR SPACING: 34.62" x 33.4"
CLAMP STROKE: 27.56"
EJECTOR STROKE: 9.45"
MIN/MAX DAYLIGHT: 11.8"/61.50"
DIMENSIONS/Weight : 385"L x 88 W 101 H/57,300 LBS
EQUIPPED WITH:
CC100 A03
Volt 460
