| Type | Hydraulic | Hydraulic |
| Clamping Force Tonnage | 750 T | 680.389 t |
| Shot Volume (PS) | 176.2 oz | 4,995.2 g |
| Tie Bar Distance H | 45" | 1,143 mm |
| Tie Bar Distance V | 45" | 1,143 mm |
| Platen Dimension H | 64.3" | 1,633.2 mm |
| Platen Dimension V | 66.73" | 1,694.9 mm |
| Clamp Stroke | 35.43" | 899.92 mm |
| Maximum Daylight | 75.59" | 1,920 mm |
| Mold Height Min | 15.75" | 400.05 mm |
| Ejector Stroke | 9.84" | 249.94 mm |
| Power supply Volts | 60 | 60 |
| Main Breaker Electric Capacity | 10000 | 10000 |
| Injection Orientation | Horz | Horz |
| Control | CNC | CNC |
| Dimensions | 475 L x 128 W x 102 H | 475 L x 128 W x 102 H |
| Weight | 87000 lbs | 87000 lbs |

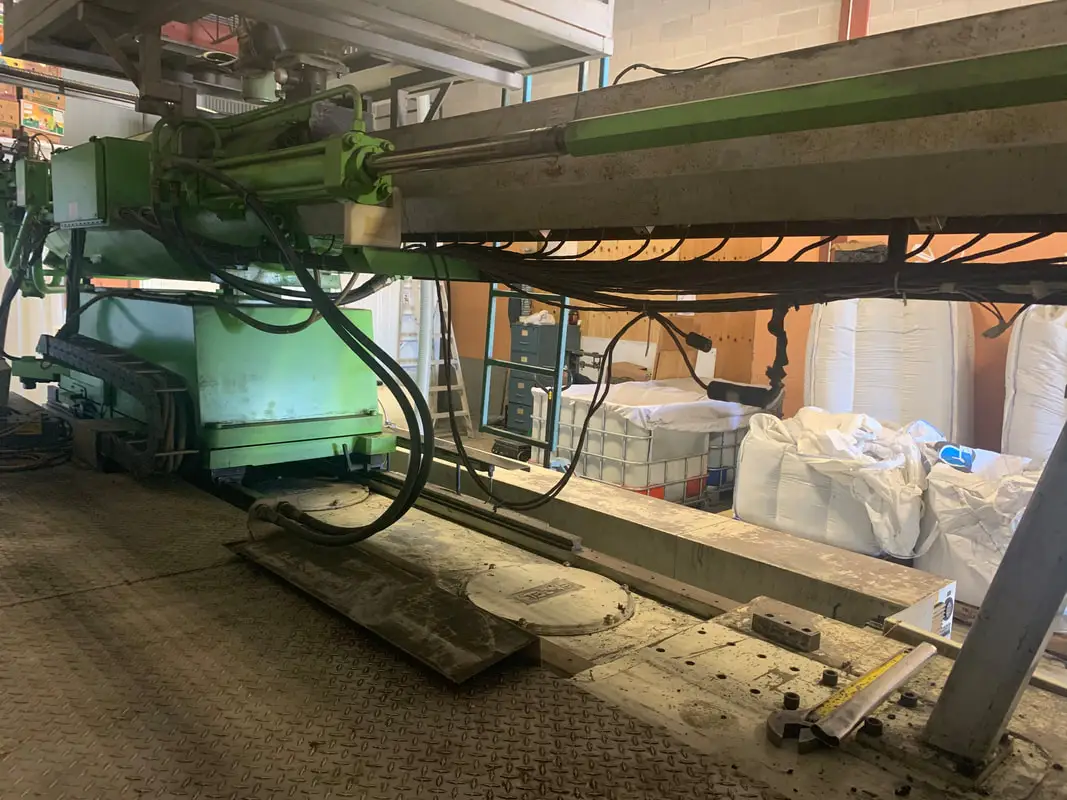

1997 ENGEL ES750
MODEL: ES7000/750WP
TONNAGE: 750 TON
SHOT SIZE: 176.2 OZ OZ
PLATEN DIMENSIONS (H X V): 64.30" x 66.73"
TIE BAR SPACING (H X V): 45.00" x 45.00"
CLAMP STROKE MAX: 35.43"
HYDROLIC EJECTOR STROKE: 9.84"
HYDROLIC EJECTOR FORCE: 12.4"
MIN/MAX DAYLIGHT: 15.75"/75.59"
MACHINE DIMENSIONS : 475" L x 128" W 102" H
MACHINE WEIGHT: 87000/46000 LBS
EQUIPPED WITH:
INPUT DRIVE: 60 HZ
INPUT PROCESS HEAT: 60 HZ
INTERRUPTING CAPACITY: 10,000 AMPS
