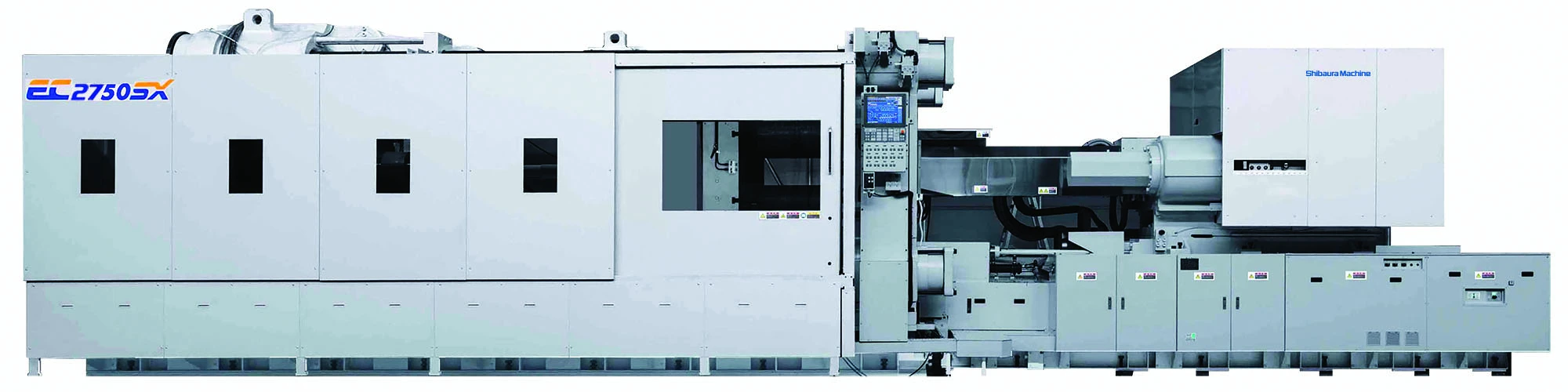

NEW Shibaura Machine EC2750SXIIIV70-i215 A
Overview
Description
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market.
Specifications
| Type | All Electric | All Electric |
|---|---|---|
| Clamping Force Tonnage | 2750 | 2,494.761 t |
| Barrel Code | A | A |
| Shot Volume (PS) | 384 oz | 10,886.2 g |
| Shot Volume (PE) | 304 oz | 8,618.2 g |
| Screw Diameter | 5.51" | 139.95 mm |
| Maximum Injection Pressure | 26100 psi | |
| Maximum Holding Pressure | 21700 psi | |
| Screw Speed STD | 90 rpm | 90 RPM |
| Screw Speed High Torque | 78 rpm | 78 RPM |
| Injection Rate STD | 2000 cm3/sec | 56.6 m³/min. |
| Screw Torque STD | 9150 NxM | 9150 NxM |
| Screw Torque High Speed | 15900 NxM | 15900 NxM |
| Plasticizing Capacity (PS) STD | 192 g/sec | 5,443.1 g |
| Nozzle Touch Force | 15.9 T | 14.424 t |
| Tie Bar Distance H | 83.4" | 2,118.4 mm |
| Tie Bar Distance V | 71.5" | 1,816.1 mm |
| Platen Dimension H | 118.1" | 2,999.7 mm |
| Platen Dimension V | 92.5" | 2,349.5 mm |
| Clamp Stroke | 70.8" | 1,798.3 mm |
| Maximum Daylight | 137.7" | 3,497.6 mm |
| Mold Height Min | 31.5" | 800.1 mm |
| Mold Height Max | 66.9" | 1,699.3 mm |
| Ejector Force | 48.5 T | 43.999 t |
| Ejector Stroke | 13.7" | 347.98 mm |
| Power supply Volts | 230 | 230 |
| Main Breaker Electric Capacity | 700 va | |
| Heater Capacity | 85 kw | 85 kW |
| Control | CNC (V70) | CNC (V70) |
| Dimensions | 53.5 x 15.1 x 13.2 Feet | 53.5 x 15.1 x 13.2 Feet |
| Weight | 221 US Ton | 221 US Ton |
