| Clamping Force Tonnage | 1,000 T | 907.186 t |
| Shot Volume (PS) | 185 oz | 5,244.7 g |
| Maximum Injection Pressure | 19820 psi | |
| Tie Bar Distance H | 50" | 1,270 mm |
| Tie Bar Distance V | 50" | 1,270 mm |
| Platen Dimension H | 66.93" | 1,700 mm |
| Platen Dimension V | 66.93" | 1,700 mm |
| Clamp Stroke | 55.11" | 1,399.8 mm |
| Maximum Daylight | 102.35" | 2,599.7 mm |
| Ejector Force | 47.6 T | 43.182 t |
| Ejector Stroke | 7.87" | 199.9 mm |
| Control | CNC | CNC |

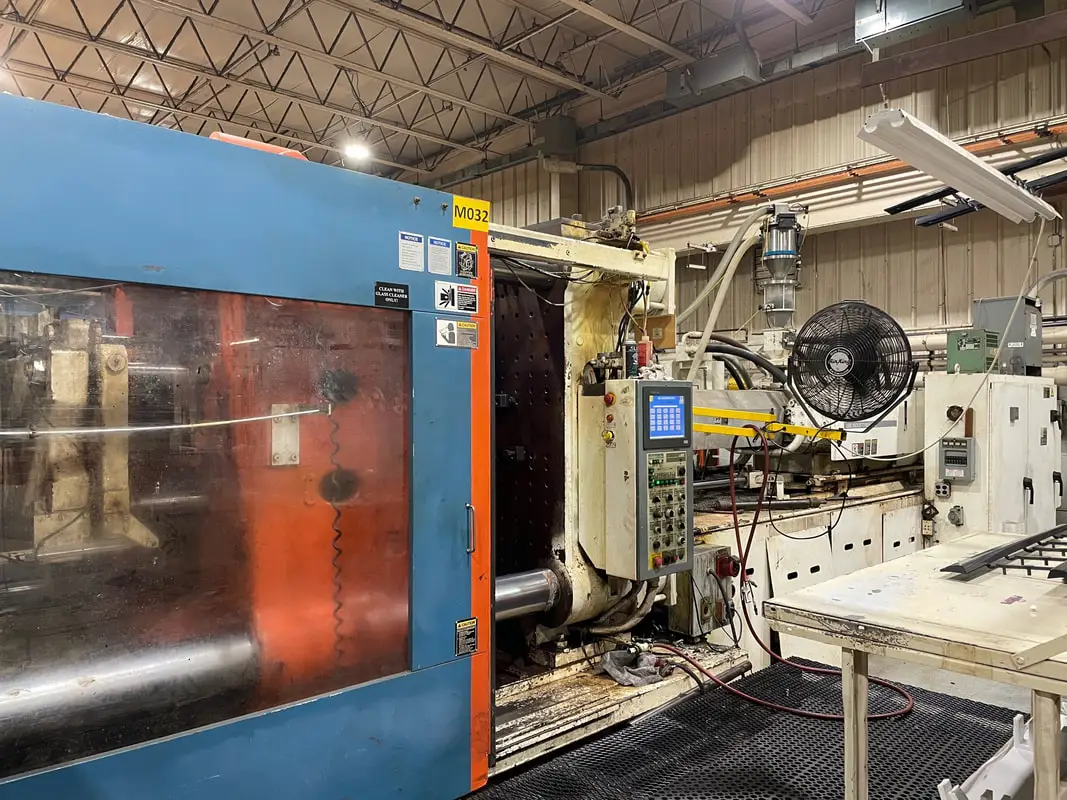

1999 UBE UM 1000ton
MODEL: UM1000US
TONNAGE: 1000 ton
SHOT SIZE: i80 (185 oz)
PLATEN DIMENSIONS: 66.93 x 66.93
TIE BAR SPACING: 50.00 x 50.00
CLAMPING STROKE: 55.11
DAYLIGHT STANDARD: 74.80 ~ 102.35 inch
EJECTION FORCE: 47.6 uston
EJECTOR STROKE: 7.87 inch
INJECTION PRESSURE: 19,820 psi
INJECTION RATE: 64.20
