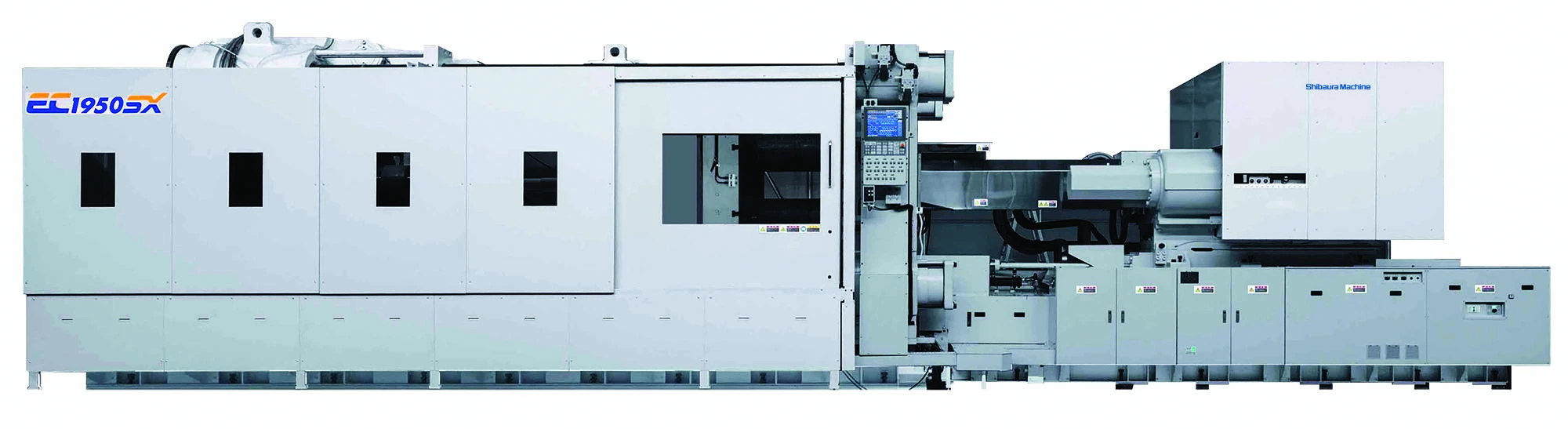

NEW Shibaura Machine EC1950SXIIIV70-i120 B
Overview
Description
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Specifications
| Type | All Electric | All Electric |
|---|---|---|
| Clamping Force Tonnage | 1950 | 1,799.857 t |
| Barrel Code | B | B |
| Shot Volume (PS) | 252 oz | 7,144.1 g |
| Shot Volume (PE) | 200 oz | 5,669.9 g |
| Screw Diameter | 4.92" | 124.97 mm |
| Maximum Injection Pressure | 22000 psi | |
| Maximum Holding Pressure | 18400 psi | |
| Screw Speed STD | 101 rpm | 101 RPM |
| Screw Speed High Torque | 78 rpm | 78 RPM |
| Injection Rate STD | 1710 cm3/sec | 48.4 m³/min. |
| Screw Torque STD | 9150 NxM | 9150 NxM |
| Screw Torque High Speed | 13700 NxM | 13700 NxM |
| Plasticizing Capacity (PS) STD | 161 g/sec | 4,564.3 g |
| Plasticizing Capacity (PS) High Torque | 122 g/sec | 3,458.6 g |
| Nozzle Touch Force | 10.4 T | 9.435 t |
| Tie Bar Distance H | 72.8" | 1,849.1 mm |
| Tie Bar Distance V | 65.4" | 1,661.2 mm |
| Platen Dimension H | 102.4" | 2,601 mm |
| Platen Dimension V | 92.5" | 2,349.5 mm |
| Clamp Stroke | 66.9" | 1,699.3 mm |
| Maximum Daylight | 126" | 3,200.4 mm |
| Mold Height Min | 31.5" | 800.1 mm |
| Mold Height Max | 59.1" | 1,501.1 mm |
| Ejector Force | 48.5 T | 43.999 t |
| Ejector Stroke | 11.8" | 299.72 mm |
| Power supply Volts | 230 | 230 |
| Main Breaker Electric Capacity | 500 va | |
| Heater Capacity | 67.9 kw | 67.9 kW |
| Control | CNC (V70) | CNC (V70) |
| Dimensions | 45.1 x 12.5 x 11.6 Feet | 45.1 x 12.5 x 11.6 Feet |
| Weight | 145 US Ton | 145 US Ton |
