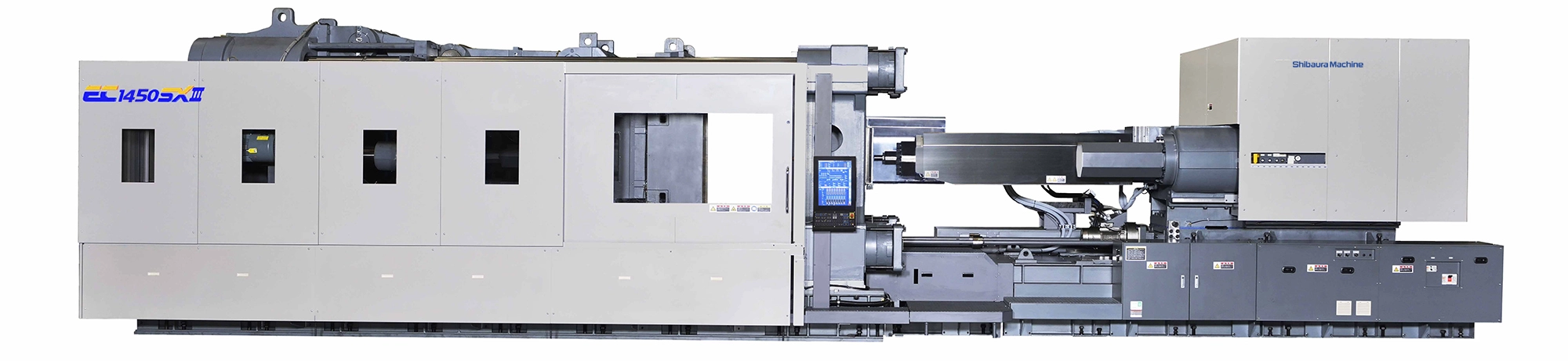

NEW Shibaura Machine EC1450SXIIIV70-i155 A
Overview
Description
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Specifications
| Type | All Electric | All Electric |
|---|---|---|
| Clamping Force Tonnage | 1450 | 1,299.997 t |
| Barrel Code | A | A |
| Shot Volume (PS) | 273.5 oz | 7,753.6 g |
| Shot Volume (PE) | 216.9 oz | 6,149 g |
| Screw Diameter | 4.92" | 124.97 mm |
| Maximum Injection Pressure | 26100 psi | |
| Maximum Holding Pressure | 21700 psi | |
| Screw Speed STD | 101 rpm | 101 RPM |
| Screw Speed High Torque | 127 rpm | 127 RPM |
| Injection Rate STD | 1650 cm3/sec | 46.7 m³/min. |
| Screw Torque STD | 14500 NxM | 14500 NxM |
| Screw Torque High Speed | 9260 NxM | 9260 NxM |
| Plasticizing Capacity (PS) STD | 164 g/sec | 4,649.3 g |
| Plasticizing Capacity (PS) High Torque | 178 g/sec | 5,046.2 g |
| Nozzle Touch Force | 10.4 T | 9.435 t |
| Tie Bar Distance H | 55.1" | 1,399.5 mm |
| Tie Bar Distance V | 55.1" | 1,399.5 mm |
| Platen Dimension H | 78.7" | 1,999 mm |
| Platen Dimension V | 78.7" | 1,999 mm |
| Clamp Stroke | 59" | 1,498.6 mm |
| Maximum Daylight | 110.2" | 2,799.1 mm |
| Mold Height Min | 25.6" | 650.24 mm |
| Mold Height Max | 51.2" | 1,300.5 mm |
| Ejector Force | 31.4 T | 28.486 t |
| Ejector Stroke | 9.8" | 248.92 mm |
| Power supply Volts | 230 | 230 |
| Main Breaker Electric Capacity | 500 va | |
| Heater Capacity | 67.9 kw | 67.9 kW |
| Control | CNC (V70) | CNC (V70) |
| Dimensions | 42.9 x 10.5 x 11.2 Feet | 42.9 x 10.5 x 11.2 Feet |
| Weight | 113 US Ton | 113 US Ton |
