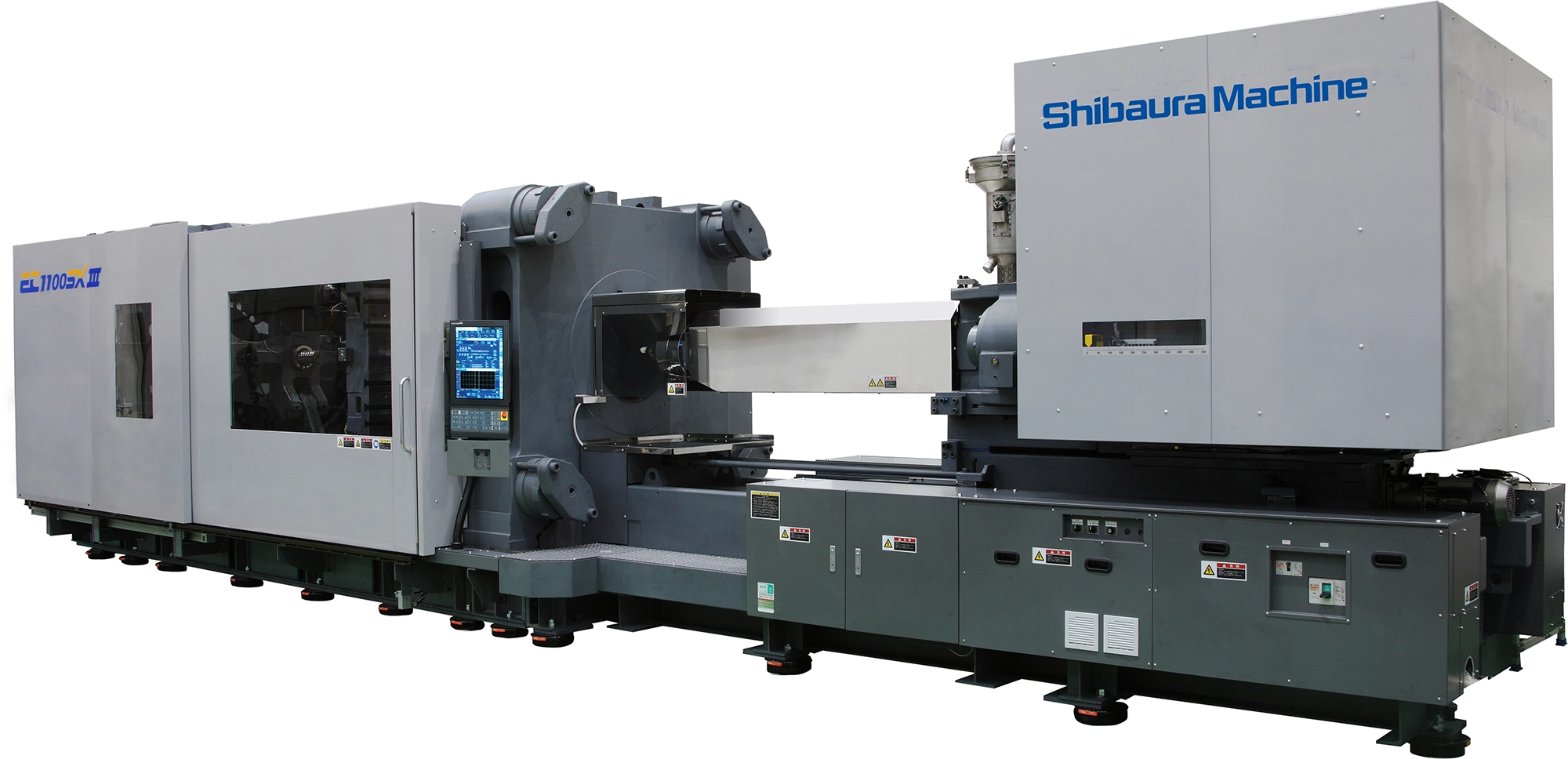

NEW Shibaura Machine EC1100SXIIIV70-i120 B
Overview
Description
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Specifications
| Type | All Electric | All Electric |
|---|---|---|
| Clamping Force Tonnage | 1100 | 999.719 t |
| Barrel Code | B | B |
| Shot Volume (PS) | 251.5 oz | 7,129.9 g |
| Shot Volume (PE) | 199.7 oz | 5,661.4 g |
| Screw Diameter | 4.92" | 124.97 mm |
| Maximum Injection Pressure | 22000 psi | |
| Maximum Holding Pressure | 18400 psi | |
| Screw Speed STD | 101 rpm | 101 RPM |
| Screw Speed High Torque | 78 rpm | 78 RPM |
| Injection Rate STD | 1710 cm3/sec | 48.4 m³/min. |
| Screw Torque STD | 9150 NxM | 9150 NxM |
| Screw Torque High Speed | 13700 NxM | 13700 NxM |
| Plasticizing Capacity (PS) STD | 161.1 g/sec | 4,567.1 g |
| Plasticizing Capacity (PS) High Torque | 122.2 g/sec | 3,464.3 g |
| Nozzle Touch Force | 10.4 T | 9.435 t |
| Tie Bar Distance H | 51.1" | 1,297.9 mm |
| Tie Bar Distance V | 51.1" | 1,297.9 mm |
| Platen Dimension H | 70.4" | 1,788.2 mm |
| Platen Dimension V | 70.4" | 1,788.2 mm |
| Clamp Stroke | 47.2" | 1,198.9 mm |
| Maximum Daylight | 90.6" | 2,301.2 mm |
| Mold Height Min | 19.7" | 500.38 mm |
| Mold Height Max | 43.3" | 1,099.8 mm |
| Ejector Force | 19.8 T | 17.962 t |
| Ejector Stroke | 7.9" | 200.66 mm |
| Power supply Volts | 230 | 230 |
| Main Breaker Electric Capacity | 400 va | |
| Heater Capacity | 69.4 kw | 69.4 kW |
| Control | CNC (V70) | CNC (V70) |
| Dimensions | 38.4 x 9.5 x 9.5 Feet | 38.4 x 9.5 x 9.5 Feet |
| Weight | 73.9 US Ton | 73.9 US Ton |
