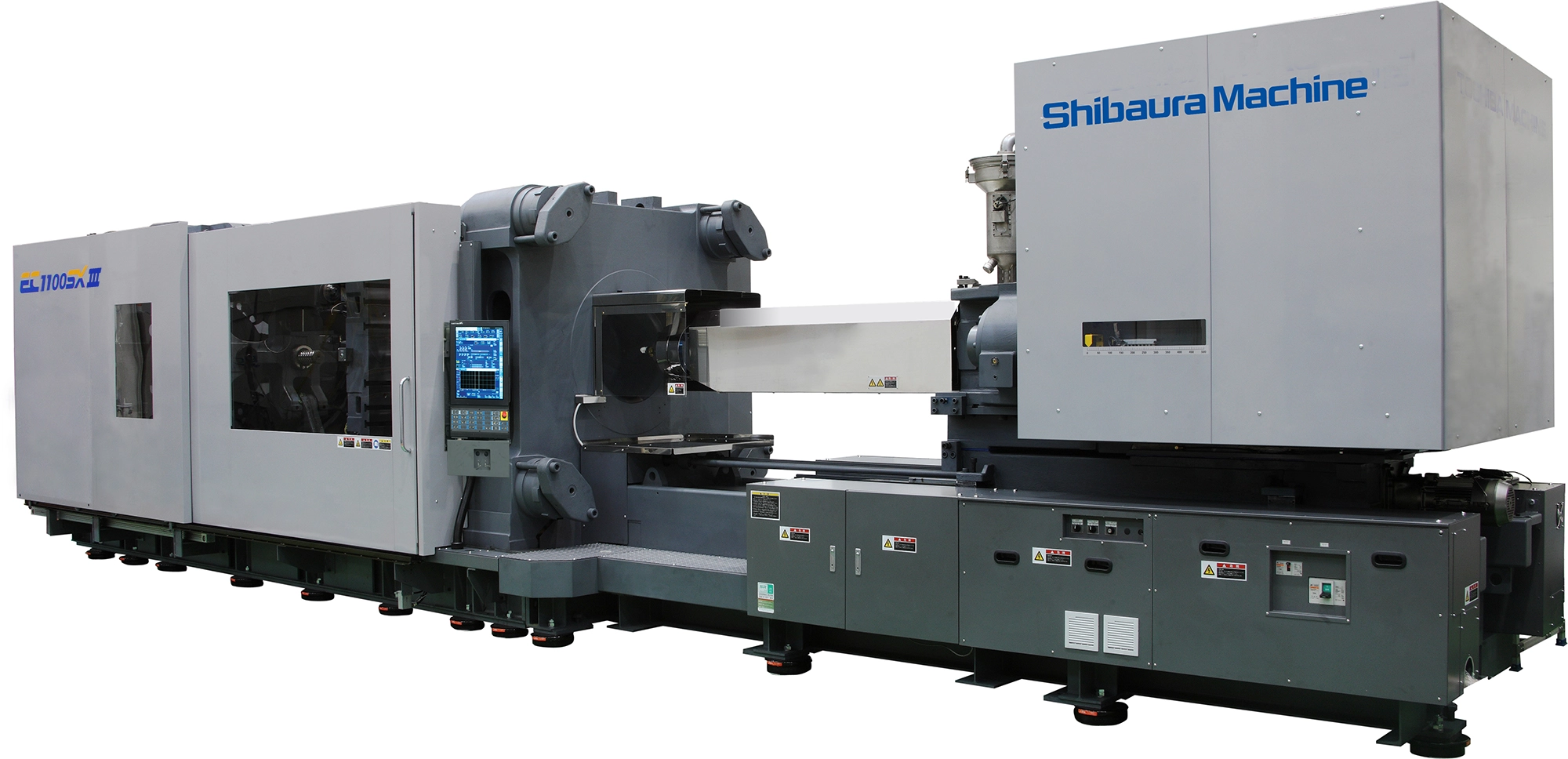

NEW Shibaura Machine EC1100SXIIIV70-i78 B
Overview
Description
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Specifications
| Type | All Electric | All Electric |
|---|---|---|
| Clamping Force Tonnage | 1100 | 999.719 t |
| Barrel Code | B | B |
| Shot Volume (PS) | 183.4 oz | 5,199.3 g |
| Shot Volume (PE) | 145.3 oz | 4,119.2 g |
| Screw Diameter | 4.72" | 119.89 mm |
| Maximum Injection Pressure | 20000 psi | |
| Maximum Holding Pressure | 16700 psi | |
| Screw Speed STD | 110 rpm | 110 RPM |
| Screw Speed High Torque | 71 rpm | 71 RPM |
| Injection Rate STD | 1696 cm3/sec | 48 m³/min. |
| Screw Torque STD | 7090 NxM | 7090 NxM |
| Screw Torque High Speed | 10300 NxM | 10300 NxM |
| Plasticizing Capacity (PS) STD | 161.1 g/sec | 4,567.1 g |
| Plasticizing Capacity (PS) High Torque | 102.8 g/sec | 2,914.3 g |
| Nozzle Touch Force | 6.6 T | 5.987 t |
| Tie Bar Distance H | 51.1" | 1,297.9 mm |
| Tie Bar Distance V | 51.1" | 1,297.9 mm |
| Platen Dimension H | 70.4" | 1,788.2 mm |
| Platen Dimension V | 70.4" | 1,788.2 mm |
| Clamp Stroke | 47.2" | 1,198.9 mm |
| Maximum Daylight | 90.6" | 2,301.2 mm |
| Mold Height Min | 19.7" | 500.38 mm |
| Mold Height Max | 43.3" | 1,099.8 mm |
| Ejector Force | 19.8 T | 17.962 t |
| Ejector Stroke | 7.9" | 200.66 mm |
| Power supply Volts | 230 | 230 |
| Main Breaker Electric Capacity | 350 va | |
| Heater Capacity | 57.2 kw | 57.2 kW |
| Control | CNC (V70) | CNC (V70) |
| Dimensions | 35.8 x 9.5 x 9.2 Feet | 35.8 x 9.5 x 9.2 Feet |
| Weight | 62.8 US Ton | 62.8 US Ton |
