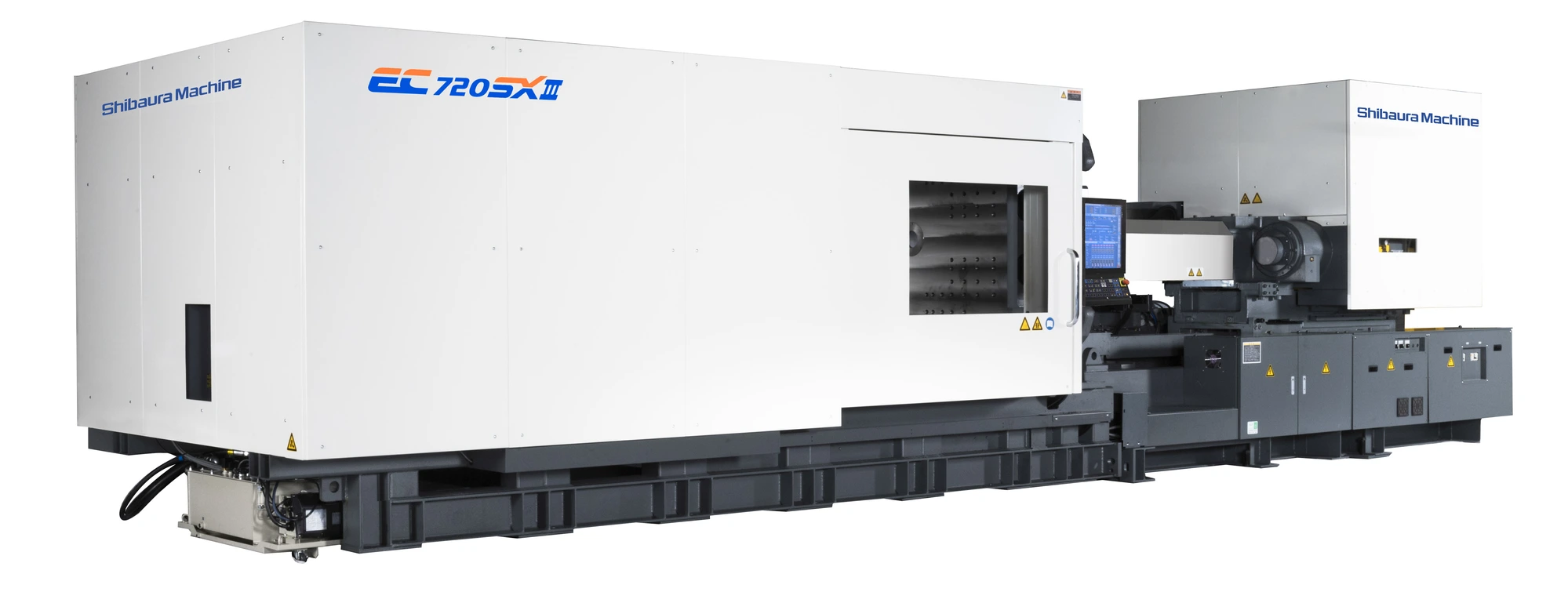

NEW Shibaura Machine EC720SXIIIV70-i61 AT
Overview
Description
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Specifications
| Type | All Electric | All Electric |
|---|---|---|
| Clamping Force Tonnage | 720 | 650.452 t |
| Barrel Code | AT | AT |
| Shot Volume (PS) | 102.3 oz | 2,900.2 g |
| Shot Volume (PE) | 81.1 oz | 2,299.1 g |
| Screw Diameter | 3.74" | 94.996 mm |
| Maximum Injection Pressure | 26100 psi | |
| Maximum Holding Pressure | 21800 psi | |
| Screw Speed STD | 140 rpm | 140 RPM |
| Screw Speed High Torque | 95 rpm | 95 RPM |
| Injection Rate STD | 1063 cm3/sec | 30.1 m³/min. |
| Screw Torque STD | 5500 NxM | 5500 NxM |
| Screw Torque High Speed | 7090 NxM | 7090 NxM |
| Plasticizing Capacity (PS) STD | 116.7 g/sec | 3,308.4 g |
| Plasticizing Capacity (PS) High Torque | 80.6 g/sec | 2,285 g |
| Nozzle Touch Force | 6.6 T | 5.987 t |
| Tie Bar Distance H | 41.7" | 1,059.2 mm |
| Tie Bar Distance V | 37.8" | 960.12 mm |
| Platen Dimension H | 59.1" | 1,501.1 mm |
| Platen Dimension V | 55.1" | 1,399.5 mm |
| Clamp Stroke | 39.4" | 1,000.8 mm |
| Maximum Daylight | 80.7" | 2,049.8 mm |
| Mold Height Min | 17.7" | 449.58 mm |
| Mold Height Max | 41.3" | 1,049 mm |
| Ejector Force | 19.8 T | 17.962 t |
| Ejector Stroke | 7.9" | 200.66 mm |
| Power supply Volts | 230 | 230 |
| Main Breaker Electric Capacity | 300 va | |
| Heater Capacity | 44.4 kw | 44.4 kW |
| Control | CNC (V70) | CNC (V70) |
| Dimensions | 31.8 x 8.2 x 8.6 Feet | 31.8 x 8.2 x 8.6 Feet |
| Weight | 44.1 US Ton | 44.1 US Ton |
