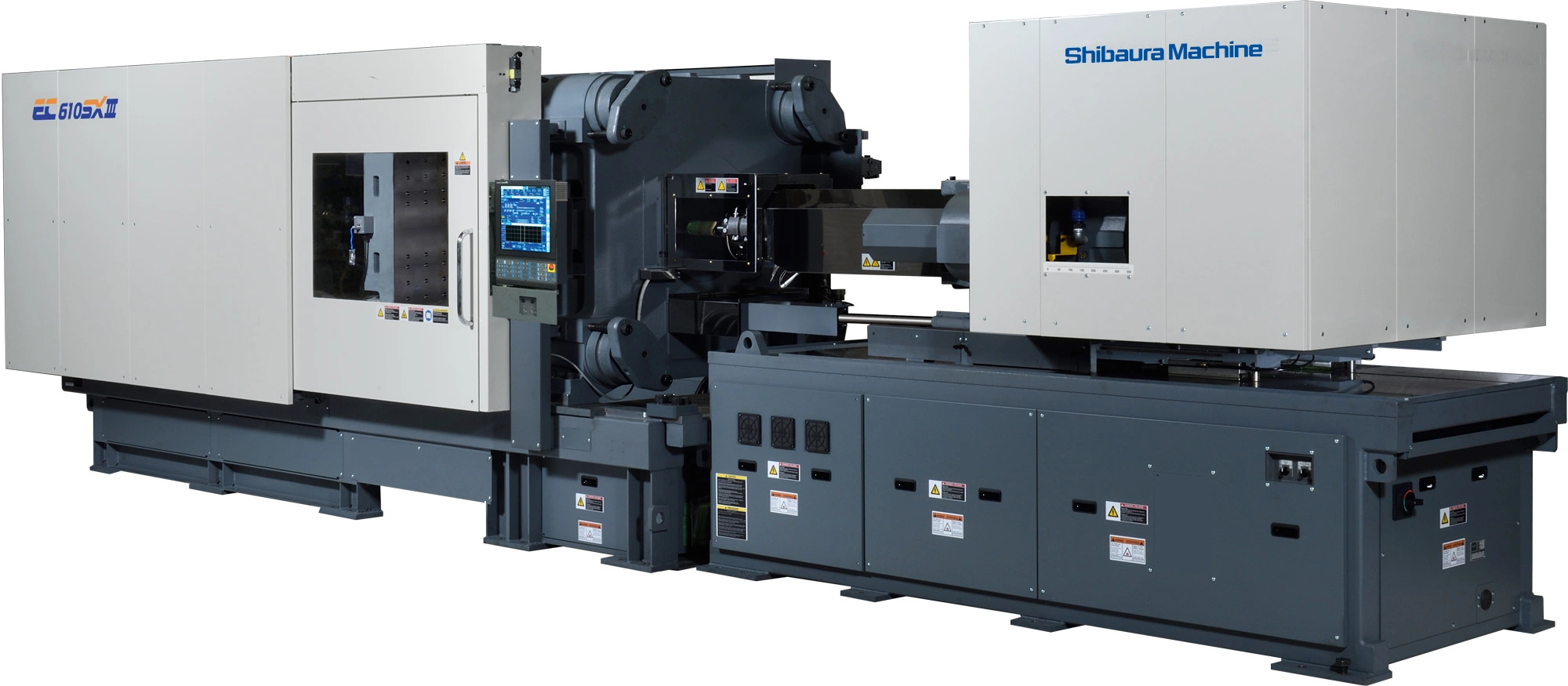

NEW Shibaura Machine EC610SXIIIV70-i26B
Overview
Description
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Specifications
| Type | All Electric | All Electric |
|---|---|---|
| Clamping Force Tonnage | 610 | 549.755 t |
| Barrel Code | B | B |
| Shot Volume (PS) | 56.8 oz | 1,610.3 g |
| Shot Volume (PE) | 45.2 oz | 1,281.4 g |
| Screw Diameter | 3.15" | 80.01 mm |
| Maximum Injection Pressure | 21000 psi | |
| Maximum Holding Pressure | 17600 psi | |
| Screw Speed STD | 170 rpm | 170 RPM |
| Screw Speed High Torque | 120 rpm | 120 RPM |
| Injection Rate STD | 804 cm3/sec | 22.8 m³/min. |
| Screw Torque STD | 2580 NxM | 2580 NxM |
| Screw Torque High Speed | 3310 NxM | 3310 NxM |
| Plasticizing Capacity (PS) STD | 94.4 g/sec | 2,676.2 g |
| Plasticizing Capacity (PS) High Torque | 63.9 g/sec | 1,811.5 g |
| Nozzle Touch Force | 5 T | 4.536 t |
| Tie Bar Distance H | 38.1" | 967.74 mm |
| Tie Bar Distance V | 35.8" | 909.32 mm |
| Platen Dimension H | 53.7" | 1,364 mm |
| Platen Dimension V | 51.2" | 1,300.5 mm |
| Clamp Stroke | 35.4" | 899.16 mm |
| Maximum Daylight | 74.8" | 1,899.9 mm |
| Mold Height Min | 15.7" | 398.78 mm |
| Mold Height Max | 39.4" | 1,000.8 mm |
| Ejector Force | 14.3 T | 12.973 t |
| Ejector Stroke | 7.1" | 180.34 mm |
| Power supply Volts | 230 | 230 |
| Main Breaker Electric Capacity | 200 va | |
| Heater Capacity | 26.5 kw | 26.5 kW |
| Control | CNC (V70) | CNC (V70) |
| Dimensions | 27.5 x 7.5 x 7.3 Feet | 27.5 x 7.5 x 7.3 Feet |
| Weight | 29.9 US Ton | 29.9 US Ton |
