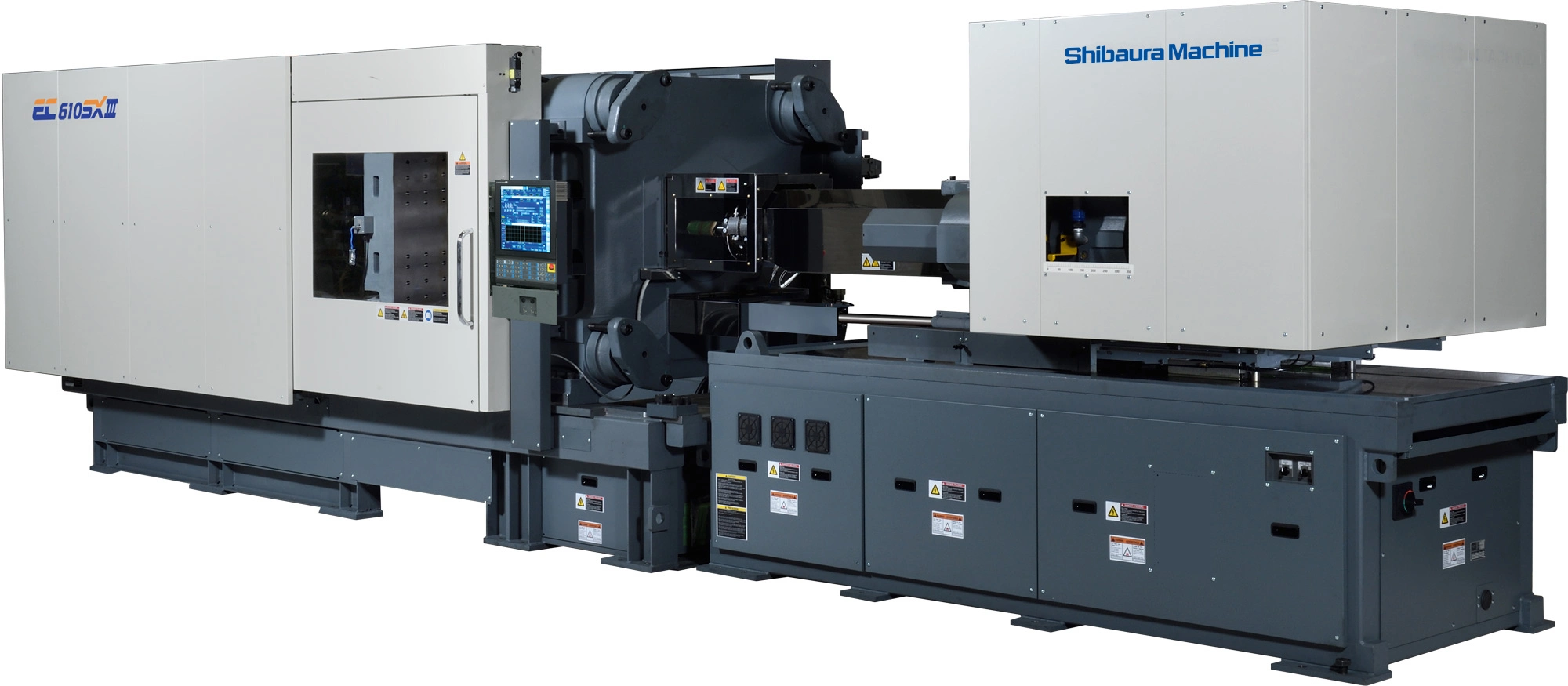

NEW Shibaura Machine EC610SXIIIV70-i17Y
Overview
Description
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Specifications
| Type | All Electric | All Electric |
|---|---|---|
| Clamping Force Tonnage | 610 | 549.755 t |
| Barrel Code | Y | Y |
| Shot Volume (PS) | 19.1 oz | 541.5 g |
| Shot Volume (PE) | 15.2 oz | 430.9 g |
| Screw Diameter | 1.97" | 50.038 mm |
| Maximum Injection Pressure | 41700 psi | |
| Maximum Holding Pressure | 41700 psi | |
| Screw Speed STD | 225 rpm | 225 RPM |
| Injection Rate STD | 314 cm3/sec | 8.9 m³/min. |
| Injection Rate High Speed | 589 cm3/sec | 16.7 m³/min. |
| Screw Torque STD | 1421 NxM | 1421 NxM |
| Plasticizing Capacity (PS) STD | 1.6 oz | 44.5 g |
| Nozzle Touch Force | 3.3 T | 2.994 t |
| Tie Bar Distance H | 38.1" | 967.74 mm |
| Tie Bar Distance V | 35.8" | 909.32 mm |
| Platen Dimension H | 53.7" | 1,364 mm |
| Platen Dimension V | 51.2" | 1,300.5 mm |
| Clamp Stroke | 35.4" | 899.16 mm |
| Maximum Daylight | 74.8" | 1,899.9 mm |
| Mold Height Min | 15.7" | 398.78 mm |
| Mold Height Max | 39.4" | 1,000.8 mm |
| Ejector Force | 14.3 T | 12.973 t |
| Ejector Stroke | 7.1" | 180.34 mm |
| Power supply Volts | 230 | 230 |
| Main Breaker Electric Capacity | 175 va | |
| Heater Capacity | 21.7 kw | 21.7 kW |
| Control | CNC (V70) | CNC (V70) |
| Dimensions | 27.3 x 7.5 x 7.3 Feet | 27.3 x 7.5 x 7.3 Feet |
| Weight | 29.0 US Ton | 29.0 US Ton |
