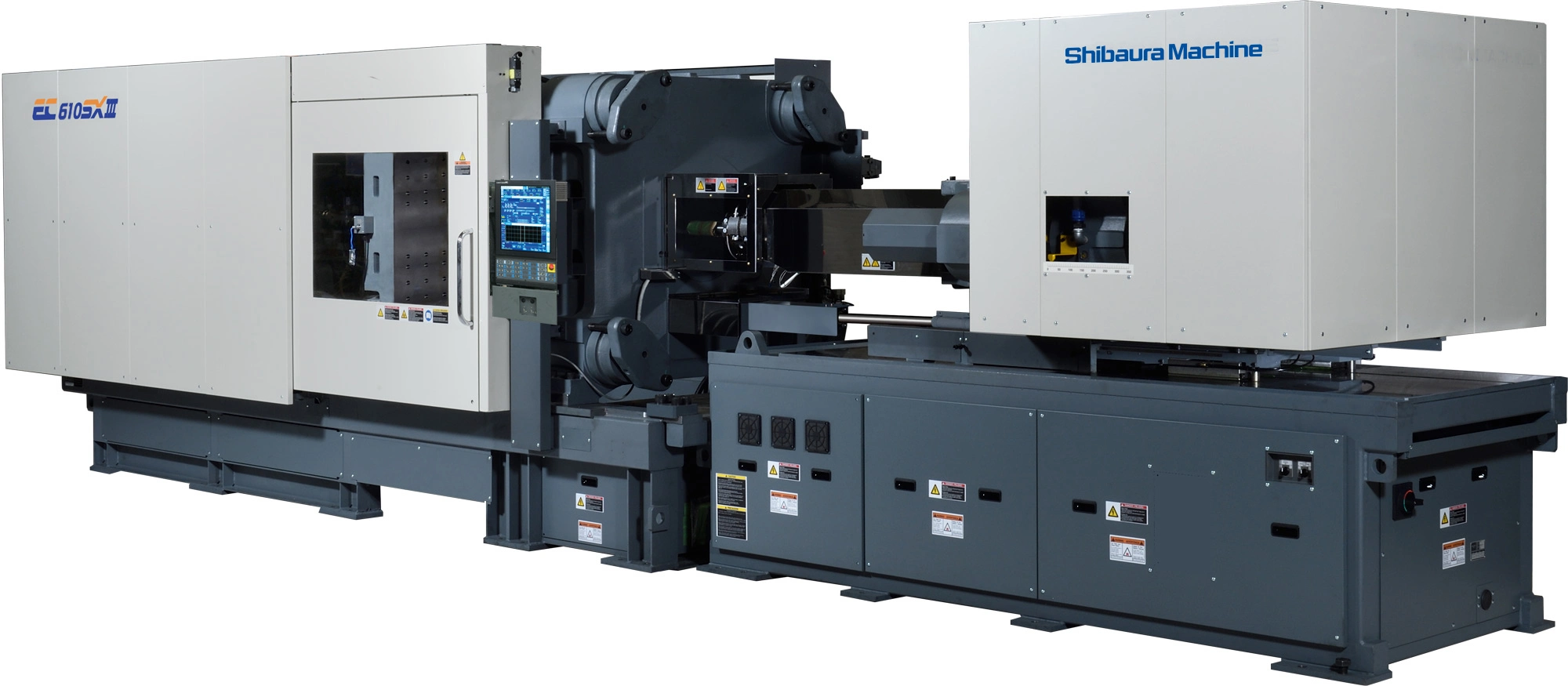

NEW Shibaura Machine EC610SXIIIV70-i17AT
Overview
Description
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Specifications
| Type | All Electric | All Electric |
|---|---|---|
| Clamping Force Tonnage | 610 | 549.755 t |
| Barrel Code | AT | AT |
| Shot Volume (PS) | 27.5 oz | 779.6 g |
| Shot Volume (PE) | 21.8 oz | 618 g |
| Screw Diameter | 2.36" | 59.944 mm |
| Maximum Injection Pressure | 29000 psi | |
| Maximum Holding Pressure | 29000 psi | |
| Screw Speed STD | 220 rpm | 220 RPM |
| Screw Speed High Torque | 180 rpm | 180 RPM |
| Injection Rate STD | 452 cm3/sec | 12.8 m³/min. |
| Injection Rate High Speed | 848 cm3/sec | 24 m³/min. |
| Screw Torque STD | 2360 NxM | 2360 NxM |
| Screw Torque High Speed | 2900 NxM | 2900 NxM |
| Plasticizing Capacity (PS) STD | 63.9 g/sec | 1,811.5 g |
| Plasticizing Capacity (PS) High Torque | 52.8 g/sec | 1,496.9 g |
| Nozzle Touch Force | 3.3 T | 2.994 t |
| Tie Bar Distance H | 38.1" | 967.74 mm |
| Tie Bar Distance V | 35.8" | 909.32 mm |
| Platen Dimension H | 53.7" | 1,364 mm |
| Platen Dimension V | 51.2" | 1,300.5 mm |
| Clamp Stroke | 35.4" | 899.16 mm |
| Maximum Daylight | 74.8" | 1,899.9 mm |
| Mold Height Min | 15.7" | 398.78 mm |
| Mold Height Max | 39.4" | 1,000.8 mm |
| Ejector Force | 14.3 T | 12.973 t |
| Ejector Stroke | 7.1" | 180.34 mm |
| Power supply Volts | 230 | 230 |
| Main Breaker Electric Capacity | 175 va | |
| Heater Capacity | 25.5 kw | 25.5 kW |
| Control | CNC (V70) | CNC (V70) |
| Dimensions | 27.3 x 7.5 x 7.3 Feet | 27.3 x 7.5 x 7.3 Feet |
| Weight | 29.0 US Ton | 29.0 US Ton |
