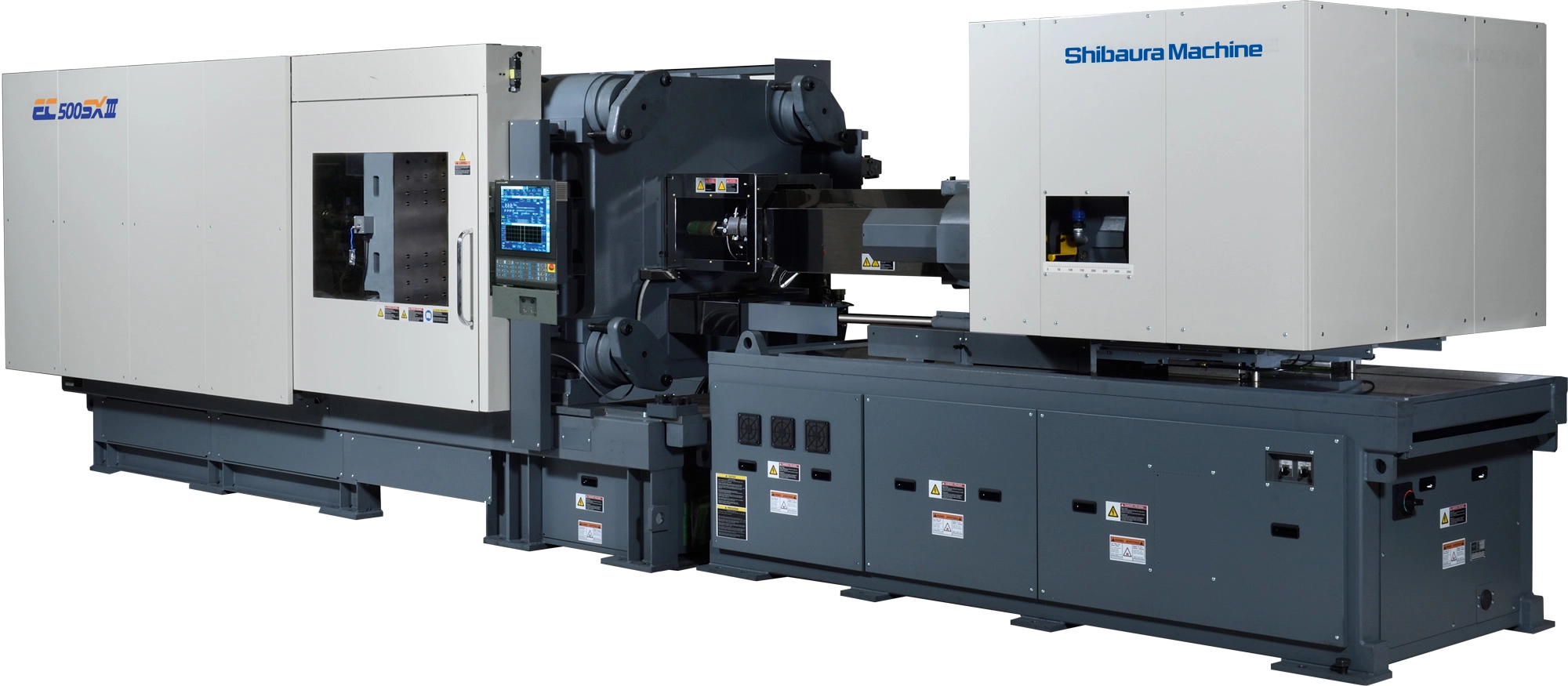

NEW Shibaura Machine EC500SXIIIV70-i36 Y
Overview
Description
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Specifications
| Type | All Electric | All Electric |
|---|---|---|
| Clamping Force Tonnage | 500 | 449.964 t |
| Barrel Code | Y | Y |
| Shot Volume (PS) | 46.5 oz | 1,318.3 g |
| Shot Volume (PE) | 36.7 oz | 1,040.4 g |
| Screw Diameter | 2.76" | 70.104 mm |
| Maximum Injection Pressure | 34300 psi | |
| Maximum Holding Pressure | 28800 psi | |
| Screw Speed STD | 180 rpm | 180 RPM |
| Injection Rate STD | 537 cm3/sec | 15.2 m³/min. |
| Screw Torque STD | 3310 NxM | 3310 NxM |
| Plasticizing Capacity (PS) STD | 72.2 g/sec | 2,046.8 g |
| Nozzle Touch Force | 6.6 T | 5.987 t |
| Tie Bar Distance H | 34.2" | 868.68 mm |
| Tie Bar Distance V | 31.8" | 807.72 mm |
| Platen Dimension H | 48.4" | 1,229.4 mm |
| Platen Dimension V | 45.7" | 1,160.8 mm |
| Clamp Stroke | 31.5" | 800.1 mm |
| Maximum Daylight | 70.9" | 1,800.9 mm |
| Mold Height Min | 13.8" | 350.52 mm |
| Mold Height Max | 39.4" | 1,000.8 mm |
| Ejector Force | 14.3 T | 12.973 t |
| Ejector Stroke | 7.1" | 180.34 mm |
| Power supply Volts | 230 | 230 |
| Main Breaker Electric Capacity | 200 va | |
| Heater Capacity | 29.8 kw | 29.8 kW |
| Control | CNC (V70) | CNC (V70) |
| Dimensions | 26.6 x 7.0 x 7.2 Feet | 26.6 x 7.0 x 7.2 Feet |
| Weight | 26.4 US Ton | 26.4 US Ton |
