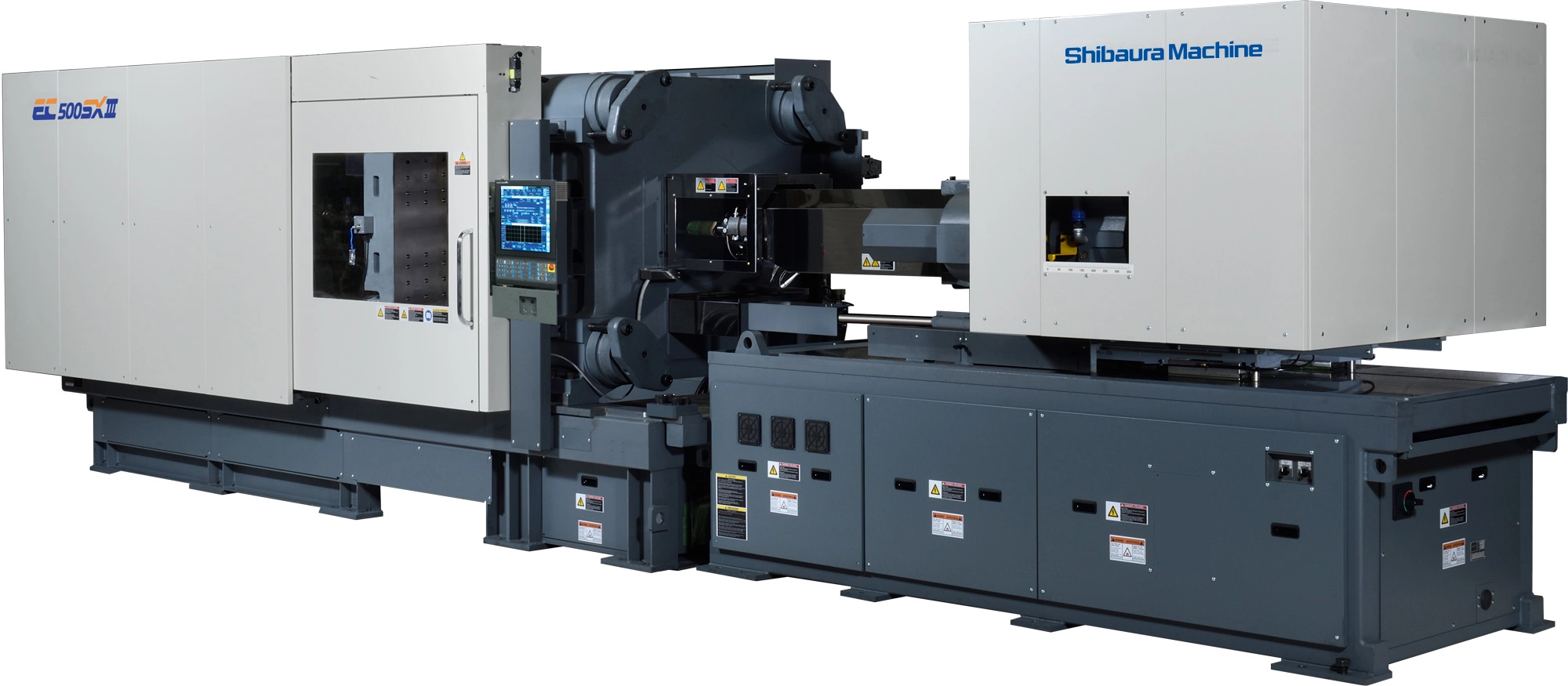

NEW Shibaura Machine EC500SXIIIV70-i36B
Overview
Description
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Specifications
| Type | All Electric | All Electric |
|---|---|---|
| Clamping Force Tonnage | 500 | 449.964 t |
| Barrel Code | B | B |
| Shot Volume (PS) | 77.3 oz | 2,191.4 g |
| Shot Volume (PE) | 61.4 oz | 1,740.7 g |
| Screw Diameter | 3.54" | 89.916 mm |
| Maximum Injection Pressure | 21800 psi | |
| Maximum Holding Pressure | 18300 psi | |
| Screw Speed STD | 150 rpm | 150 RPM |
| Screw Speed High Torque | 115 rpm | 115 RPM |
| Injection Rate STD | 891 cm3/sec | 25.2 m³/min. |
| Screw Torque STD | 3310 NxM | 3310 NxM |
| Screw Torque High Speed | 4610 NxM | 4610 NxM |
| Plasticizing Capacity (PS) STD | 111.1 g/sec | 3,149.6 g |
| Plasticizing Capacity (PS) High Torque | 77.8 g/sec | 2,205.6 g |
| Nozzle Touch Force | 6.6 T | 5.987 t |
| Tie Bar Distance H | 34.2" | 868.68 mm |
| Tie Bar Distance V | 31.8" | 807.72 mm |
| Platen Dimension H | 48.4" | 1,229.4 mm |
| Platen Dimension V | 45.7" | 1,160.8 mm |
| Clamp Stroke | 31.5" | 800.1 mm |
| Maximum Daylight | 70.9" | 1,800.9 mm |
| Mold Height Min | 13.8" | 350.52 mm |
| Mold Height Max | 39.4" | 1,000.8 mm |
| Ejector Force | 14.3 T | 12.973 t |
| Ejector Stroke | 7.1" | 180.34 mm |
| Power supply Volts | 230 | 230 |
| Main Breaker Electric Capacity | 200 va | |
| Heater Capacity | 34.3 kw | 34.3 kW |
| Control | CNC (V70) | CNC (V70) |
| Dimensions | 28.0 x 7.0 x 7.2 Feet | 28.0 x 7.0 x 7.2 Feet |
| Weight | 26.4 US Ton | 26.4 US Ton |
