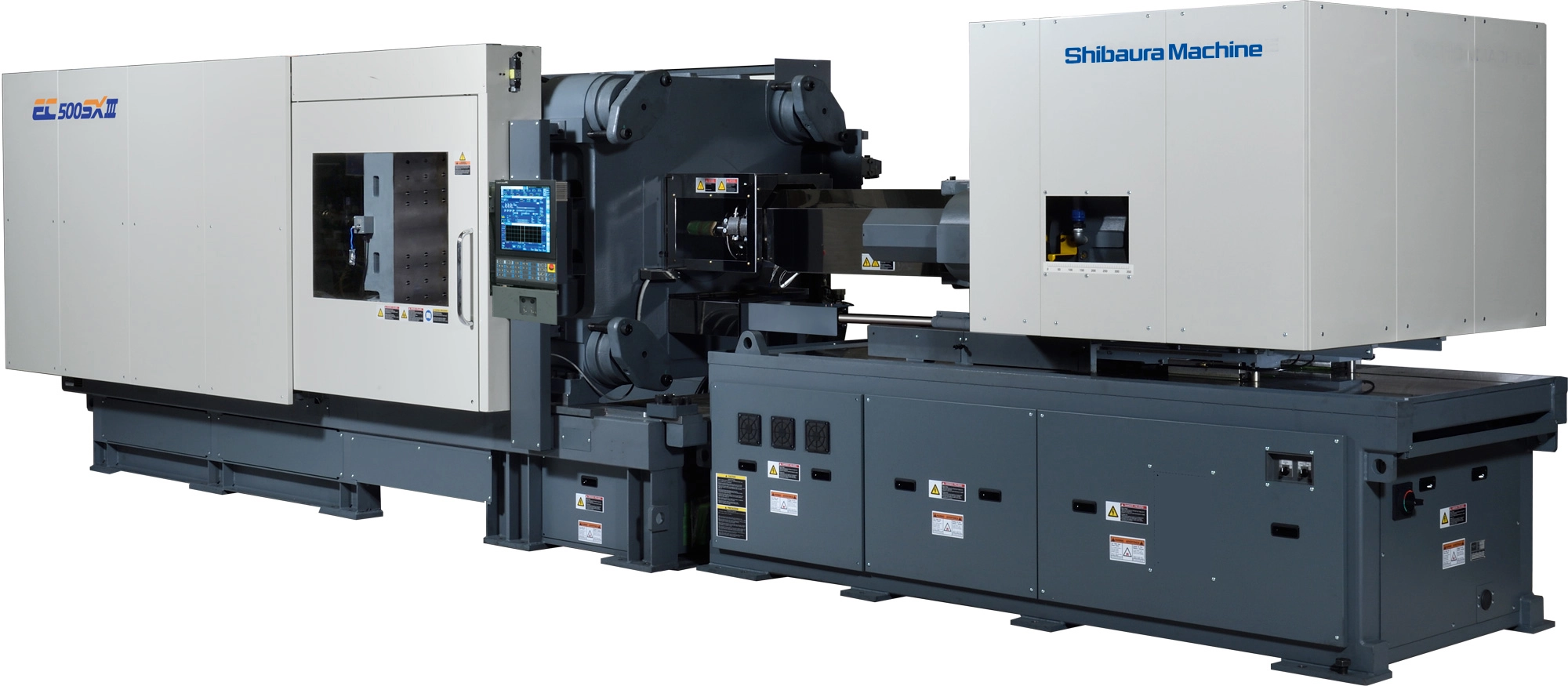

NEW Shibaura Machine EC500SXIIIV70-i26 Y
Overview
Description
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Specifications
| Type | All Electric | All Electric |
|---|---|---|
| Clamping Force Tonnage | 500 | 449.964 t |
| Barrel Code | Y | Y |
| Shot Volume (PS) | 31.9 oz | 904.3 g |
| Shot Volume (PE) | 25.4 oz | 720.1 g |
| Screw Diameter | 2.36" | 59.944 mm |
| Maximum Injection Pressure | 37400 psi | |
| Maximum Holding Pressure | 31400 psi | |
| Screw Speed STD | 210 rpm | 210 RPM |
| Injection Rate STD | 452 cm3/sec | 12.8 m³/min. |
| Screw Torque STD | 2580 NxM | 2580 NxM |
| Plasticizing Capacity (PS) STD | 61.2 g/sec | 1,735 g |
| Nozzle Touch Force | 5 T | 4.536 t |
| Tie Bar Distance H | 34.2" | 868.68 mm |
| Tie Bar Distance V | 31.8" | 807.72 mm |
| Platen Dimension H | 48.4" | 1,229.4 mm |
| Platen Dimension V | 45.7" | 1,160.8 mm |
| Clamp Stroke | 31.5" | 800.1 mm |
| Maximum Daylight | 70.9" | 1,800.9 mm |
| Mold Height Min | 13.8" | 350.52 mm |
| Mold Height Max | 39.4" | 1,000.8 mm |
| Ejector Force | 14.3 T | 12.973 t |
| Ejector Stroke | 7.1" | 180.34 mm |
| Power supply Volts | 230 | 230 |
| Main Breaker Electric Capacity | 200 va | |
| Heater Capacity | 22.3 kw | 22.3 kW |
| Control | CNC (V70) | CNC (V70) |
| Dimensions | 26.5 x 7.0 x 7.3 Feet | 26.5 x 7.0 x 7.3 Feet |
| Weight | 24.9 US Ton | 24.9 US Ton |
