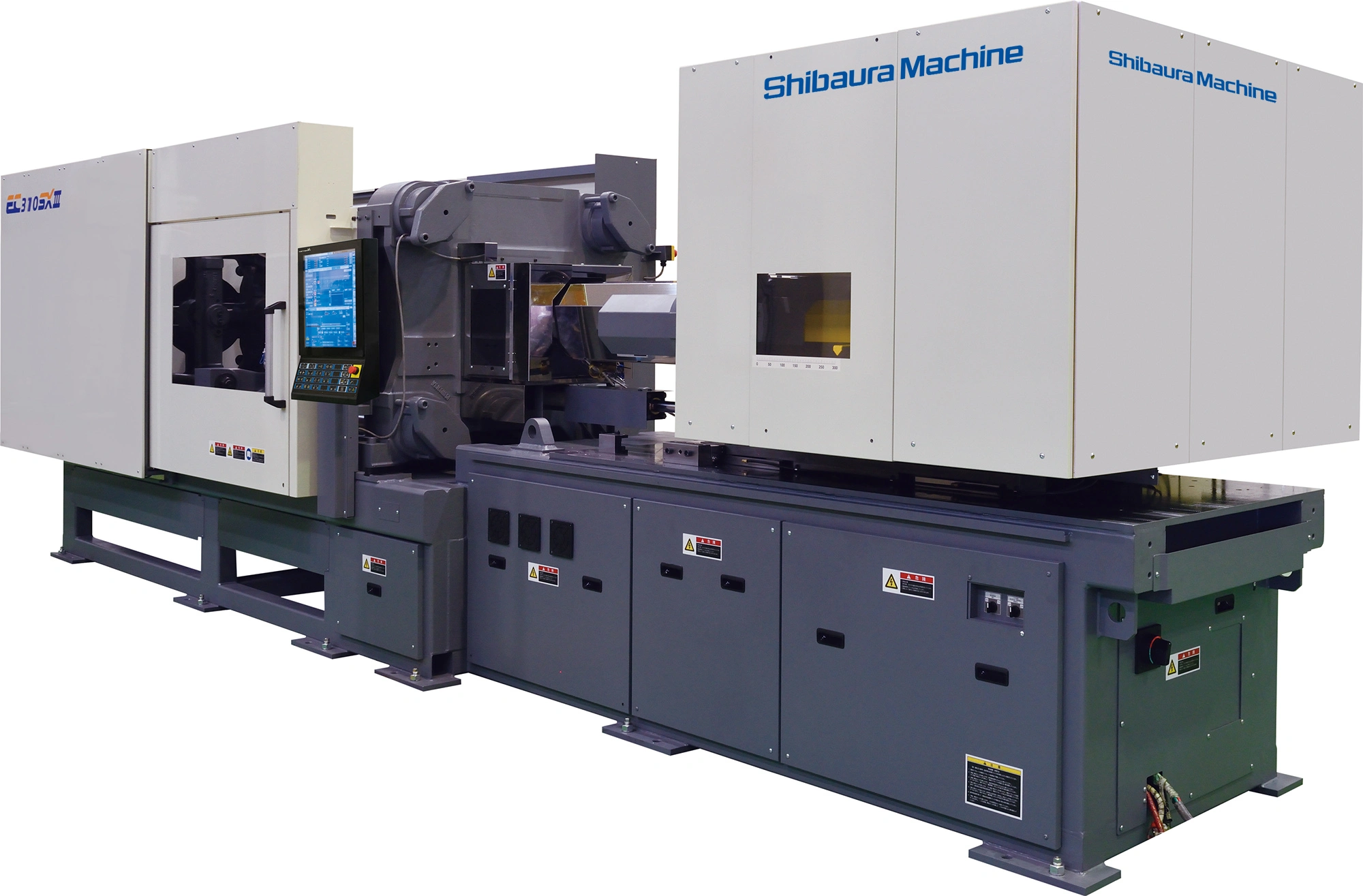

NEW Shibaura Machine EC310SXIIIV70-i17 AT
Overview
Description
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Specifications
| Type | All Electric | All Electric |
|---|---|---|
| Clamping Force Tonnage | 310US Tons | 279.413 t |
| Barrel Code | AT | AT |
| Shot Volume (PS) | 27.5 oz | 779.6 g |
| Shot Volume (PE) | 21.8 oz | 618 g |
| Screw Diameter | 2.36" | 59.944 mm |
| Maximum Injection Pressure | 29000 psi | |
| Maximum Holding Pressure | 29000 psi | |
| Screw Speed STD | 220 rpm | 220 RPM |
| Injection Rate STD | 452 cm3/sec | 12.8 m³/min. |
| Injection Rate High Speed | 848 cm3/sec | 24 m³/min. |
| Screw Torque STD | 2360 NxM | 2360 NxM |
| Plasticizing Capacity (PS) STD | 63.9 g/sec | 1,811.5 g |
| Nozzle Touch Force | 3.3 T | 2.994 t |
| Tie Bar Distance H | 28.7" | 728.98 mm |
| Tie Bar Distance V | 26" | 660.4 mm |
| Platen Dimension H | 40.6" | 1,031.2 mm |
| Platen Dimension V | 37.8" | 960.12 mm |
| Clamp Stroke | 23.6" | 599.44 mm |
| Maximum Daylight | 53.1" | 1,348.7 mm |
| Mold Height Min | 9.8" | 248.92 mm |
| Mold Height Max | 29.5" | 749.3 mm |
| Ejector Force | 6.6 T | 5.987 t |
| Ejector Stroke | 5.9" | 149.86 mm |
| Main Breaker Electric Capacity | 61 kva | |
| Heater Capacity | 25.5 kw | 25.5 kW |
| Injection Orientation | Horz | Horz |
| Dimensions | 22.8 x 6.4 x 7.1 Feet | 22.8 x 6.4 x 7.1 Feet |
| Weight | 15.2 US Tons | 15.2 US Tons |
