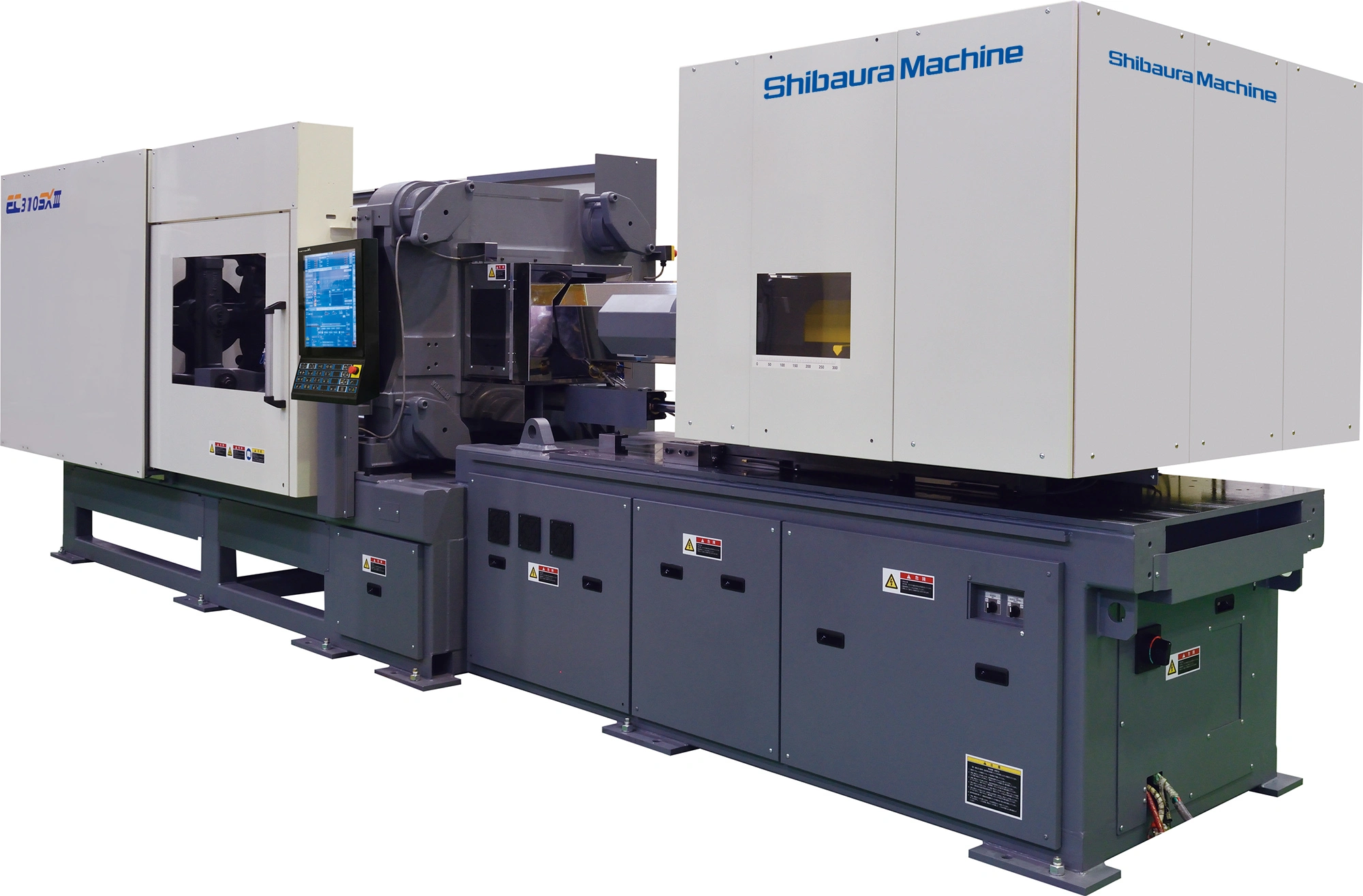

NEW Shibaura Machine EC310SXIIIV70-i10Y
Overview
Description
In 2010, Shibaura Machine revolutionized injection molding with the ECSX series of all-electrics. The powerhouse of injection molding, it not only gave molders faster dry cycle times, longer mold life and more uniform clamping force, but more shot sizes from a single machine and the most advanced controller on the market
Specifications
| Type | All Electric | All Electric |
|---|---|---|
| Clamping Force Tonnage | 310 | 279.413 t |
| Barrel Code | Y | Y |
| Shot Volume (PS) | 12.9 oz | 365.7 g |
| Shot Volume (PE) | 10.2 oz | 289.2 g |
| Screw Diameter | 1.77" | 44.958 mm |
| Maximum Injection Pressure | 35800 psi | |
| Maximum Holding Pressure | 35800 psi | |
| Screw Speed STD | 285 rpm | 285 RPM |
| Injection Rate STD | 254 cm3/sec | 7.2 m³/min. |
| Injection Rate High Speed | 556 cm3/sec | 15.7 m³/min. |
| Screw Torque STD | 1058 NxM | 1058 NxM |
| Plasticizing Capacity (PS) STD | 33.3 g/sec | 944 g |
| Nozzle Touch Force | 3.3 T | 2.994 t |
| Tie Bar Distance H | 28.7" | 728.98 mm |
| Tie Bar Distance V | 26" | 660.4 mm |
| Platen Dimension H | 40.6" | 1,031.2 mm |
| Platen Dimension V | 37.8" | 960.12 mm |
| Clamp Stroke | 223.6" | 5,679.4 mm |
| Maximum Daylight | 53.1" | 1,348.7 mm |
| Mold Height Min | 9.8" | 248.92 mm |
| Mold Height Max | 29.5" | 749.3 mm |
| Ejector Force | 6.6 T | 5.987 t |
| Ejector Stroke | 5.9" | 149.86 mm |
| Main Breaker Electric Capacity | 61 kva | |
| Heater Capacity | 15.2 kw | 15.2 kW |
| Control | CNC (V70) | CNC (V70) |
| Dimensions | 22.0 x 6.4 x 7.1 Feet | 22.0 x 6.4 x 7.1 Feet |
| Weight | 13.7 US Ton | 13.7 US Ton |
